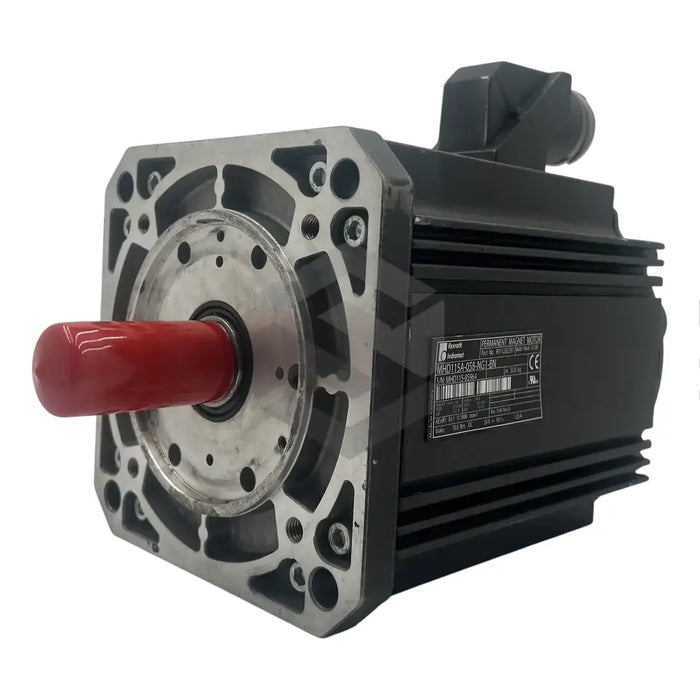

C image of MHD115A-058-NG1-BN | Main (Front Left)

MHD115A-058-NG1-BN

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
The MHD115A-058-NG1-BN is a superior synchronous motor produced by industrial automation specialist, Bosch Rexroth Indramat. Designed for controlling the speed and placement of industrial assembly line machinery, this model is equipped for highly dynamic environments. Its advanced design promotes a longer mechanical service life and a low rotor inertia, making it ideal for start-stop applications. Operating efficiently at overtemperatures of 60K and 100K, it offers consistent torque and current. The motor features a torque constant of 0.98 Nm/A, a winding resistance of 0.21 ohms, and a winding inductivity of 2.88 mH. Its four pole pairs can reach a maximum speed of 6000 rpm at the output shaft and a rated speed of 2000 rpm, while offering a maximum theoretical torque of 110 Nm. Safe for transportation and storage between -20° and 80°C, the motor operates best between 0° and 40°C.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Model

MHD115A-058-NG1-BN

Product Type

Synchronous Motor

Maximum Overtemperature

100K

Continuous Torque at 60K

32 Nm

Continuous Current at 60K

36.6 A

Peak Current

164.7 A

Continuous Torque at 100K

36.5 Nm

Continuous Current at 100K

42.1 A

Torque Constant

0.98 Nm/A

Winding Resistance

0.21 ohms

Winding Inductivity

2.88 mH

Number of Pole Pairs

4

Rotor Moment of Inertia

Low

Maximum Speed

6000rpm

Rated Motor Speed

2000rpm

Transport and Storage Temperature

-20 °C to 80 °C

Operating Temperature

0 °C to 40 °C

Theoretical Maximum Torque

110 Nm.
