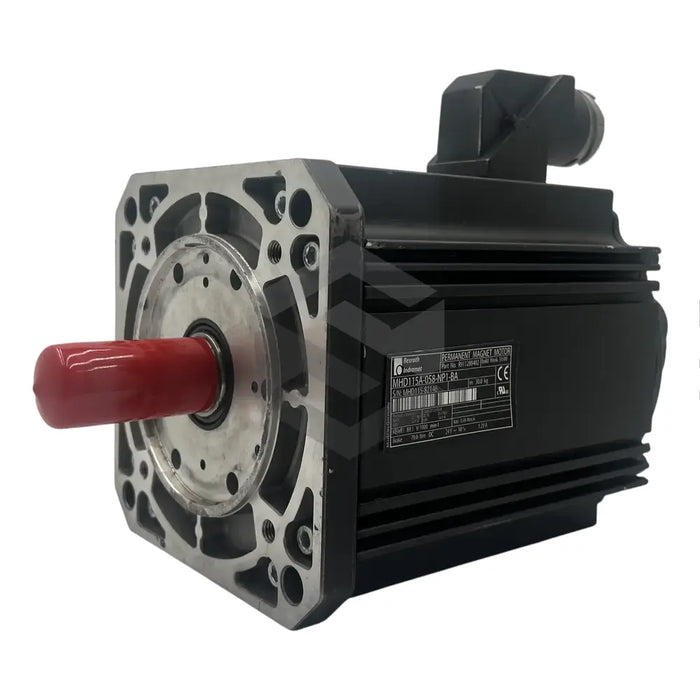

C image of MHD115A-058-NP1-BA | Main (Front Left)

MHD115A-058-NP1-BA

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
The MHD115A-058-NP1-BA, crafted by Bosch Rexroth Indramat, is a synchronous motor that facilitates both electric and electronic commutation. Equipped with permanent magnets in its rotor that are made of special magnetic materials, it adheres to the B05 design under DIN 42950 specifications. Installation involves crane lifting with sling belts and mechanical mounting, along with securing M12 size screws with 87Nm torque. The unit comes maintenance-free, featuring a brushless design and grease-lubricated bearings that last its entire service lifespan. The motor exhibits 7.1Nm rated torque and 133Hz rated frequency at 60K with natural convection. It relies on a power connector with a bayonet lock, and all electrical connections must comply with the manufacturer's circuit diagram. Bearings replacements and routine damage inspections of connection lines are service team responsibilities. Primarily used in machine tools, this unit is backed by a one-year support and can be shipped globally.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

MHD Type

Synchronous Motor

Commutation

Electric and Electronic

Materials

Special Magnetic Materials

Size Code

115

Transportation Method

Cranes with Lifting Sling Belts

Compliance

B05 Design accordance with DIN 42950

Flange Attachment

M12 Size Screws with a Tightening Torque of 87Nm

Service Life

Maintenance Free

Design

Brushless and Grease-Lubricated Bearings

Rated Torque

7.1Nm

Rated Frequency

133Hz

Power Connector

Bayonet Lock

Housing Design

O-Ring Fitted Between Housing and Flange Socket

Compatibility

Not to be used with a Drive Controller from Other Manufacturers

Regular Maintenace

Connection Lines Must be Checked for Damage

Main Application

Machine Tools
