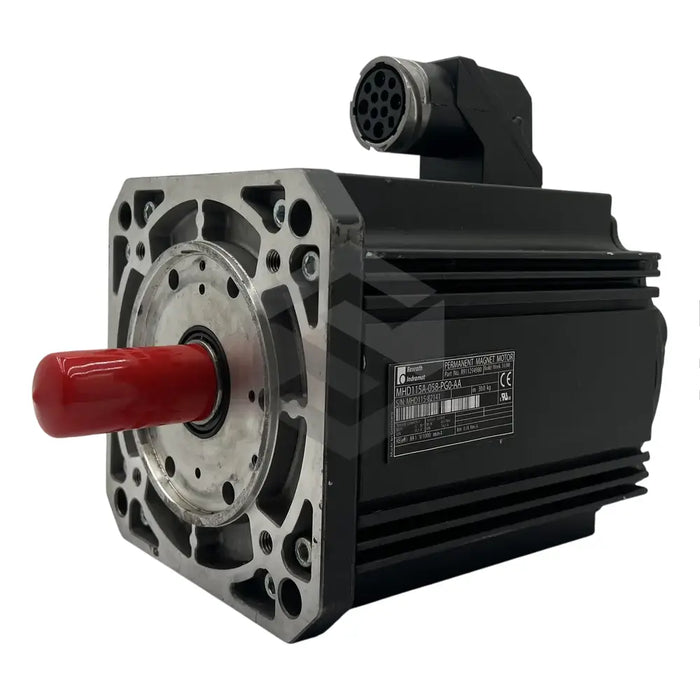

C image of MHD115A-058-PG0-AA | Main (Front Left)

MHD115A-058-PG0-AA

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
Bosch Rexroth Indramat's MHD115A-058-PG0-AA synchronous motor features a maximum theoretical torque of 110Nm and temperature monitoring capability for overload protection. It has no holding brake and must be kept in its initial state without hardware modifications. The motor is intended for operation only with manufacturer-approved parts and should not be used in highly variable temperatures. The motor, which requires correct installation, storage, and transportation, also demands a ground wire connection check before power supply activation. It uses digital servo feedback with an integrated multi-turn absolute encoder and a plain output shaft. It has a 2.88mH winding inductivity, a maximum installation height of 1000m above sea level, and a robust torque-to-inertia mass ratio. The product's motor bearing complies with ISO 281 specifications for a service life of 30,000 operating hours, provided the axial and radial load limits are met. The motor also has a data memory in the encoder electronics, which stores the motor type name and parameters.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

MHD115A-058-PG0-AA Properties

Synchronous motor, No holding brake, No hardware modification allowed, Operable only with approved spare parts and accessories, Temperature monitored overload protection, Various cable set designs

Maximum Torque

110Nm

Optimal Usage Conditions

Fixed original state, Proper installation, mounting, storage, and transportation

Motor Check Requirement

Permanent connection of ground wire

Electrical Safety

Do not touch electrical connection points when switched on

Power Connector Output Direction

A side

Feedback Mechanism

Digital servo with integrated multi-turn absolute encoder

Winding Inductivity

2.88mH

Output Shaft

Plain

Maximum Setup Height

1000m above sea level

Dynamics

Favorable torque to inertia mass ratio

Motor Bearing Service Life

30,000 operating hours (ISO 281 specifications)

Axial and Radial Load Limits

Must be operated within specified limits

Encoder Electronics

Data memory with motor type name and parameters

Shipping Method

Reputed freight carriers
