MHD115A-058-PG0-BA

Original price $0.00 - Original price $0.00
Original price
Request a Quote
$0.00 - $0.00
Current price Request a Quote

Request a quote

Add a Message

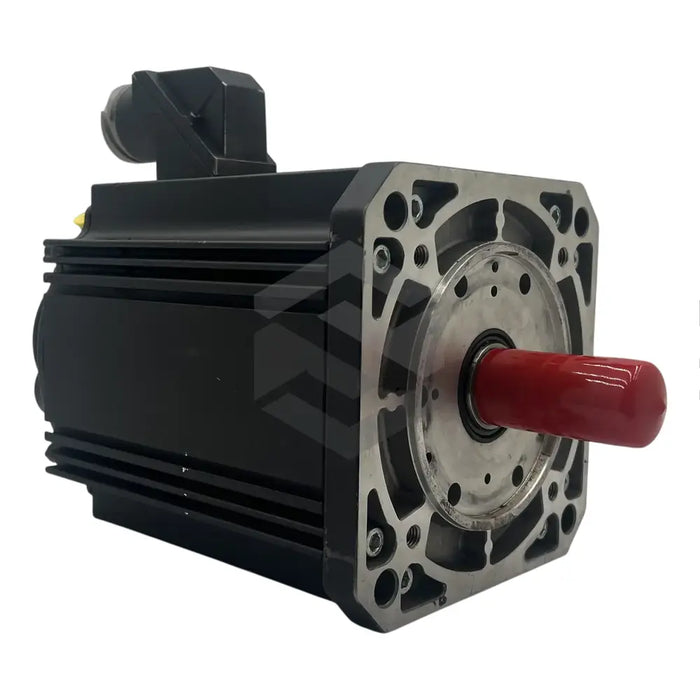

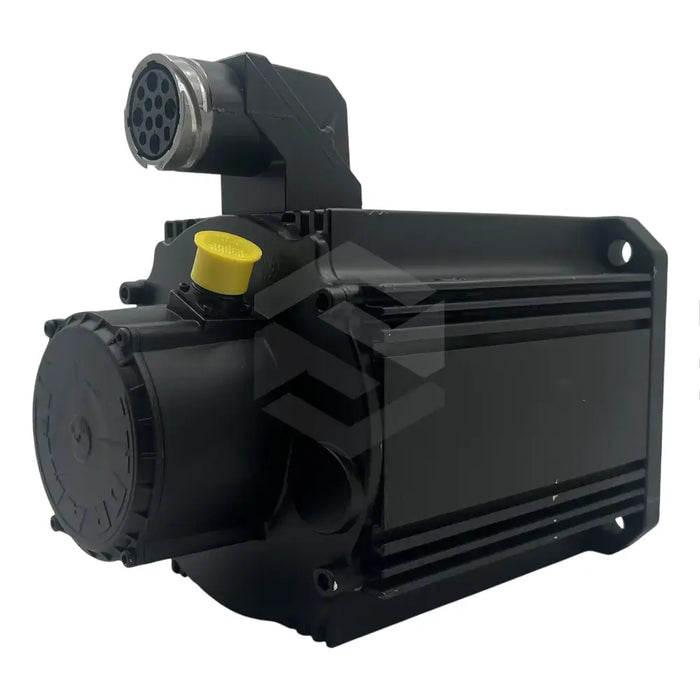

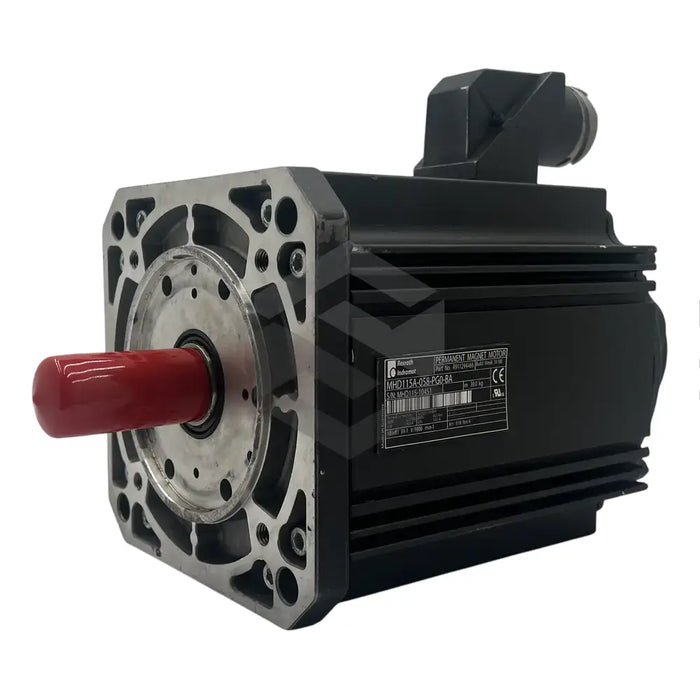

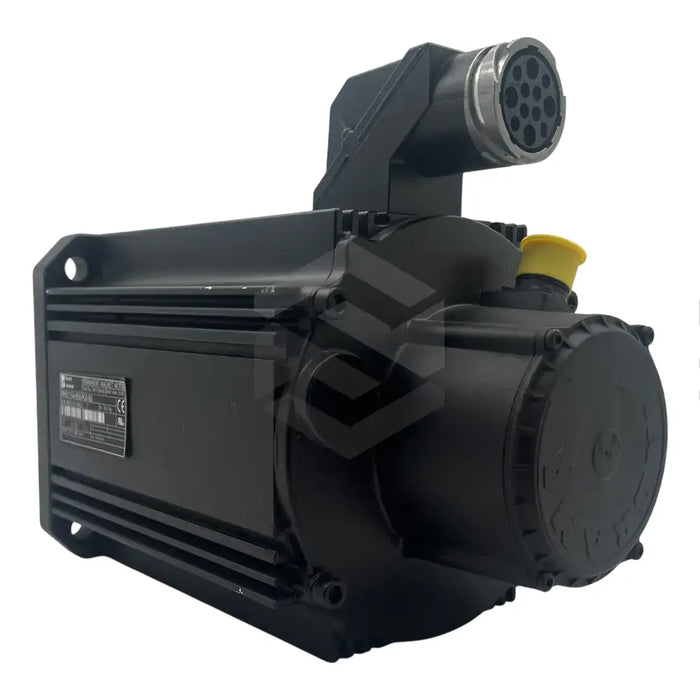

The MHD115A-058-PG0-BA synchronous motor is a high-performing product from Bosch Rexroth Indramat. Well-known for its high overload capacity, this motor supports a wide speed range due to its electronic commutation. It displays a 058 winding code and a peak current rating of 164.7A. For optimum performance, the motor should be stored and transported in a dry, horizontal position. With a continuous torque of 32Nm and a continuous current of 36.6A at 60K, it is designed for efficient operation when using natural convection cooling. It upholds Class F insulation as per DIN VDE 0530, Part 1 norms. It can function in continuous start-stop operations due to electrical commutation, and supports easy startup with its built-in data memory. The MHD115A-058-PG0-BA motor is perfect for automation and handling systems. It comes with a one-year support and can be delivered worldwide.

Contact Us

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer


Bosch Rexroth Indramat

Product Code


MHD115A-058-PG0-BA

Motor Type


Synchronous Motor

High Overload Capability


Yes

Winding Code


058

Peak Current Rating


164.7A

Storage Orientation


Horizontal

Operating Temperature


-20°C to 80°C

Installation Environment


Dry and Clean

Shaft and Flange Protection


Plastic Protective Sleeve

Continuous Torque


32Nm

Continuous Current


36.6A at 60K, Natural Convection Cooling Mode

Insulation


Class F, DIN VDE 0530, Part 1

Start-Stop Operation


Continuous, High Repeat Frequencies

Startup


Simple and Quick, Data Memory in Encoder

Application


Automation and Handling Systems

Shipping


Worldwide
