MHD115B-024-NP0-LA

Original price $23,236.88 - Original price $23,236.88
Original price
$23,236.88
$23,236.88 - $23,236.88
Current price $23,236.88
In Stock, Ships Today
Request a quote

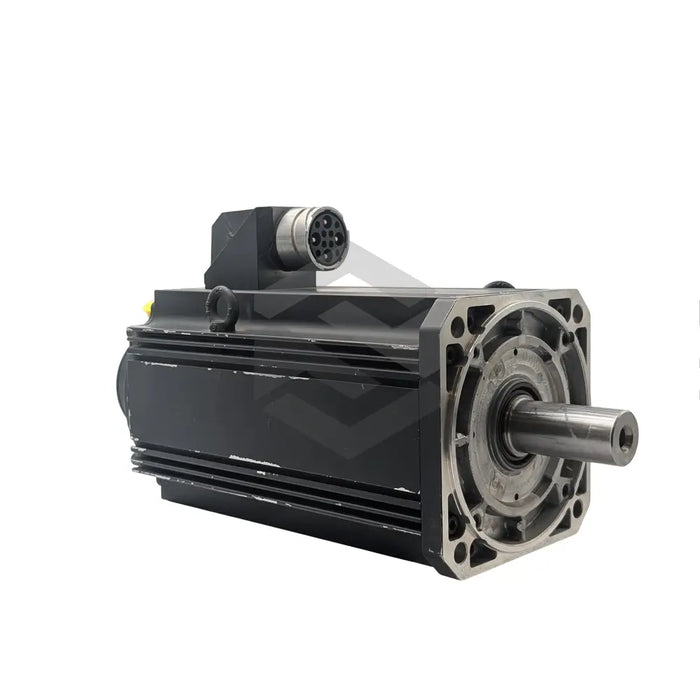

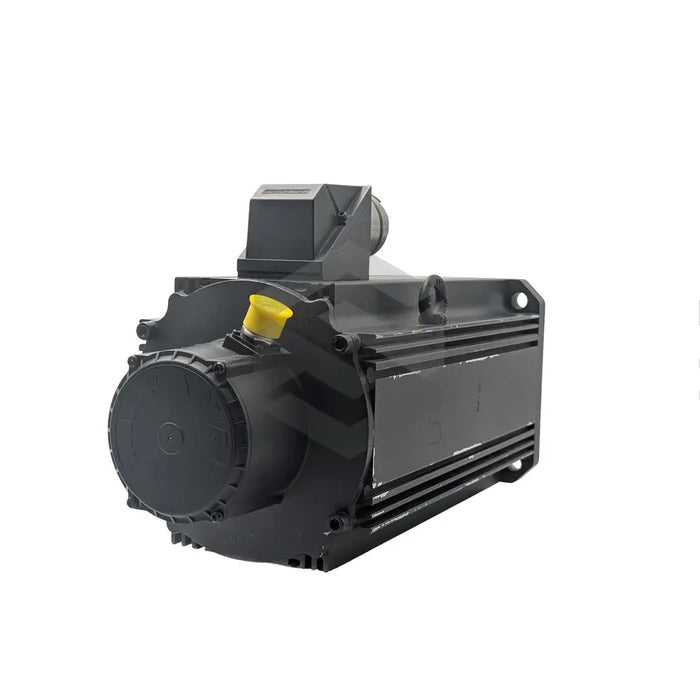

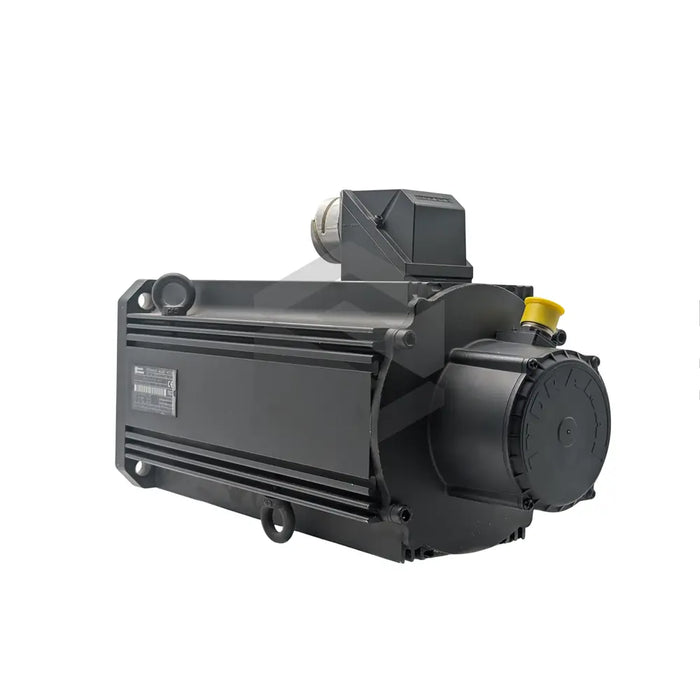

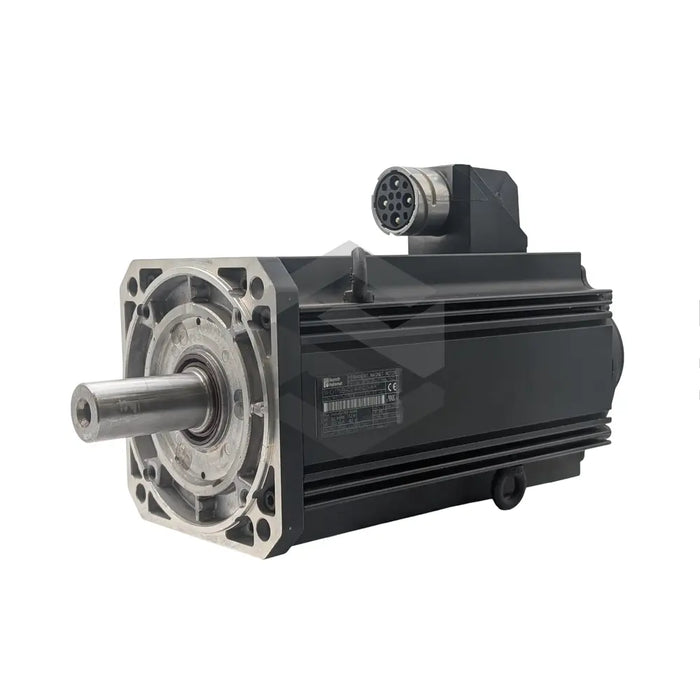

The MHD115B-024-NP0-LA, produced by Bosch Rexroth Indramat, is a trusted synchronous motor recognized for its versatile use in industrial drive control systems. Tailored to specific user requirements, this model from the renowned MHD series specializes in precise position control applications. Engineered with superior components and bearings designed to withstand extra radial and axial loads, the MHD115B-024-NP0-LA enhances mechanical service life. Applicable to a variety of machinery, such as woodworking, paper manufacturing, and printing machines, this motor performs optimally in a wide range of ambient conditions. Constructed with an IP 65 standard protective enclosure, it prevents the entry of dust, debris, emulsions, oils, and non-corrosive particles. With a peak current of 145 A, the MHD115B-024-NP0-LA features a maximum theoretical torque of 160 Nm, a rated speed of 2000 rpm, and class F insulation materials built to withstand high temperatures.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Type: Synchronous motor
  • Model: MHD115B-024-NP0-LA
  • Series: MHD
  • Suitable for Applications: Machine tools, Woodworking machines, Paper manufacturing machines, Paper printing machines, and other similar equipment.
  • Ambient Conditions: 0 °C to 40 °C
  • Maximum Installation Height: 1000 meters above sea level
  • Outer Enclosure Protection: IP 65 standard
  • Theoretical Maximum Torque: 160 Nm
  • Insulation class: F
  • Rated Speed: 2000 rpm
  • Peak Current: 145 A
