MHD115B-024-NP1-BA

Original price $9,653.70 - Original price $9,653.70
Original price
$9,653.70
$9,653.70 - $9,653.70
Current price $9,653.70
In Stock, Ships 3 - 5 Days

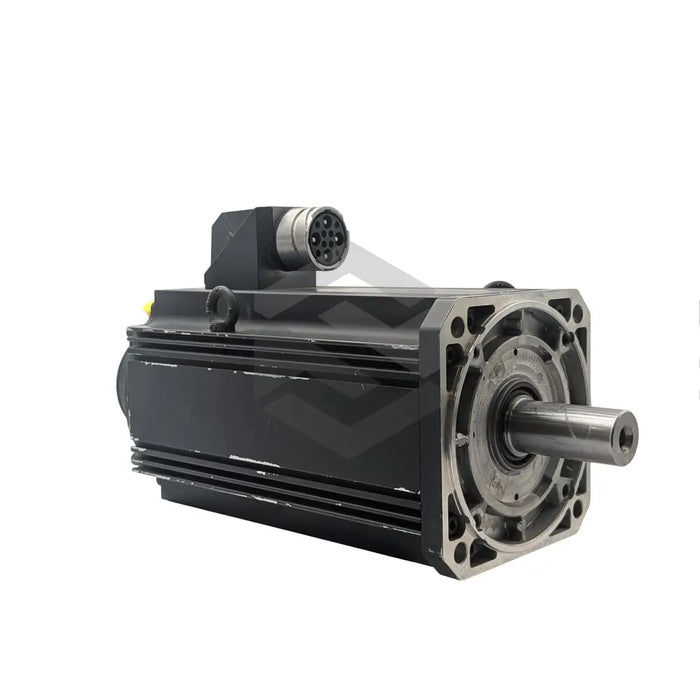

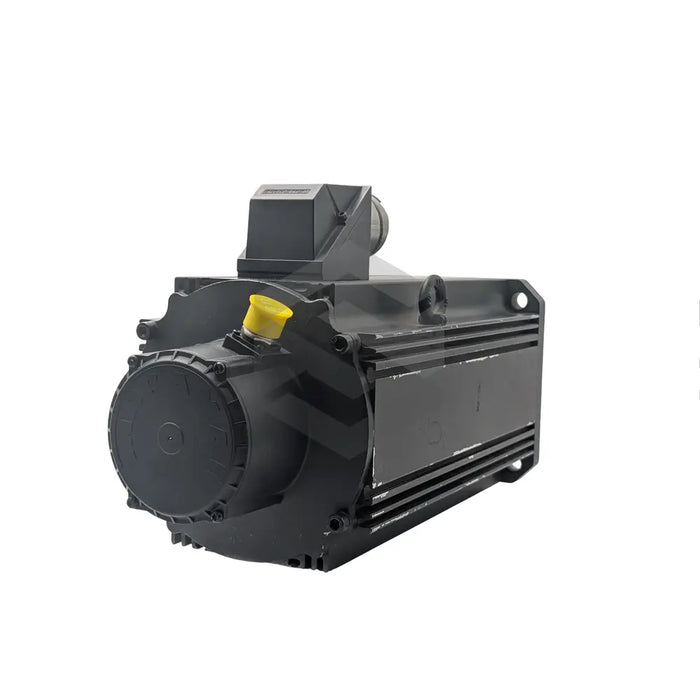

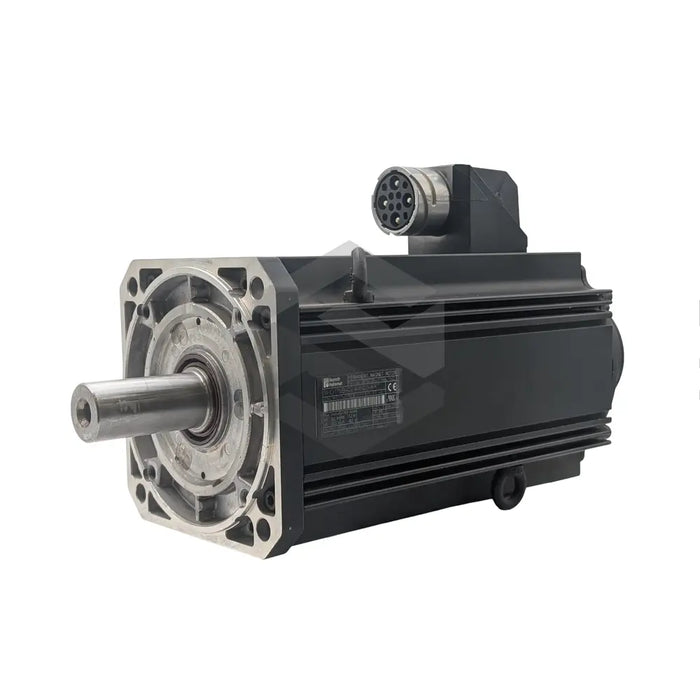

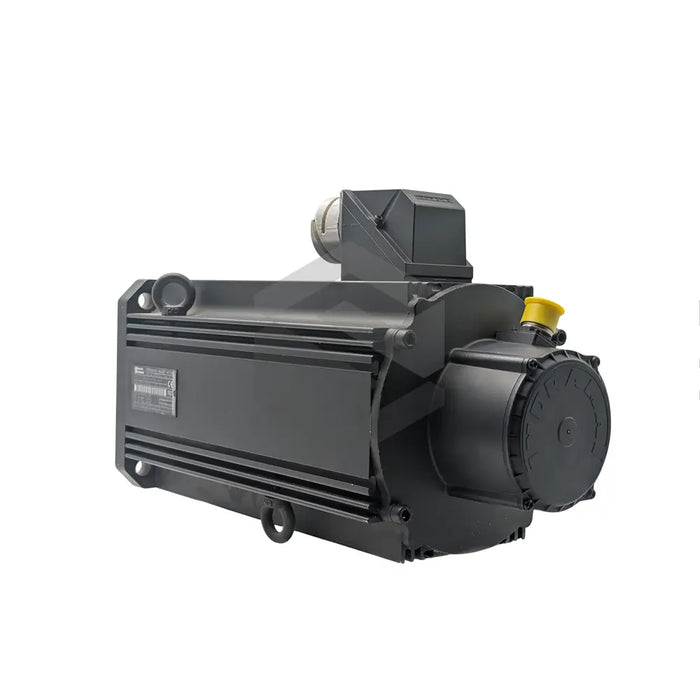

The MHD115B-024-NP1-BA, a product of Bosch Rexroth Indramat, is a state-of-the-art synchronous motor primarily used in industrial automation equipment. It encompasses a DIN compliant flange and an advanced encoder for rapid start-up. The motor utilizes energy-dense permanent magnets, ensuring high torque output and stability at various operating speeds. The shift from traditional motor brush design to electronic commutation allows for optimal torque utilization at different speeds. This model can handle variable loads and maintain accurate speed and position control, instantly correcting anomalies in programmed values. With a maximum torque of 160Nm, operating speeds up to 4000rpm, and adherence to IP 65 ingress protection standards, the MHD115B-024-NP1-BA motor can be employed across various machines including those used in food, woodworking, printing, and paper manufacturing industries.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product: MHD115B-024-NP1-BA Synchronous Motor
  • Purpose: Controlling speed and position of automation equipment
  • Flange: DIN compliant for universal installation
  • Inbuilt Parts: Advanced encoder unit for quick start-up
  • Torque Variation: High at various operating speeds
  • Communtation: Electronic replacing motor brushed design
  • Load Negotiation: Able to handle variable loads
  • Position and Speed Control: Reliably accurate
  • Theoretical Maximum Torque: 160 Nm
  • Usage: Diverse set of machines (machine tools, foodstuff machines etc.)
  • Rated Speed: 2000 rpm
  • Maximum Speed: 4000 rpm
  • Casing Protection: IP 65 ingress protection standards
