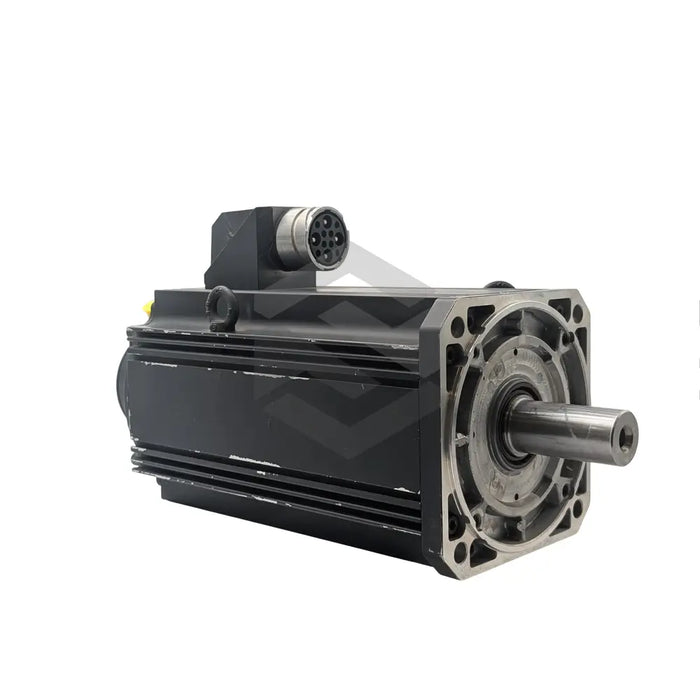

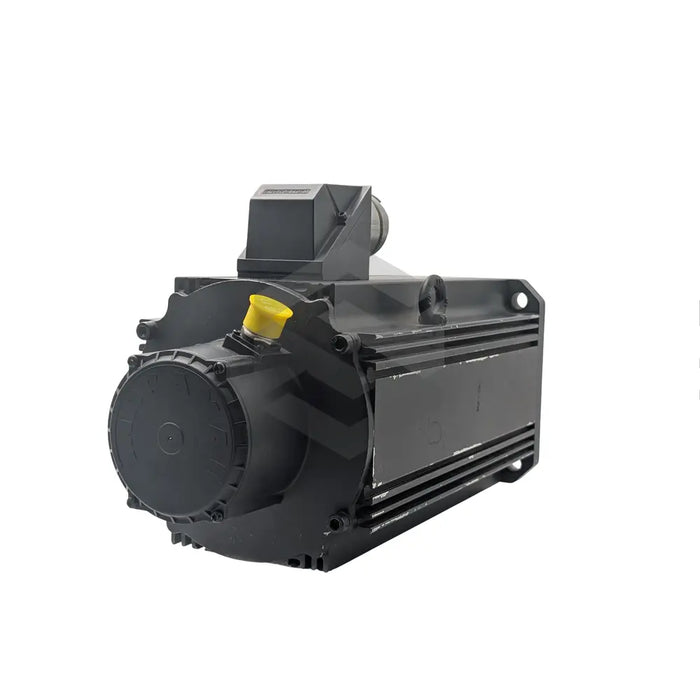

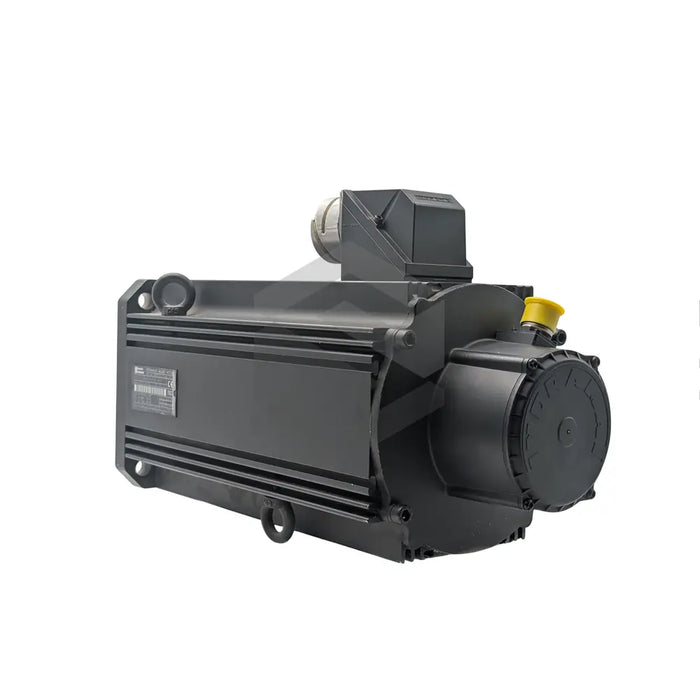

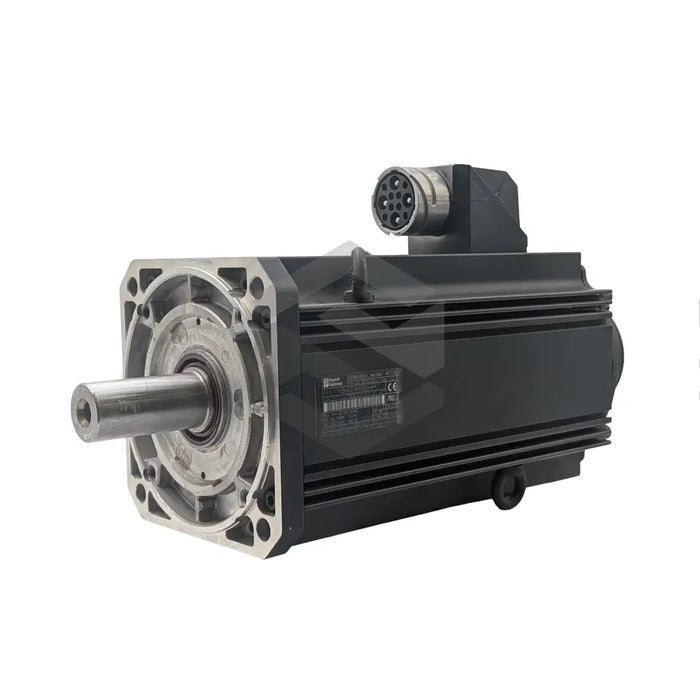

The MHD115B-024-PP0-AA is a Bosch Rexroth Indramat synchronous motor, designed ideally for use at elevations up to 1000m above sea level. It's imperative to use manufacturer's approved cables for connection to ensure optimal performance. The motor is not suited for shock load applications, especially if it's paired with a blower. It boasts an IP 67 protection rating for its housing, shaft, and encoder connectors, providing enhanced safety when installed with the optional sealing air connector. The product resists damage from diluted acids and lyes, and can be cooled through surface cooling or natural convection. It employs an FPM sealing material for its sealing ring and features a keyway shaft. The motor's bearings are crafted for a lifespan of 30,000 operating hours based on ISO 281 standards and its encoder has inbuilt data memory for storing motor adjustment data. This product comes without a holding brake and offers one year of backup support.
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Model: MHD115B-024-PP0-AA
  • Installation Elevation: 1000m over sea level
  • Shock Load Application: Not Suitable
  • Protection Rating: IP 67
  • Maximum Pressure Rating: 0.3 bar
  • Housing Resistance: Resistant to diluted acids and lyes
  • Cooling Method: Surface cooling or natural convection
  • Holding Brake: No
  • Shaft Type: Keyway shaft
  • Sealing Material: FPM
  • Operational Forces: Experiences radial and axial forces
  • Bearings Service Life: 30,000 operating hours as per ISO 281
  • Encoder: Equipped with data memory
  • Delivery: To specified address
  • Backup Support: 1 year.
