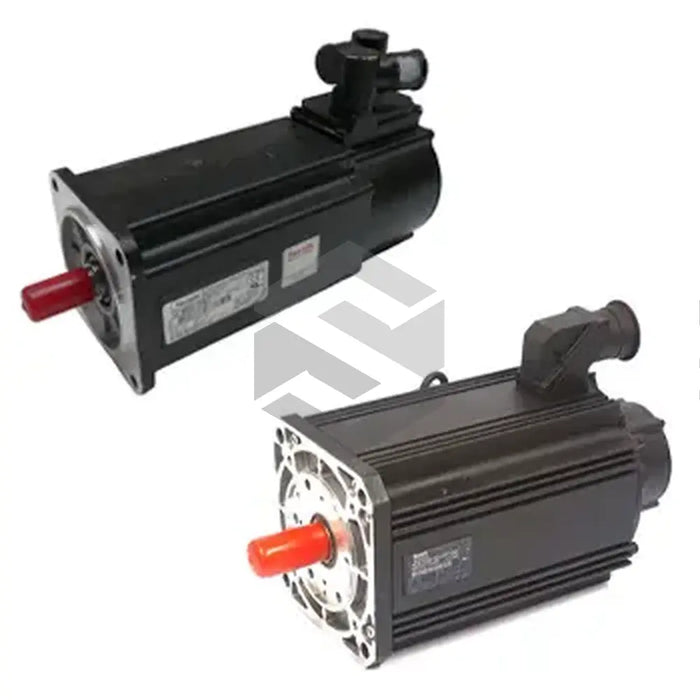

S image of MHD115B-024-PP1-BA

MHD115B-024-PP1-BA

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
The Bosch Rexroth Indramat MHD115B-024-PP1-BA is a multifunctional, efficient and durable synchronous motor, suitable for various industrial applications. It incorporates a multiturn absolute encoder and digital servo feedback, along with a keywayed shaft encased in a seal to guard against lubricants and dirt. It uses between 32.3 and 37.9 A, delivering from 50 to 57 Nm of continuous torque under natural cooling at 60 to 100 K temperatures. Equipped with a black paint-coated casing for additional protection against harsh environments, this synchronous motor can be installed in any direction, as long as the installation height does not exceed 1000 meters above sea level. The MHD115B-024-PP1-BA, in surface cooling mode at 60/100 K, can deliver 14.4 kW and provides a maximum torque of 56.1 Nm at a rated voltage of 337 V. It weighs 40 kg and holds a rating of F for insulation and IP 65 for protection. The model ensures effective operation within a temperature range of 0 to +40 degrees Celsius.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

2 - 4 Days
Handling Time

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Product Model

MHD115B-024-PP1-BA

Manufacturer

Bosch Rexroth Indramat

Encoder Type

multiturn absolute encoder

Shaft Type

keyways with sealing ring

Current Usage

32.3-37.9 A

Continuous Torque

50-57 Nm

Operational Temperature

60-100 K

Cooling System

natural and surface cooling

Thermal Time Constant

45 minutes

Winding Resistance

5.3 ohms

Torque Constant

1.7 Nm/A

Installation Height Maximum

1000 meters

Potential Torque

160 Nm

Winding Inductance

5.3 mH

Operating Temperature Range

0 to +40 degrees Celsius

Power

14.4 kW

Rated Voltage

337 V

Maximum Torque

56.1 Nm

Power Source

B side electrical connector

Weight

40 kg

Insulation Rating

F

Protection Rating

IP 65
