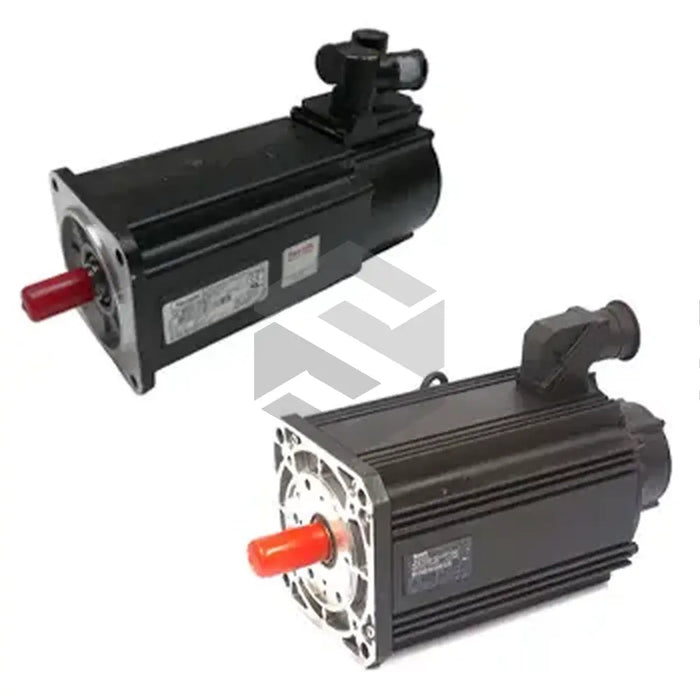

S image of MHD115C-024-PG1-AA

MHD115C-024-PG1-AA

by Bosch Rexroth Indramat
$30,655.35 - $30,655.35
$30,655.35
$30,655.35 - $30,655.35
$30,655.35

Available, Shipping Varies

This manual describes the Bosch Rexroth Indramat MHD synchronous motor series. Available with either absolute or relative position detectors, the MHD motors adhere to the B05 design. Offering optional radial or axial blowers, these motors allow for mounting styles of IM V3, IM B5, and IM V1. However, it is not advisable to employ them in shock-load applications, such as presses or punches. The installation elevation ranges from sea level to 1000m. The MHD115C-024-PG1-AA, in particular, features a torque constant of 1.65 Nm/A at 20 degrees Celsius, a voltage constant of 150.0 V/ 100 min, and has a peak current of 98.0 amperes. Weighing 30kg, it has four pole pairs, a rated speed of 2000 min, a maximum speed of 4000 min, and an insulation class of F. This motor is fully sealed, IP65-protected, and comes in prime-coated black. Transport is recommended at -20 to +80 degrees Celsius.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

2 - 4 Days
Handling Time

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Series

MHD Synchronous Motor

Design

B05

Installation Type

IM V3, IM B5, IM V1

Optional Supplies

Radial or Axial Blowers

Setup Elevation

0 m and 1000 m above sea level

Operation Condition

Transverse motor axis Class 3M6, longitudinal motor axis Class 3M1

Power Supply

Flange sockets with bayonet catch or screwed connection

Model

MHD115C-024-PG1-AA

Peak Current

98.0 A

Torque Constant at 20 degrees Celsius

1.65 Nm/A

Voltage Constant at 20 degrees Celsius

150.0 V/100 min

Weight

30.0 kg

Pole Pairs

4

Rated Speed

2000 min

Rated Frequency

133 Hz

Maximum Speed

4000 min

Insulation Class

F

Degree of Protection

IP 65

Housing

Totally sealed, prime coat black

Transportation Temperature

-20 to +80 degrees Celsius
