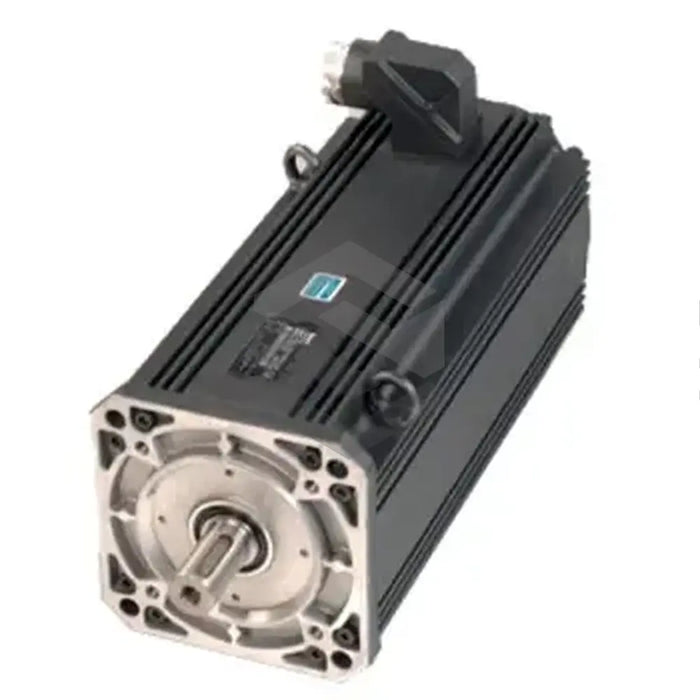

MHD115C-058-NP0-BN

Original price $19,720.80 - Original price $19,720.80
Original price
$19,720.80
$19,720.80 - $19,720.80
Current price $19,720.80
Available, Shipping Varies
Request a quote
The MHD115C-058-NP0-BN, under Bosch Rexroth's MHD servo motor series, is a sought-after solution in the international drive market for a wide range of automated industrial applications. This series comprises low-inertia, permanent-magnet servo motors secured against temperature overload damage by thermal sensors. Moreover, a robust cooling system utilizing natural convention and liquid cooling enhances overload capability. Specifically, the MHD115C-058-NP0-BN is equipped with a DIN 6885-1 standard shaft with a sealing ring, allowing its connection to various machine components. The motor comes with an integrated digital servo feedback system for reliable speed control and relative position detection. The unit, with a 180mm centered diameter, yields a maximum speed of 6,000 RPM and a peak torque of 231 Nm – thanks to electronic commutation - across a broad speed range. Compact, easy to install, and protected against solid objects and water jets (IP 65 rating), this servo motor ensures efficiency even in extreme environments.
30 Day Warranty
Technical Specifications
  • Product Type: Bosch Rexroth Servo Motor
  • MHD Model: MHD115C-058-NP0-BN
  • Use: Servo and Main Drive Motor
  • Applications: Machine Tools, Handling and Automation Systems, Food Processing Machines
  • Cooling System: Natural Convection and Liquid Cooling
  • Shaft Feature: Shaft with Sealing Ring and Keyway
  • Motor Encoder System: Integrated Digital Servo Feedback
  • Centering Diameter: 180mm
  • Maximum Speed: 6,000 RPM
  • Theoretical Maximum Torque : 231 Nm
  • Installation Options: Multiple Positioning
  • Cabling: Using Various Design Cabling Sets
  • Protection Rating: IP 65
  • Environmental Suitability: Harsh Conditions
