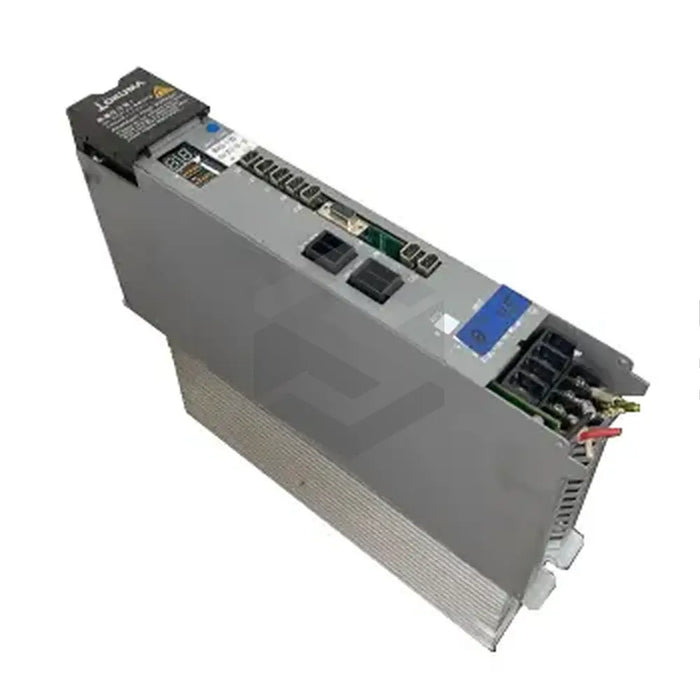

series image of MIV05-1-B5

MIV05-1-B5

by Okuma
$4,233.73 - $4,233.73
$4,233.73
$4,233.73 - $4,233.73
$4,233.73
In Stock, Ships 3 - 5 Days
The Okuma MIV05-1-B5 is an inverter unit primarily responsible for driving spindle and axis drive motors. Operating on a DC power supply, it provides 300 Volts DC and 24 Volts DC control power, with communication facilitated via servo, encoder, and converter links. The 5 kilowatt capacity unit is designed with a built-in ICB1 inverter control board for precise motor control, and is compatible with both BL and PREX motors. The unit's name is clearly displayed, and the same type should be used for replacement orders. The MIV05-1-B5 comes fitted with a heat sink for enhanced heat dissipation and a 7-segment LED to display operational status. It weighs 5.7 kilograms and measures 380 x 60 x 325 millimeters. Installation requires a dust-free and waterproof cabinet, and the use of protection devices, like fuses or circuit breakers for short-circuit protection, is recommended.
30 Day Warranty
Technical Specifications
  • Manufacturer: Okuma
  • Product Type: Inverter Unit
  • Power Supply: DC
  • Provided Volts: 300 Volts DC and 24 Volts DC Control Power
  • Communication Link: Servo Link, Encoder Link, Converter Link
  • Control Board: Inbuilt ICB1
  • Line Side capacity: 5 kilowatts
  • Applicable Motors: BL Motors, PREX Motors
  • ROM Control Type: 5
  • Heat Sink: Available
  • Display Type: 7-Segment LED
  • Operating Modes: Normal Mode, Alarm Status Display Mode
  • Weight: 5.7 kilograms
  • Dimensions: 380 x 60 x 325 millimeters
  • Cabinet Requirements: Dust-Free, Waterproof
  • Recommended Safety Measures: Fuses or Circuit Breakers for Short-Circuit Protection
