MKD025B-058-GG1-KN

Original price $25,704.00 - Original price $25,704.00
Original price
$25,704.00
$25,704.00 - $25,704.00
Current price $25,704.00
In Stock, Ships 3 - 5 Days
Request a quote

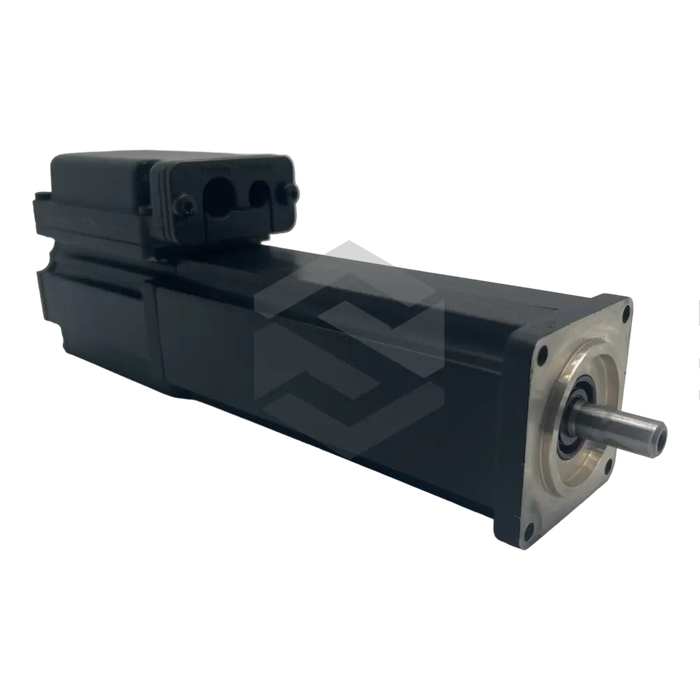

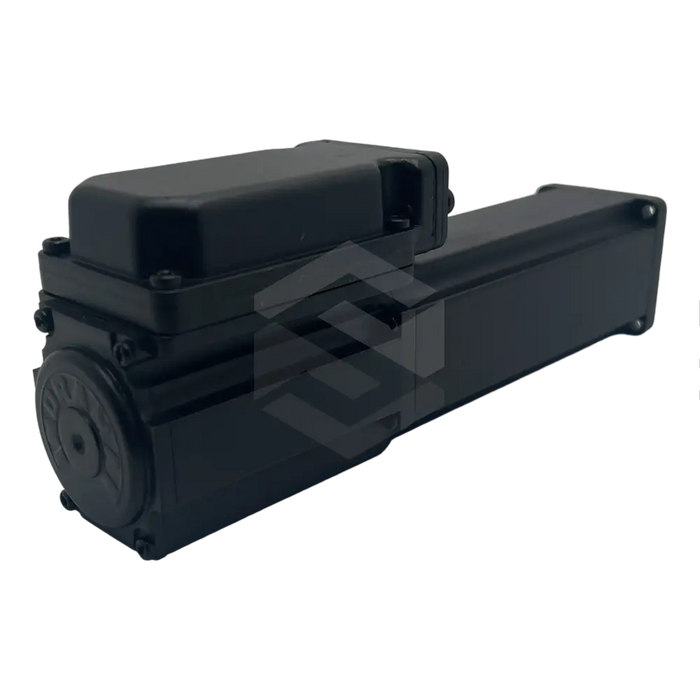

The MKD025B-058-GG1-KN AC servo motor, part of the Indramat MKD series, is designed for use with Ecodrive and Diax04 automation units, offering a cost-effective and versatile solution for a variety of automation needs. With a winding code of 058, this motor features a plain output shaft with a sealing ring, resolver feedback for drive controller communication, a 54mm flange size with a 40mm centering diameter, and an electrically releasing holding brake that activates when no power is supplied to the motor. Ideally suited for industries such as packaging, food, handling, and printing, the MKD025B-058-GG1-KN motor operates at a maximum speed of 9000 RPM, with a rated speed of 5000 RPM, 196V, and 250Hz, and a rated current of 0.94A. Weighing 1.5 kg, it has a maximum altitude of 1000m, insulation class F, and IP65 protection. Please note that professional knowledge is required for its operation and installation, and field dismantling for repairs is not advised.
30 Day Warranty
