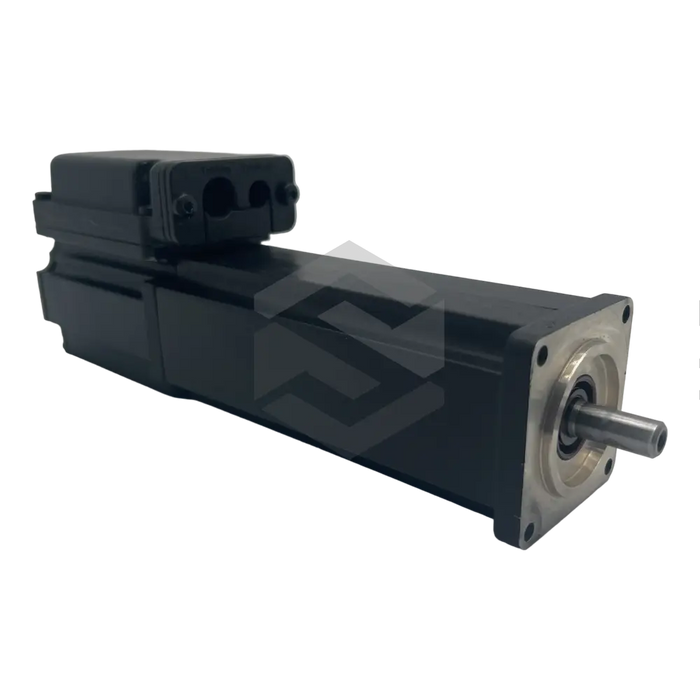

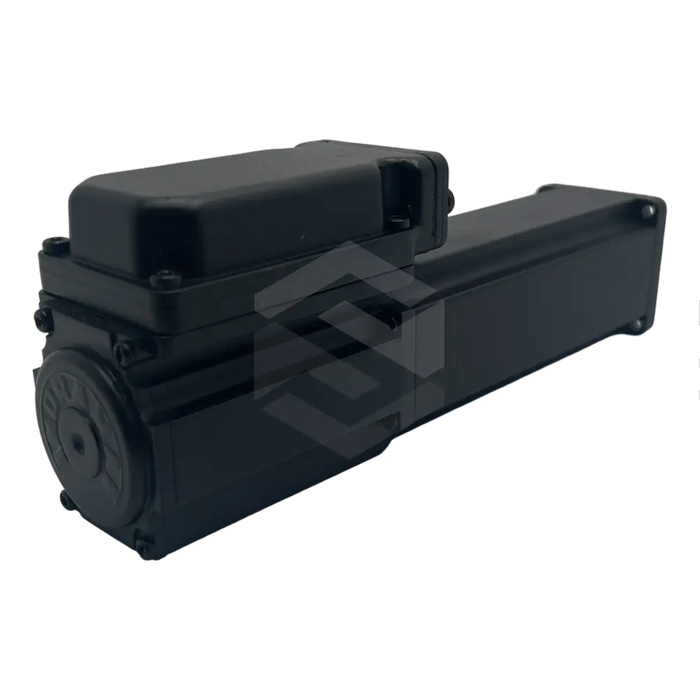

The Rexroth Indramat MKD025B-058-KG0-KN is a digitally intelligent motor designed for various application fields, including the printing, paper, machine tool, packaging, handling, automation, and food industries. This cost-effective motor boasts high operational reliability, high-performance data, and high dynamics due to its favorable torque-to-inertia mass ratio. With a flange according to DIN 42948 for easy machine attachment and a wide variety of cable sets for simple cabling, the MKD025B-058-KG0-KN offers hassle-free integration.
Featuring a brushless design and grease-lubricated bearings, this motor requires virtually no maintenance throughout its service life. The stator windings' favorable heat dissipation and high overload capabilities allow for direct overhung mounting of belt pulleys and pinions. Thanks to its electrical commutation, the MKD025B-058-KG0-KN supports continuous start and stop operation with high repeat frequencies. Key mechanical parameters include a rotor inertia of 0.2 x 10-4 kgm2, a theoretical maximum torque of 1.8 Nm, and a maximum speed of 9000 min-1. The motor has a mass of 1.5 kg without a blower unit and holding brake, a permanent storage temperature range of -20°C to +80°C, and a housing coat in prime black A/W RAL 9005. With a one-year warranty, this unit is available for global shipping through Servo Supplier.
