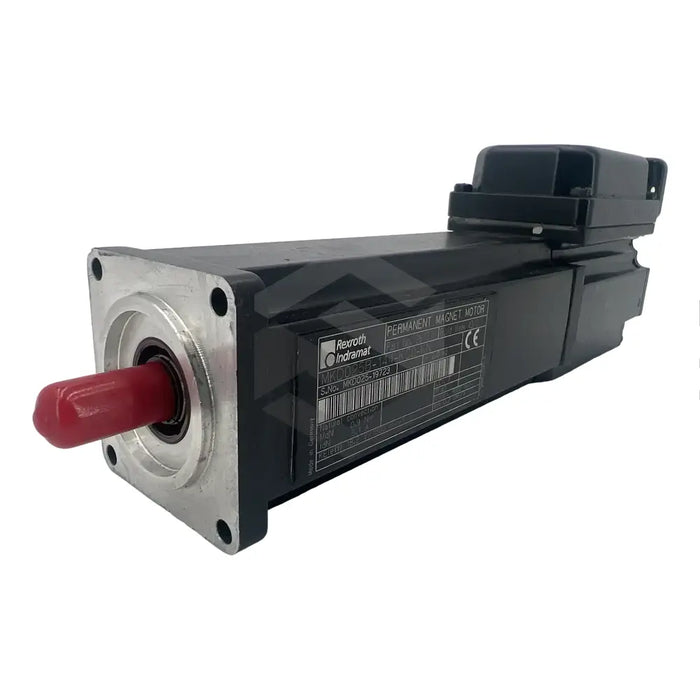

product Main (Front Left) image of MKD025B-144-KG0-KN

MKD025B-144-KG0-KN

by Bosch Rexroth Indramat
$1,528.08 - $1,528.08
$1,528.08
$1,528.08 - $1,528.08
$1,528.08
In Stock, Ships Today

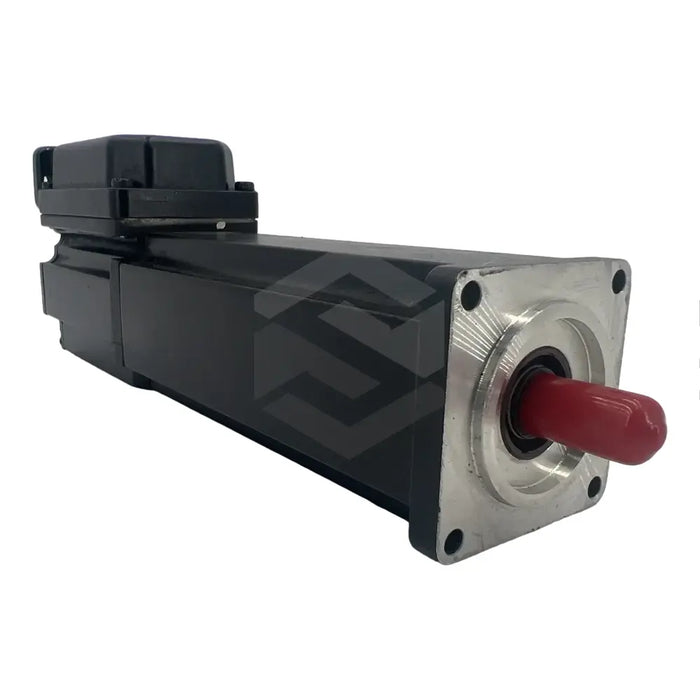

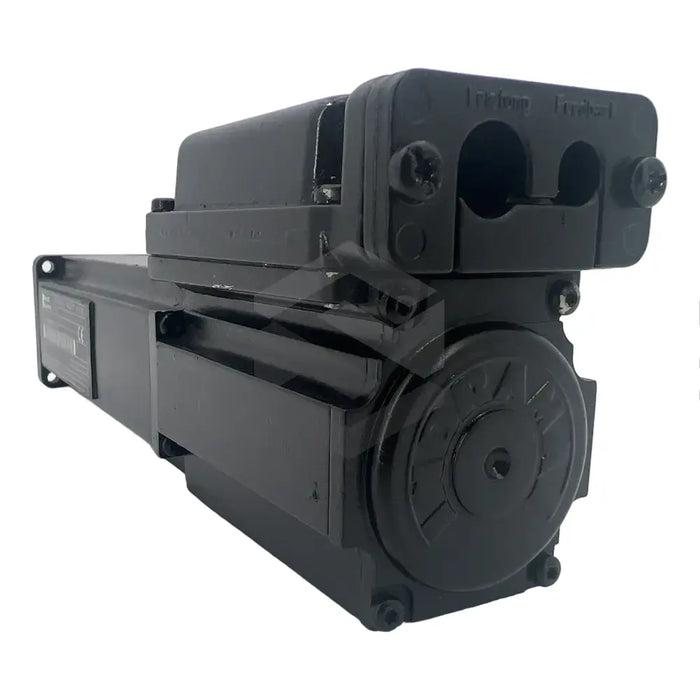

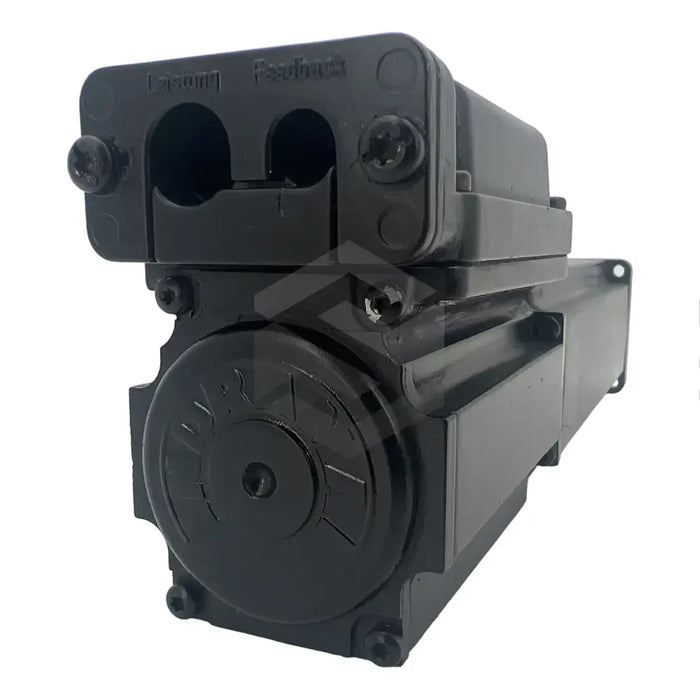

The MKD025B-144-KG0-KN, produced by Bosch Rexroth Indramat, is a high-efficiency, permanent magnet motor. Its electronic commutation and special magnetic materials provide a low inertia mass, boosting performance while maintaining reliability. It is adaptable, compatible with various cable set designs, and comes with integrated data memory and a motor encoder unit for quick start-up. This motor is fitting for an array of machines including those used in the paper, printing, automation, and food industries. With a 54mm flange and 40mm centering diameter, it delivers continuous torques between 0.4 to 0.9 Nm at standstill and possesses an RSF resolver feedback type. Though it lacks a holding brake, it consistently relays speed and position data to the drive controller for enhanced precision. The output of this motor features a connection box type direction.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Code: MKD025B-144-KG0-KN
  • Product Type: Permanent Magnet Motor
  • Commuation Type: Electronic with Special Magnetic Materials
  • Mounting Type: Direct Overhung
  • Bearing Design: High Radial Loads
  • Cable Set Design: Various Compatible
  • Data Memory: Yes
  • Motor Encoder Unit: Included
  • Application: Paper and Printing Machines, Machine Tools, Automation and Handling Machines, Packaging Machines
  • Flange Size: 54mm
  • Centering Diameter: 40mm
  • Continuous Torques at Standstill: 0.4 to 0.9 Nm
  • Encoder System: Integrated
  • Feedback Type: RSF Resolver
  • Position Detection: Relative
  • Holding Brake: No
  • Output Direction: Connection Box Type
