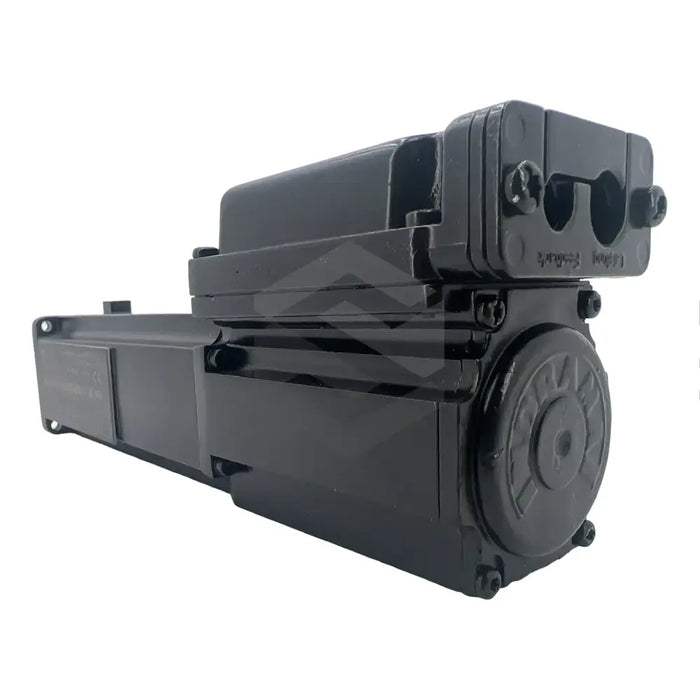

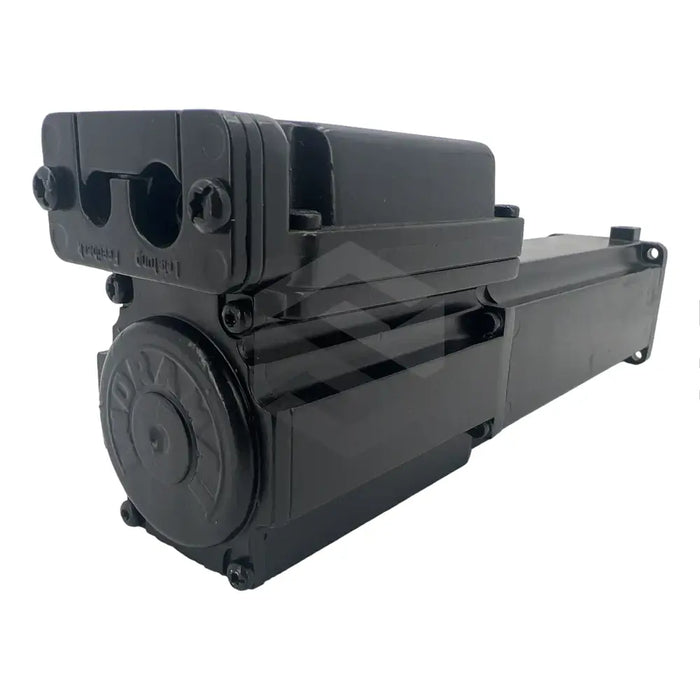

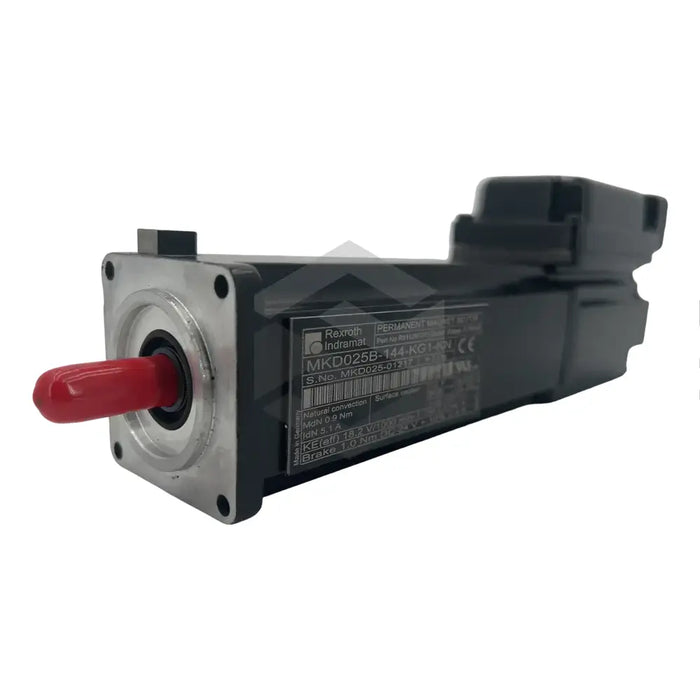

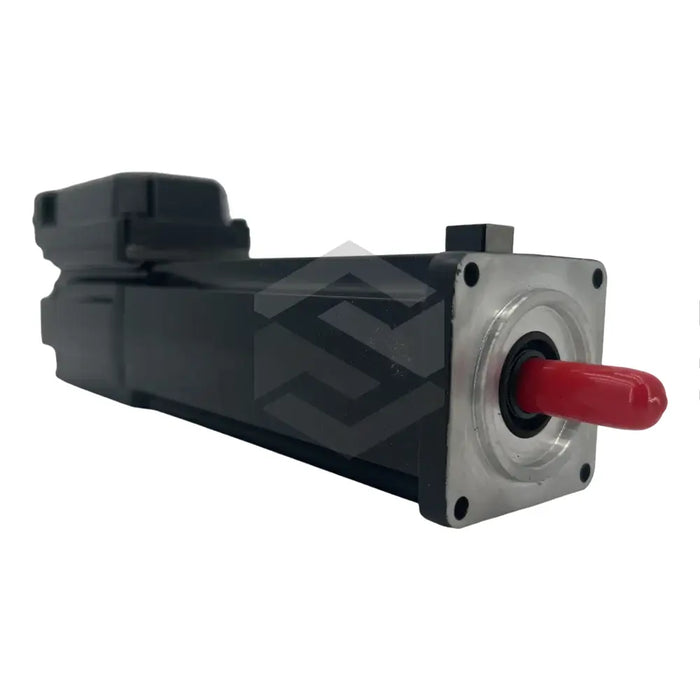

product Main (Front Left) image of MKD025B-144-KG1-KN

MKD025B-144-KG1-KN

by Bosch Rexroth Indramat
$5,502.67 - $5,502.67
$5,502.67
$5,502.67 - $5,502.67
$5,502.67
In Stock, Ships Today
The Bosch Rexroth Indramat MKD025B-144-KG1-KN is a high-quality, cost-effective permanent magnet motor possessing key features for efficient operation. Engineered with low inertia masses, enabled by special magnet materials, the motor is built for effective performance in challenging situations. It offers electrical commutation, thereby supporting high-frequency start-stop actions. The product's user-friendly design is in accordance with DIN42948 standards, enabling flexible installation in varied positions. The flange and centering diameter measure 54mm and 40mm respectively, and it delivers continuous torques ranging from 0.4 Nm to 0.9 Nm at standstill. The MKD025B-144-KG1-KN has a resolver feedback type and comes with a holding brake for maintaining servo axis during inactive states. It uses electrical releasing operation and possesses an integrated encoder system to constantly update the drive controller on its current position.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Type: Permanent Magnet Motor
  • Model: MKD025B-144-KG1-KN
  • Commutation Type: Electronic
  • Inertia Mass: Low
  • Flange Specifications: DIN42948
  • Flange Size: 54mm
  • Centering Diameter: 40mm
  • Continuous Torque at Standstill: 0.4 Nm to 0.9 Nm
  • Feedback Type: Resolver with Relative Position Detected (Denoted with "N")
  • Brake Type: Holding Brake with Electrical Release
  • Motor Feedback: Integrated Encoder System
