MKD041B-058-GP0-KN

Request a quote

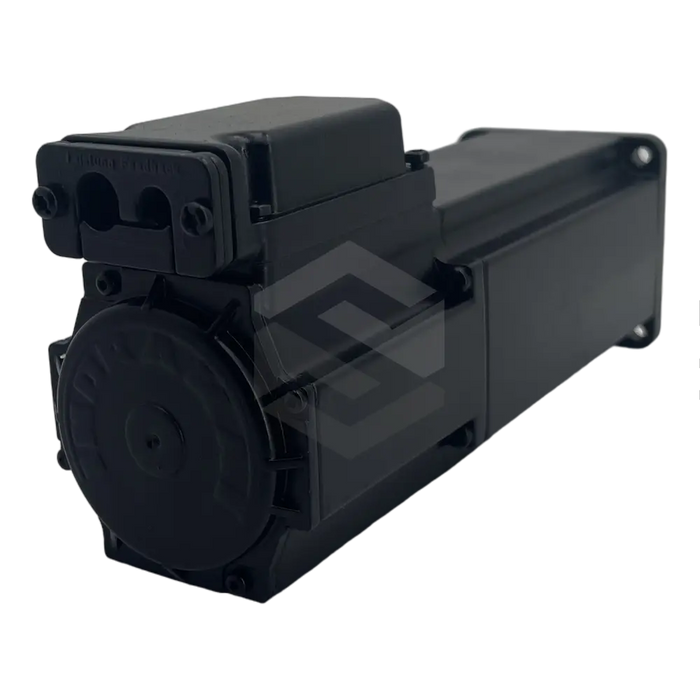

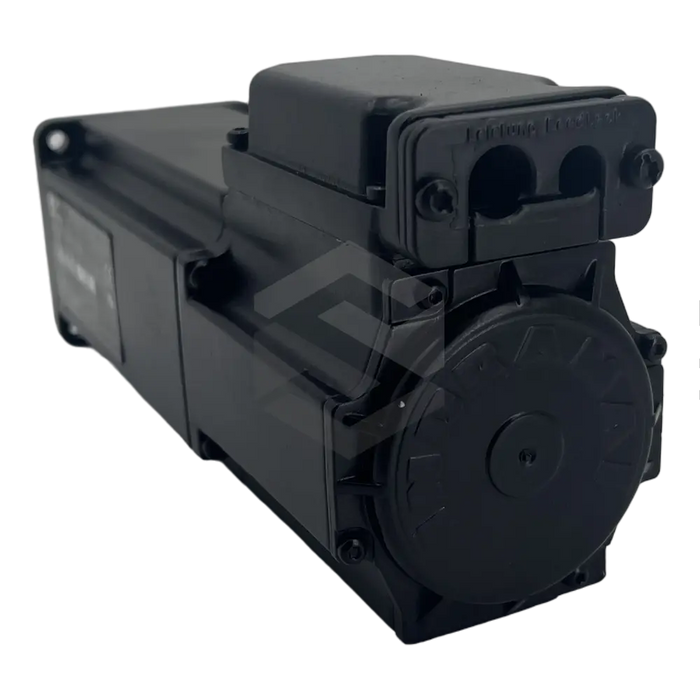

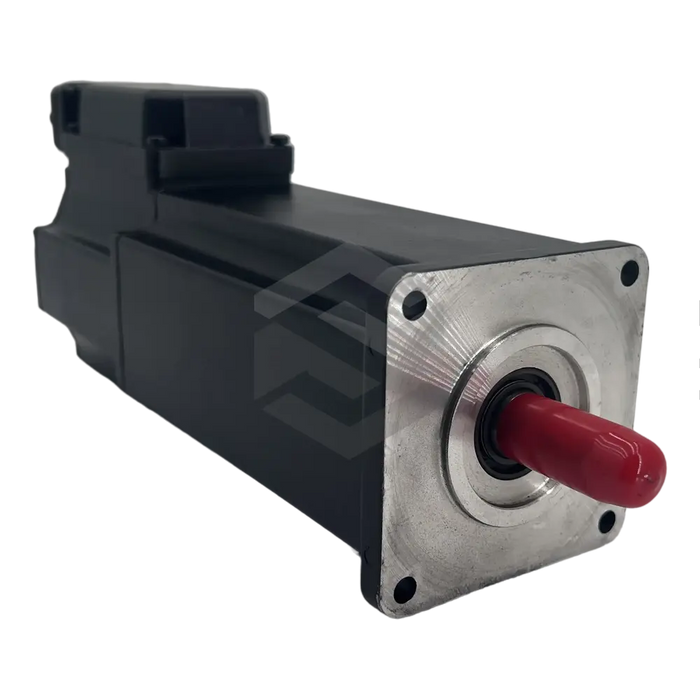

The MKD041B-058-GP0-KN is a high-quality synchronous AC Motor manufactured by Indramat, belonging to the MKD series. Ideal for use as the main driving engine in Diax04 or Ecodrive units, this motor offers reliable automation solutions with easy installation and minimal maintenance requirements. Featuring resolver feedback for accurate communication of motor function data to the drive controller, this motor has a winding code of 058 and a frame size of 041. Equipped with a keyway and sealing ring on the shaft, it does not include a holding or blocking brake, and the connection box is fixed. The motor has a length of 2.7nm, a flange size of 82mm, a centering diameter of 50mm and weighs 4.4kg (excluding blower unit). It can be stored at temperatures ranging from -20°C to 80°C and operates effectively in ambient temperatures between 0°C to 40°C, with a maximum setup height of 1000m. With a theoretical maximum speed of 7000 RPM, the rated speed is 5000 RPM, the continuous current at standstill is 3.4A, peak current is 15.3A, rated voltage is 386V, rated frequency is 250Hz, and rated power is 0.6kW. This unit can be shipped globally, backed by a one-year warranty from Servo Supplier.
