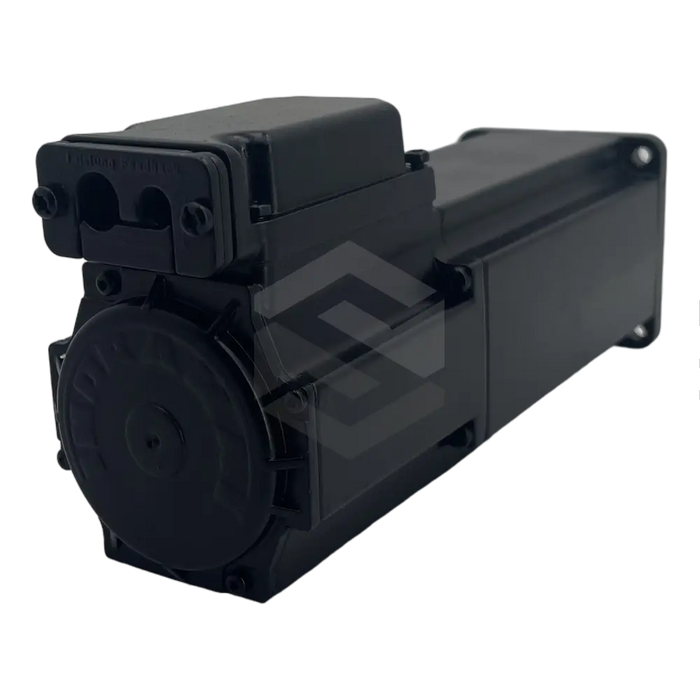

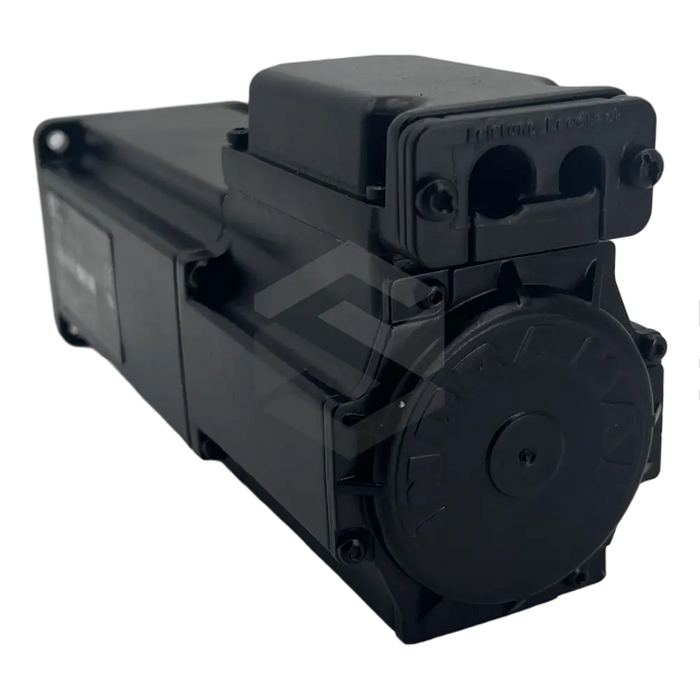

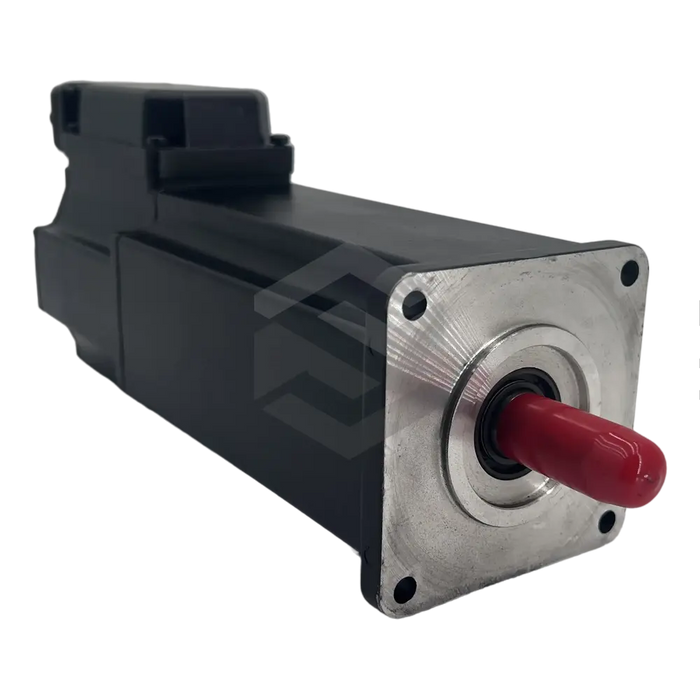

The Bosch Rexroth MKD041B-144-FG0-KN synchronous motor offers high operational reliability and extreme precision for industrial automation applications. Capable of being mounted in multiple positions, it operates at a rated voltage of 115-170V and delivers a rated torque of 1.4-1.5 Nm at a speed of 3000-4500 rpm. The motor generates a continuous torque of 2.7 Nm with a 60K increase in housing temperature and 2.9 Nm with a 100K increase in winding temperature. Featuring a plain shaft with shaft sealing rings, it delivers a rated power of 0.52/0.88 kW at 2.8/3 A rated current. The model utilizes resolver feedback and comes without a holding brake. A junction box on the B-side enables power connection, and its IP65 protection class guards against dirt and water ingress. With a permissible ambient temperature range of 0-40 degrees Celsius and maximum installation altitude of 1000 meters above sea level, this motor is globally available with a one-year warranty from Servo Supplier.
