MKD041B-144-GP0-KS
Original price
$1,526.18
-
Original price
$1,526.18
Original price
$1,526.18
$1,526.18
-
$1,526.18
Current price
$1,526.18

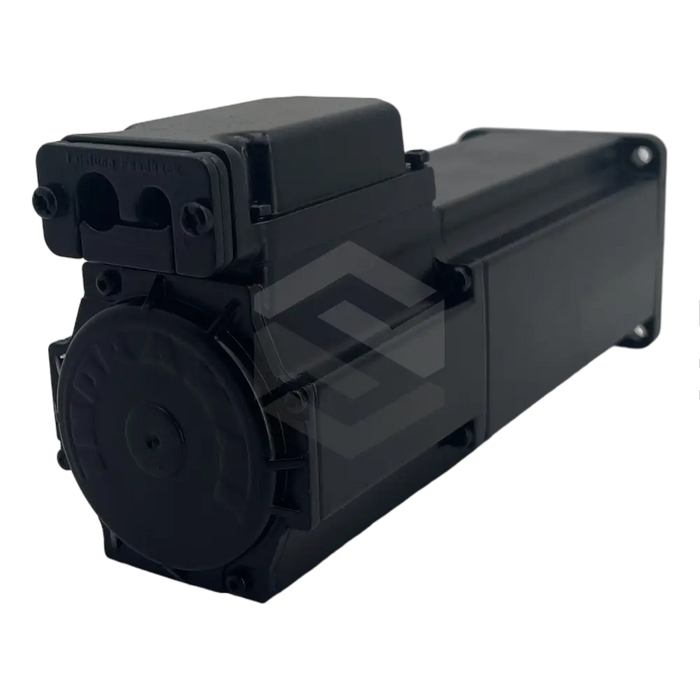

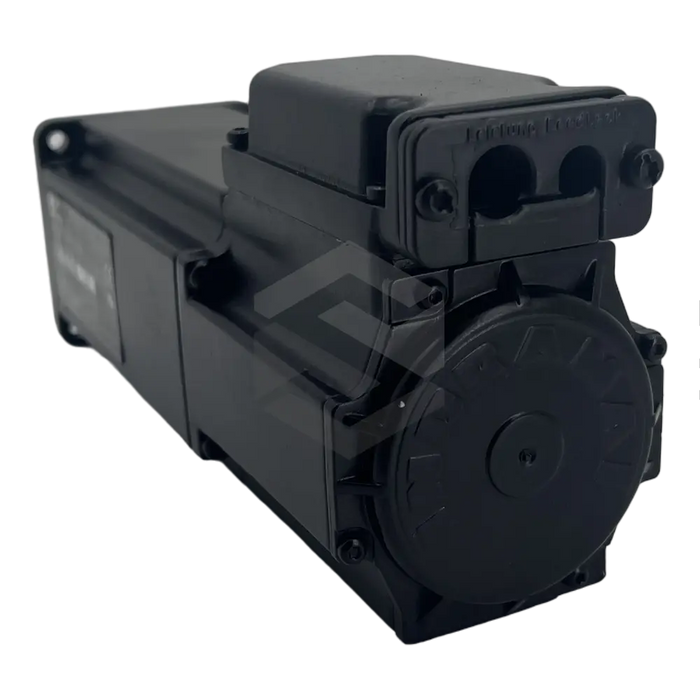

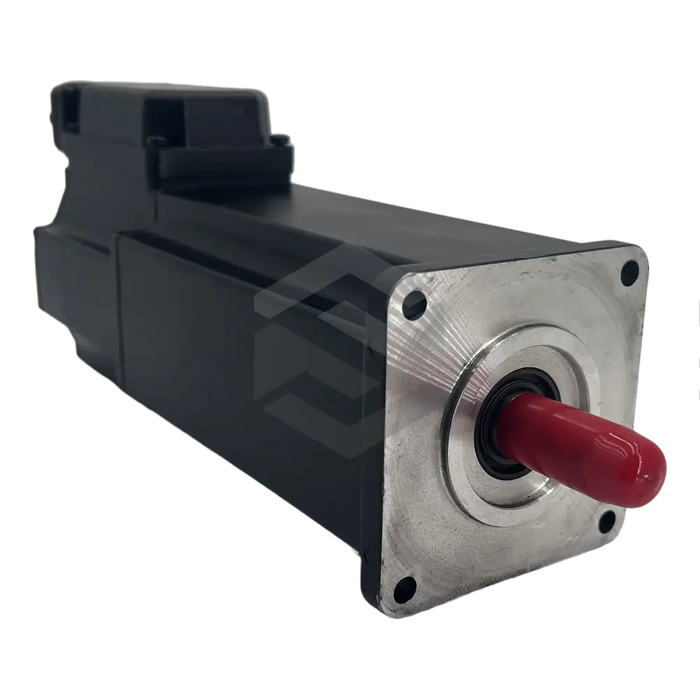

The MKD041B-144-GP0-KS is a high-performance synchronous motor from Bosch Rexroth's MKD series, designed for various industrial applications such as machine tools, robotics, packaging, and food processing machines. This motor features a maximum torque of 11.3 Nm, peak current of 34 A, and a shaft with key per DIN 6885-1 (including shaft sealing rings) for a secure and stable torque transmission. This model employs a digital resolver feedback system for precise position detection, with a system accuracy of ±8 angular minutes. The housing contains a battery for storing encoder data, which is monitored by the drive controller. This motor operates without a holding brake and can be installed in any mounting position up to an altitude of 1000 meters above sea level. It delivers 0.4 Nm/A of constant torque at 20°C and requires a constant voltage of 36.3 V per 1000 rpm, with variations according to housing temperature. The IP65 protection category ensures the housing's durability, and the unit has a net weight of 4.4 kg. This motor can be shipped globally and comes with a one-year warranty from Servo Supplier.
