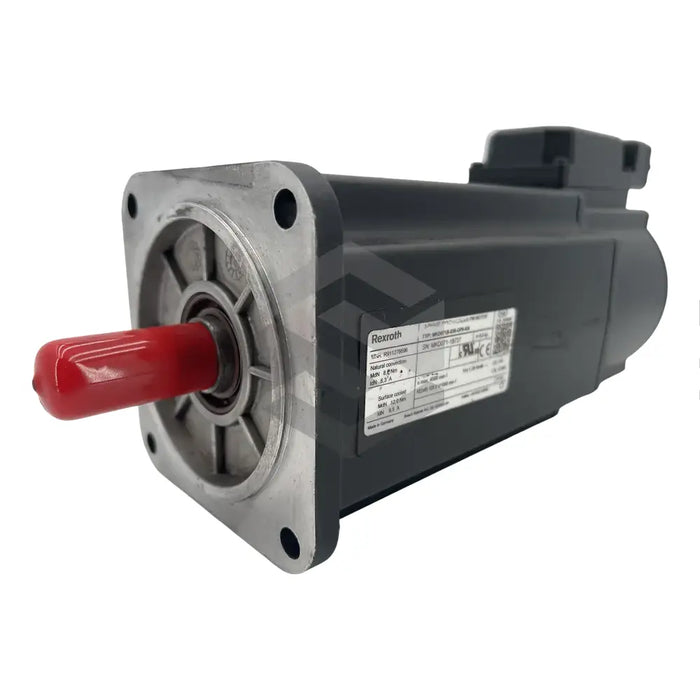

C image of MKD071B-035-GP0-KN | Main (Front Left)

MKD071B-035-GP0-KN

by Bosch Rexroth Indramat
$4,906.90 - $10,064.80
$4,906.90
$4,906.90 - $10,064.80
$4,906.90

In Stock, Ships 1 - 3 Days

The MKD071B-035-GP0-KN, part of Rexroth Bosch Indramat’s MKD Series, is a long-lasting, low-maintenance Digital AC Synchronous Motor. It features a resilient shaft sealing ring that insulates the motor from the potential damage of interacting oils and chemicals. The shaft is built to DIN 6885-1 standards. Dimensions include a motor frame size of 071 and a motor length of 8.0 Nm. The motor utilizes a resolver feedback system for optimized decision-making and complex command execution. Its power supply comes from a terminal connection box. Three operational modes (Natural 60K, 100K, and Surface 60/100K) provide versatility, with maximum power output reaching 3.4 kW, and a maximum speed of 4500 RPM. Users should note that the MKD071B-035-GP0-KN does not include a holding brake.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Rexroth Bosch Indramat

Product Line

MKD Series

Product Type

Digital AC Synchronous Motor

Shaft Type

Plain shaft with shaft sealing ring

Key

Per DIN 6885-1

Motor Frame Size

071

Motor Length

8.0 Nm

Windings Code

035

Motor Feedback

Resolver feedback system

Connection

Terminal box

Design

Standard (No special design)

Holding Brake

Not included

Operation Mode (Natural 60K)

Rated Torque: 5.2 Nm, Rated Current: 2.9 A, Power: 1.2 kW, Rated Voltage: 333 V

Operation Mode (Natural 100K)

Rated Torque: 7.5 Nm, Rated Current: 4.4 A, Power: 2.5 kW, Rated Voltage: 349 V

Operation Mode (Surface 60/100K)

Rated Torque: 10.2 Nm, Rated Current: 5.7 A, Rated Power: 3.4 kW, Rated Voltage: 366 V

Maximum Speed

4500 RPM

Rated Speed

2500 RPM

Rated Frequency

167 Hz
