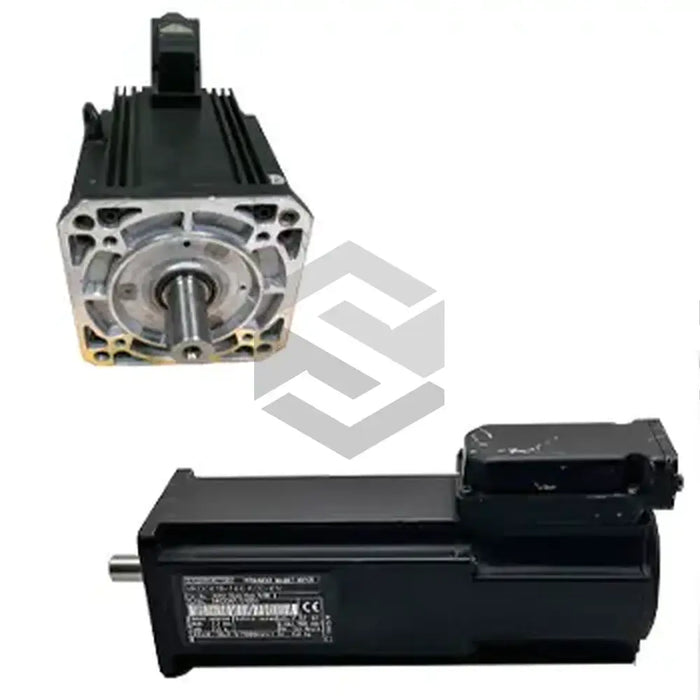

MKD071B-035-GP0-KN-SA001
The MKD071B-035-GP0-KN-SA001 servo motor is manufactured by Bosch Rexroth Indramat for the MKD Synchronous Motors series. Intended for precision motion axes in assembly cells, pick-and-place gantries, and packaging machinery, the motor delivers controlled torque and speed when paired with a compatible drive controller. Its permanent-magnet rotor and stator windings convert three-phase electrical input into rotational output that can be regulated in real time by the drive’s closed-loop algorithms. This operating principle supports accurate acceleration, steady low-speed motion, and repeatable positioning in automated equipment.
This model supplies a continuous standstill torque of 8.0 Nm, allowing the axis to hold load without thermal overload while stationary. A centering diameter of 95 mm aligns the housing on the machine plate, helping reduce runout during installation. The square flange measures 115 mm, providing a standard bolt pattern that matches many gearboxes and mounting brackets. Rotor position is monitored by resolver feedback, which sends electrical angle information to the controller for commutation and velocity calculation. The motor also has a shaft seal to help limit the ingress of dust or coolant into the bearing chamber during operation.
Electrical and mechanical terminations are routed on Side B through a sealed connection box, which helps organize cable entry and strain relief. Power is transmitted by a shaft with keyway, so couplings can be locked positively against slip under bidirectional torque. The motor is supplied without a holding brake, so static load retention must be provided by the drive or by external clamping hardware when power is removed. Stator wiring follows code 035, which corresponds to the winding arrangement used with the matching drive. Relative position detection based on multi-turn counting in the control supports homing routines and incremental moves without adding an absolute encoder.
