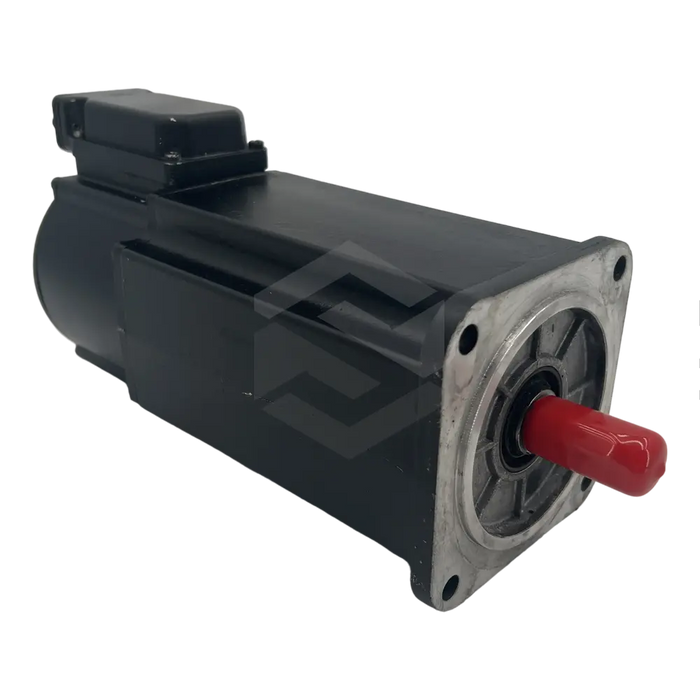

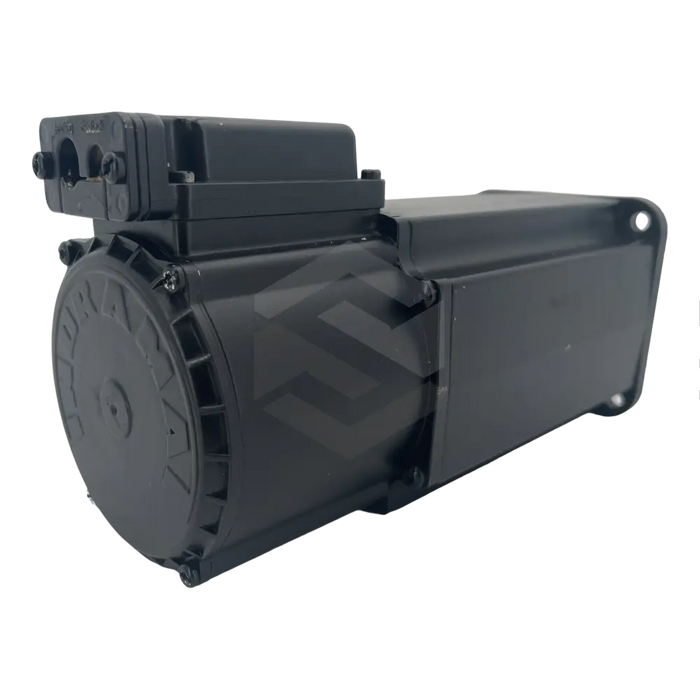

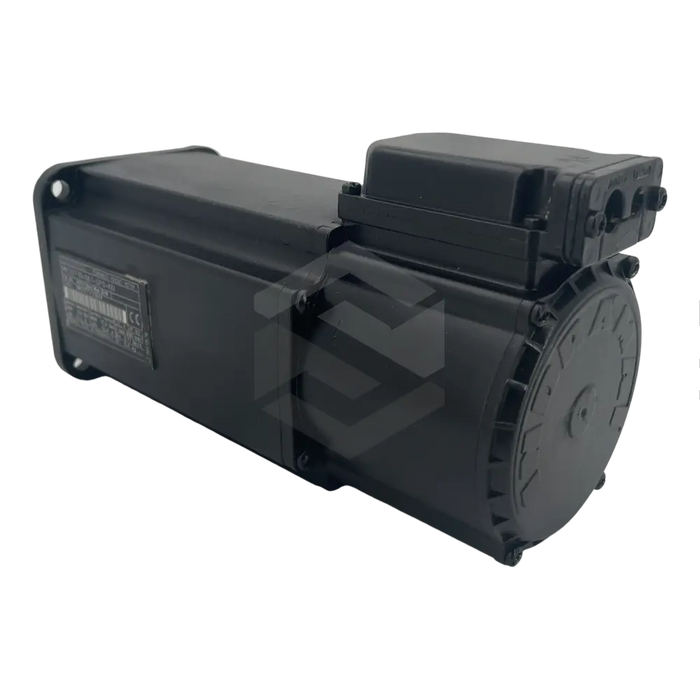

series image of MKD071B-035-KP1-KN

MKD071B-035-KP1-KN

by Bosch Rexroth Indramat
$6,514.50 - $6,514.50
$6,514.50
$6,514.50 - $6,514.50
$6,514.50
In Stock, Ships Today
The MKD071B-035-KP1-KN Synchronous Motor, produced by Bosch Rexroth Indramat, is designed specifically for use with machining, robotics, and packaging applications. It features a brushless, permanent magnet design and boasts an IP65 protection degree, making it a robust choice for industrial use. It comes in two naturally cooled variants with rated torques of 5.2Nm and 7.5Nm, and two surface cooled variants with rated torques of 10.2Nm, all running at a characteristic speed of 2,500 RPM with maximum speeds up to 4,500 RPM. The motor weighs 8.8 kg for easy installation and can operate in any ambient temperature from 0oC-40oC. It uses an integrated resolver feedback for accurate drive controller feedback and features a 5Nm holding brake on the driveshaft for stability when the motor is unpowered. The ideal solution for any industry seeking to optimize their motion control.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Line: MKD Synchronous Motors
  • Model: MKD071B-035-KP1-KN
  • Design: Brushless, Permanent Magnet
  • Protection Degree: IP65
  • Rated Torque (Natural Cooling): 5.2Nm and 7.5Nm
  • Rated Power (Natural Cooling): 1.6kW and 2.5kW
  • Rated Torque (Surface Cooling): 10.2Nm
  • Rated Power (Surface Cooling): 3.4kW
  • Characteristic Speed: 2,500RPM
  • Maximum Speed: 4,500RPM
  • Weight: 8.8 kg
  • Operating Temperature: 0oC-40oC
  • Feedback System: Resolver Feedback with Integrated Multiturn Encoder
  • Holding Brake: 5Nm
  • Driveshaft Design: DIN 6885-1 keyway built in
