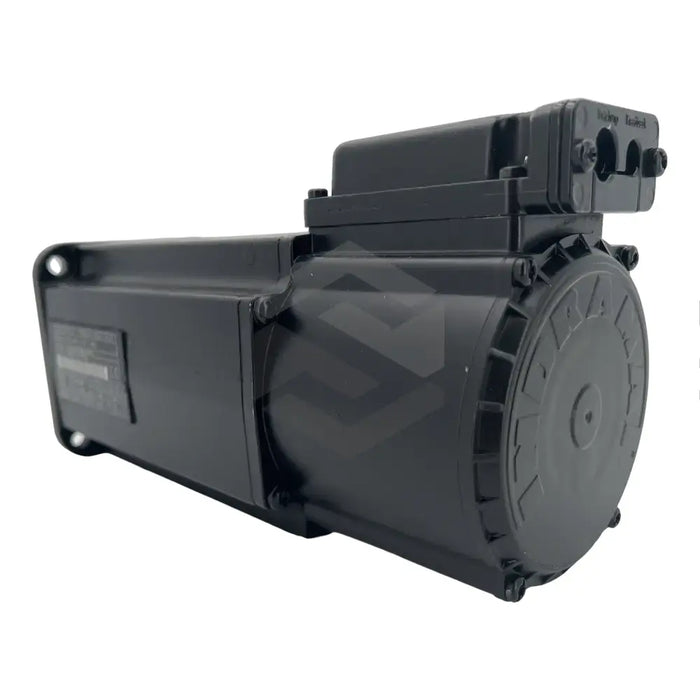

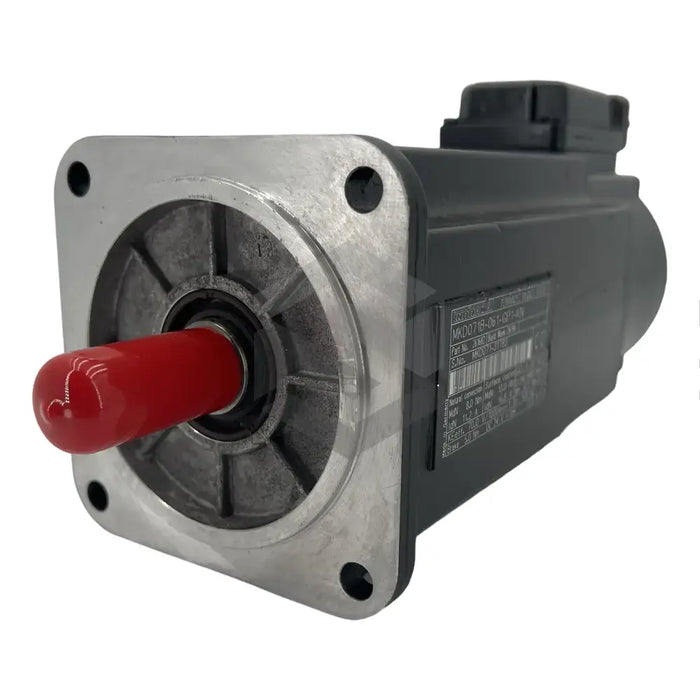

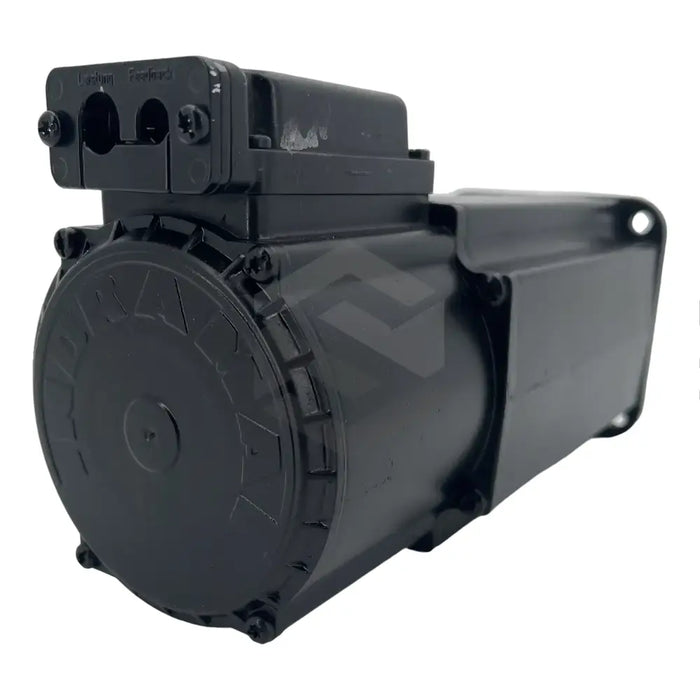

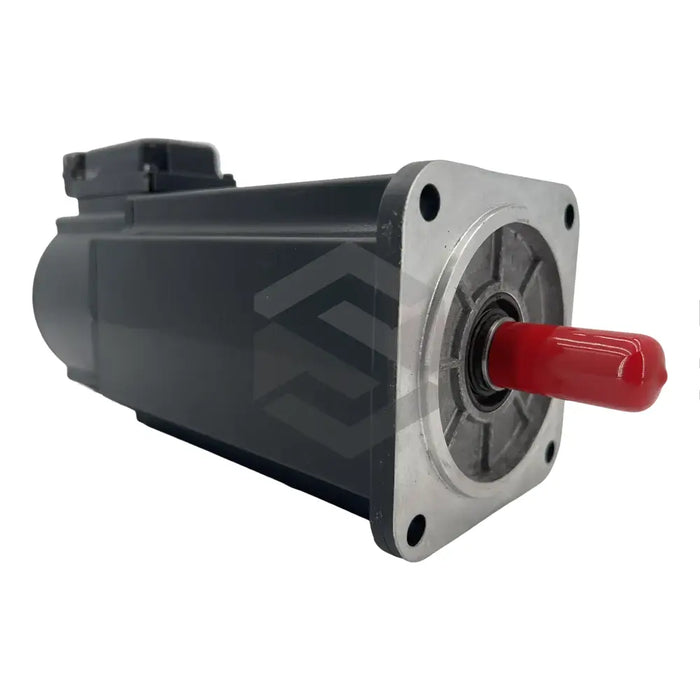

product Main (Front Left) image of MKD071B-061-GP1-KN

MKD071B-061-GP1-KN

by Bosch Rexroth Indramat
$3,289.00 - $3,289.00
$3,289.00
$3,289.00 - $3,289.00
$3,289.00
In Stock, Ships 1 - 2 Days
The Bosch Rexroth Indramat MKD071B-061-GP1-KN is a Digital AC Synchronous Brushless Servo Motor, engineered for dynamic applications requiring precise positioning. It merges compactness with high dynamics and superior energy efficiency. Known for high contouring accuracy and high feed rates, these motors are utilized in fields such as robotics, CNC machines, and automated manufacturing systems. The MKD071B-061-GP1-KN motor delivers continuous stall torque from 8 to 12 Nm and a rated speed range of 2000 to 4000 min-1. The resolver feedback caters to a wide range of position and velocity feedback mechanisms. Encased in standard housing with a 5 Nm holding brake and black prime coating, it is resistant to weathering, yellowing, and diluted acids. The motor carries protection class IP65, for dust and shock protection and water resistance. The operational ambient temperature spans 0 to 45oC and maximum setup altitude is 1000m above sea level.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Type: Digital AC Synchronous Brushless Servo Motor
  • Use: Servo Applications
  • Series: MKD
  • Rated Speed Range: 2000 to 4000 min-1
  • Torque Rating: 8 to 12 Nm
  • Cooling Type: Natural Cooling by Air
  • Feedback Type: Resolver Feedback
  • Housing: Standard Housing with a 5 Nm Holding Brake
  • Housing Coating: Black Prime Resistant to Yellowing, Weathering, and Diluted Acids
  • Size Code: 071
  • Winding Code: 061
  • Protection Class: IP65
  • Ambient Temperature: 0 to 45oC
  • Maximum Setup Height: 1000 m above sea level
