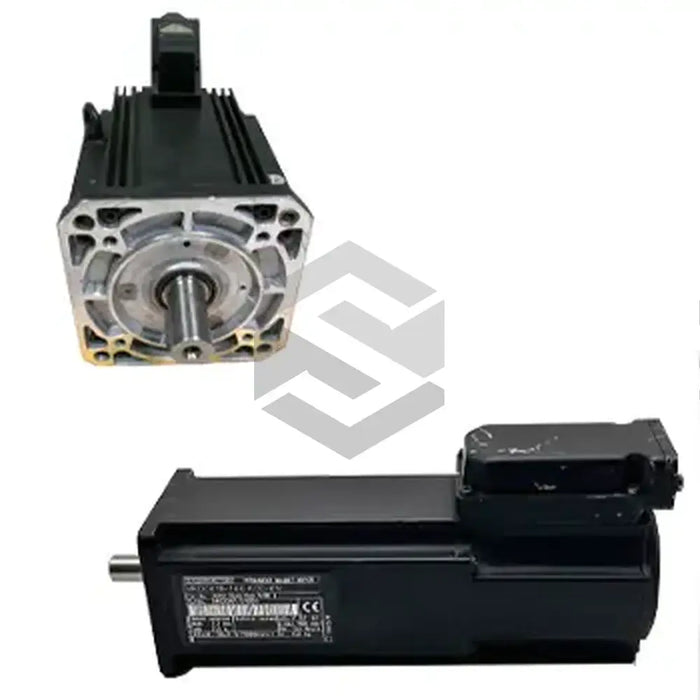

MKD071B-061-KP1-KN-SA001
The MKD071B-061-KP1-KN-SA001 servo motor is produced by Bosch Rexroth Indramat within the MKD Synchronous Motors series. As a brushless AC unit, it delivers closed-loop motion control for indexing tables, packaging machinery, and general automation when paired with compatible digital drives. The motor combines a resolver encoder and an integrated holding brake, so dynamic positioning and load holding are available in the same assembly. This design suits servo axes that must accelerate repeatedly while maintaining stable feedback during speed changes and short positioning moves. Its mechanical interface follows IEC dimensions, which supports installation on machine axes that use standard mounting patterns.
A centering diameter of 95 mm aligns the motor face accurately within the machine interface. Power and feedback terminals are routed on side B, and the leads terminate inside a connection box that helps protect wiring from contamination. Under rated conditions, the rotor can sustain a continuous standstill torque of 8.0 Nm, which is useful for tensioning duties and low-speed force control. The motor uses a square flange measuring 115 mm, and frame size 071 places it in the medium-power range of the series. A shaft seal helps keep dust and coolant away from the bearing cavity, and cable routing remains contained at the motor housing.
For load holding at standstill, the integrated brake provides 5 Nm of torque and engages when the drive is disabled. Motion feedback is supplied through resolver feedback, and absolute indexing over more than 4096 revolutions supports restart without a separate homing move in many applications. Torque production matches the electromagnetic profile set by winding code 061. Power is transmitted through a shaft with keyway, which allows rigid coupling to pulleys or gearboxes. Motor length code B keeps the housing compact, and the connection box orientation can leave useful clearance for adjacent machine components.
