MKD071B-061-KP1-KS

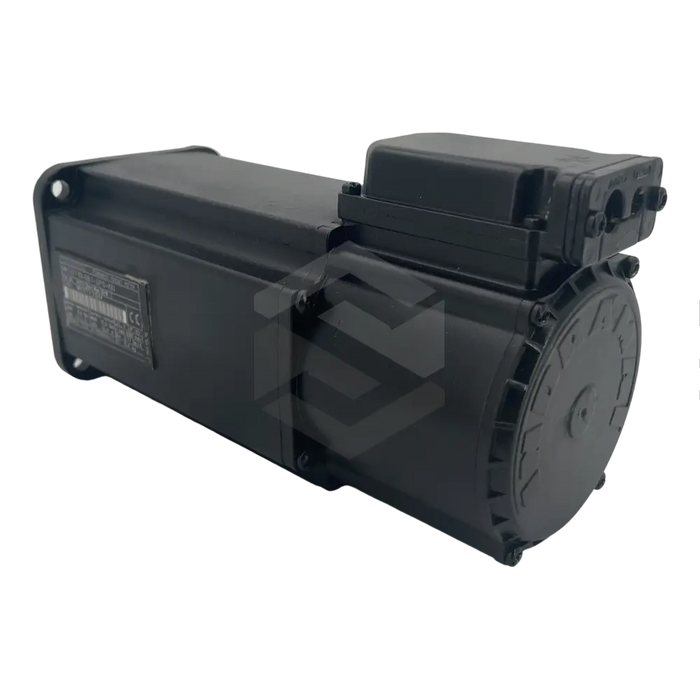

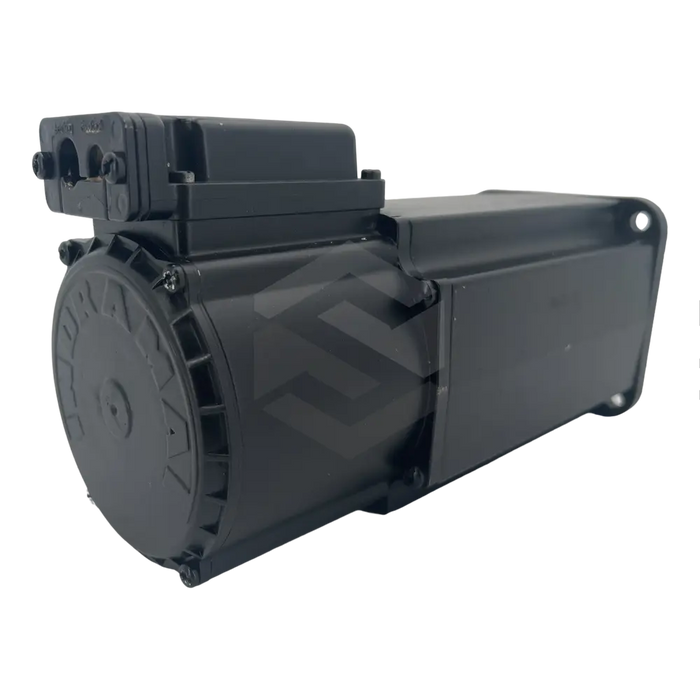

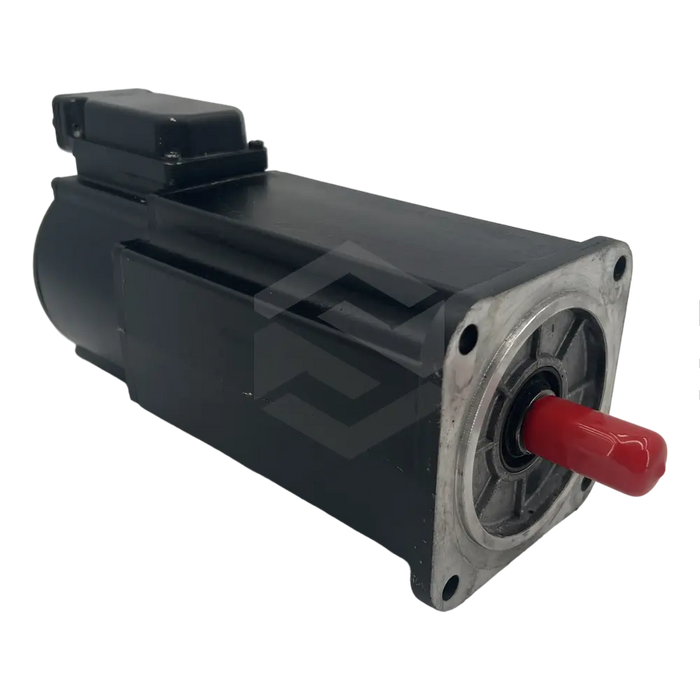

The MKD071B-061-KP1-KS is a versatile and reliable AC motor, produced by Rexroth Indramat, that offers high overload protection. Suitable for a wide range of industrial applications such as textile, paper, and handling systems, it operates at speeds ranging from 2000min-1 to 6000min-1. Its grease-lubricated bearings are designed for high radial loads, allowing for the direct connection of belt pulleys. It is crucial to ensure that all accessories connected to the motor are correctly configured to prevent dangerous movement during operation. With a leakage current exceeding 3.5 milliamperes in the servo system, the MKD071B-061-KP1-KS must be grounded using a copper wire of at least 10mm diameter, and it follows insulation class F according to DIN VDE 0530 Part 1. The motor features a shaft with a keyway according to DIN 6885-1, a junction box on side B, a winding inductance of 23 millihenries, and four pole pairs. Designed for operation at ambient temperatures between 0 and +40 degrees Celsius, it should be stored between -20 and +80 degrees Celsius when not in use. The MKD071B-061-KP1-KS can reach a maximum speed of 6000min-1 at a peak current of 28.3 amperes and comes with a one-year global warranty from Servo Supplier.
