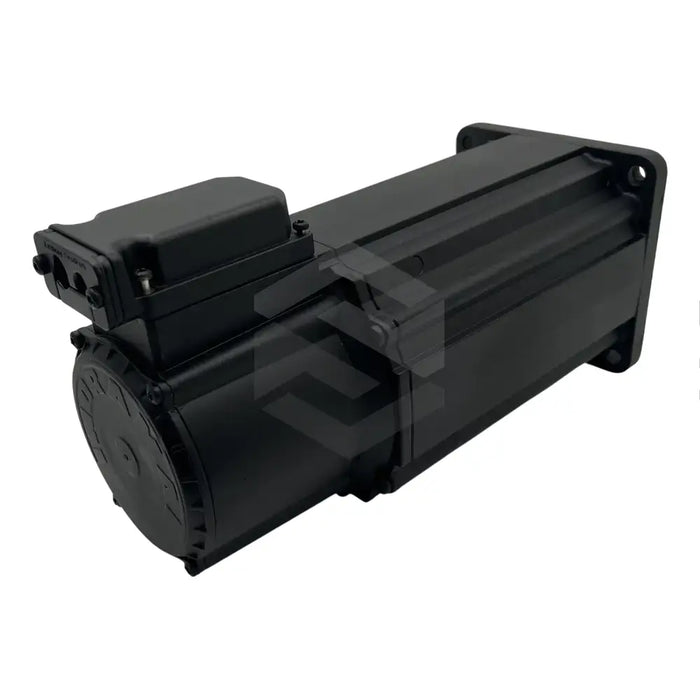

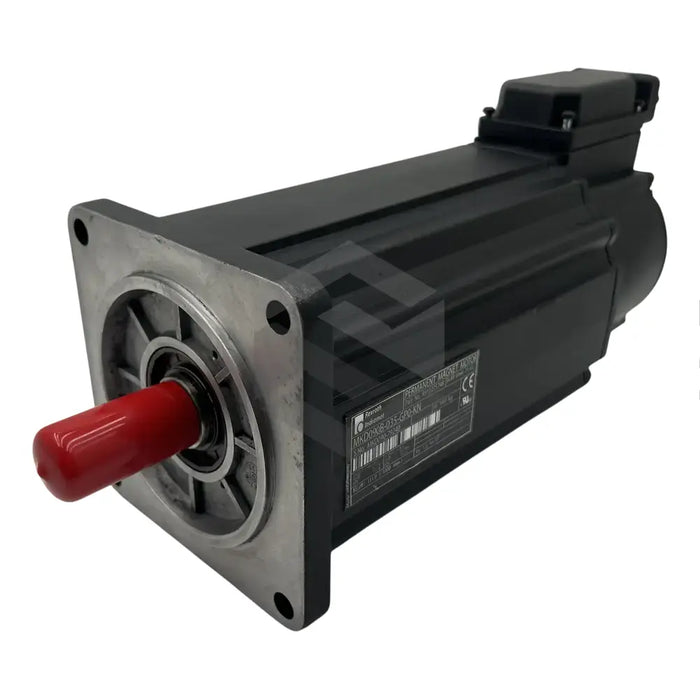

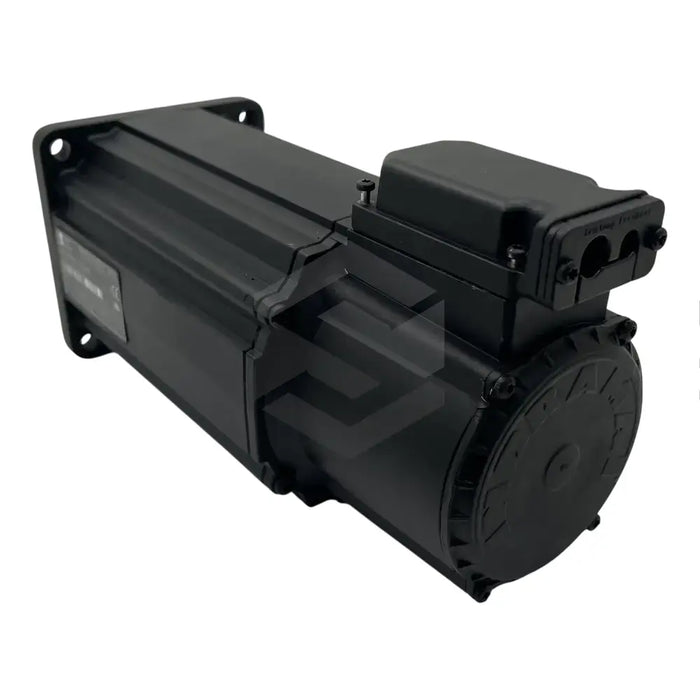

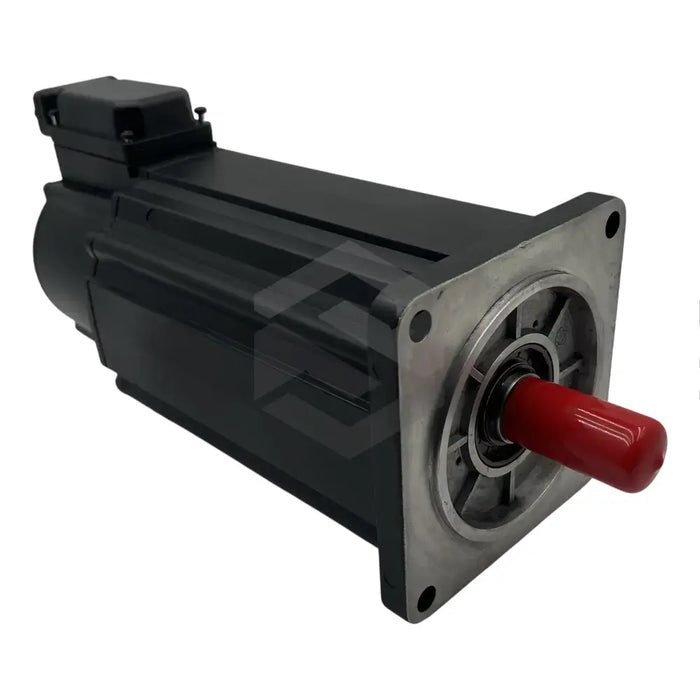

series image of MKD090B-035-GP0-KN

MKD090B-035-GP0-KN

by Bosch Rexroth Indramat
$7,604.67 - $7,604.67
$7,604.67
$7,604.67 - $7,604.67
$7,604.67
In Stock, Ships Today
Bosch Rexroth Indramat's MKD090B-035-GP0-KN is a synchronous motor renowned for its adherence to quality standards, performance, and safety criteria. These motors are highly compatible with current driver technologies and are ideal for feedback-based settings. This synchronous motor comes in three variants, each offering distinct power/torque outputs. Specifically, the naturally air cooled, 60K variant provides a torque of 7.2 Nm while the non-insulated 100K counterpart delivers 10.2 Nm of torque. The surface-cooled version, applicable for both 60K and 100K motors, possess a respectable torque of 15 Nm. Moreover, each variant operates at a rated speed of 3,000 RPM and weighs a relatively light 14.0 Kg. Also included is a resolver feedback unit for accurate detection of the motor shaft’s angle, which aides in closed-loop control operations. Plus, the drive shaft features a keyway per DIN 6885-1, and a shaft seal ring for smooth power transmission.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Type: Synchronous Motor
  • Model: MKD090B-035-GP0-KN
  • Variants: 3
  • Power/Torque Output Variant 1: 7.2 Nm
  • Power/Torque Output Variant 2: 10.2 Nm
  • Power/Torque Output Variant 3: 15 Nm
  • Rated Speed: 3000 RPM
  • Weight: 14.0 Kg
  • Feedback Unit: Resolver
  • Drive Shaft: DIN 6885-1 standard with sealing ring
