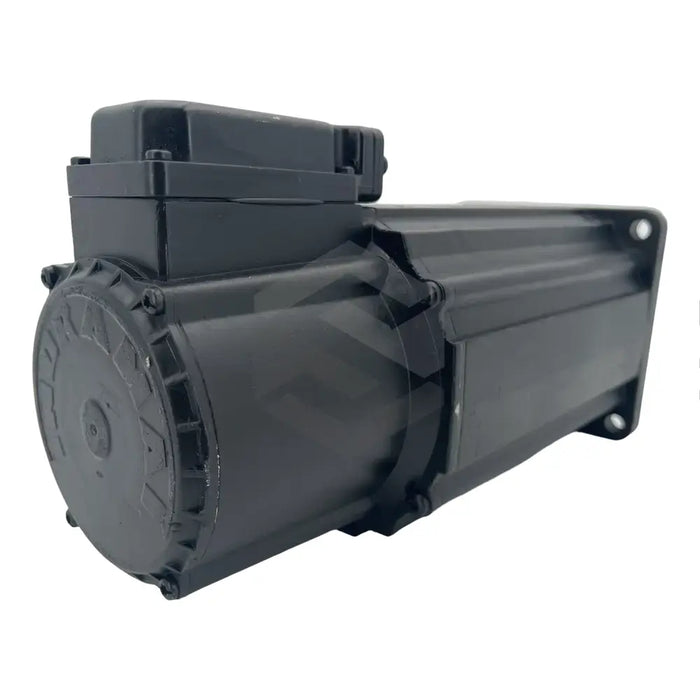

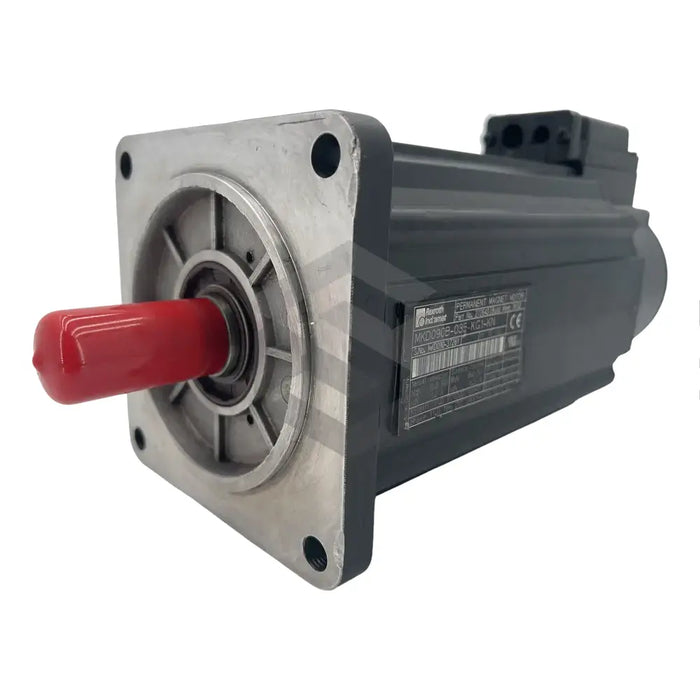

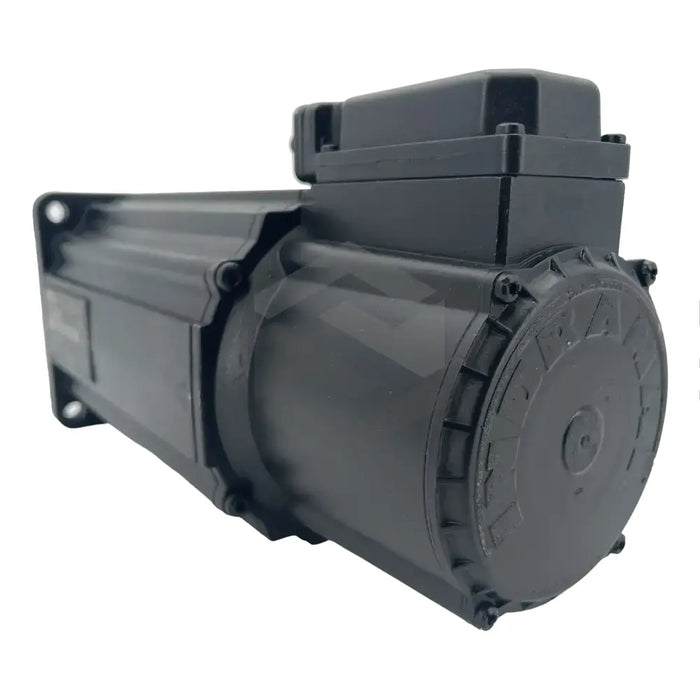

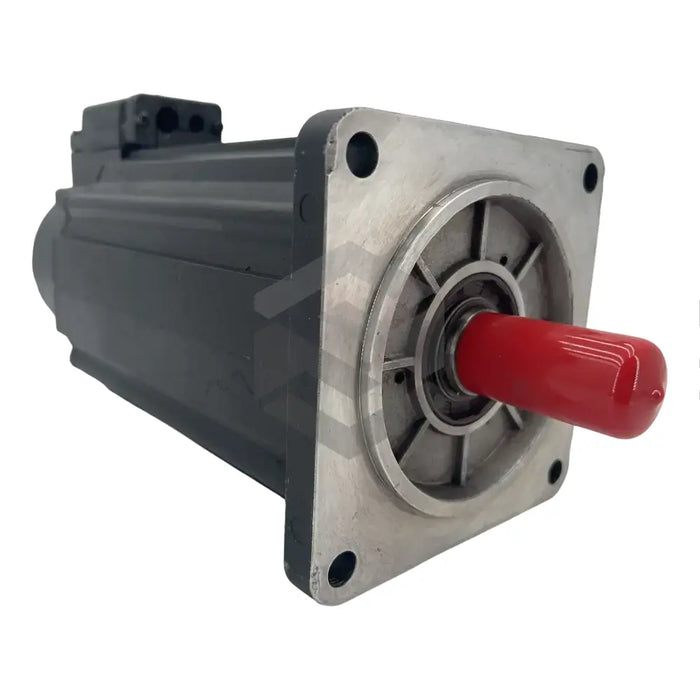

product Main (Front Left) image of MKD090B-035-KG1-KN

MKD090B-035-KG1-KN

by Bosch Rexroth Indramat
$9,115.09 - $9,115.09
$9,115.09
$9,115.09 - $9,115.09
$9,115.09
In Stock, Ships Today
The MKD090B-035-KG1-KN synchronous motors by Bosch Rexroth Indramat offers a superior solution for the mechanical, electrical, and engineering markets thanks to its leading technology. With an optimised electromagnetic design, this reduces torque ripple, ensuring increased product quality through constant path velocity. Key specifications include a maximum setup height of 1000m above sea level and a weight of 14kg. Boasting a rated speed of 3000 min-1 and a maximum of 5000 min-1, the motor's winding resistance and inductance aid in minimising internal losses. The motor operates between -20 to +80 degrees Celsius and can safely be stored within this temperature range. A F class insulation according to DIN VDE 0530 part 1 is implemented to ensure safety, while the motor's durable black housing aids longevity. The rated frequency and peak current for the motor under any cooling system is 2000 Hz and 49.5 A respectively, and it delivers a theoretical maximum torque of 43.4 Nm. With a voltage constant of 111V/1000 min-1 and a torque constant of 1.22 Nm/A, the motor's operational data may need to be adjusted if these specified limits are exceeded.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Type: Synchronous Motors
  • Model: MKD090B-035-KG1-KN
  • Maximum Setup Height: 1000m above NN
  • Minimum Strand Cross-Section: 1mm2
  • Motor Mass: 14.0kg
  • Rated Speed: 3000 min-1
  • Maximum Speed: 5000 min-1
  • Optimal Winding Resistance: 1.88 Ω
  • Winding Inductance: 15.5 mH
  • Pole Pairs: 4
  • Storage Temperature: -20 to +80 degrees Celsius
  • Permissible Ambient Temperature: 0 to 40 degrees Celsius
  • Insulation Class: F
  • Housing Coat: Prime Black a/w RAL 9005
  • Rated Frequency (Any Cooling System): 2000 Hz
  • Peak Current (Any Cooling System): 49.5 A
  • Theoretical Maximum Torque (Any Cooling Method): 43.4 Nm
  • Voltage Constant: 111V/1000 min-1
  • Torque Constant: 1.22 Nm/A
