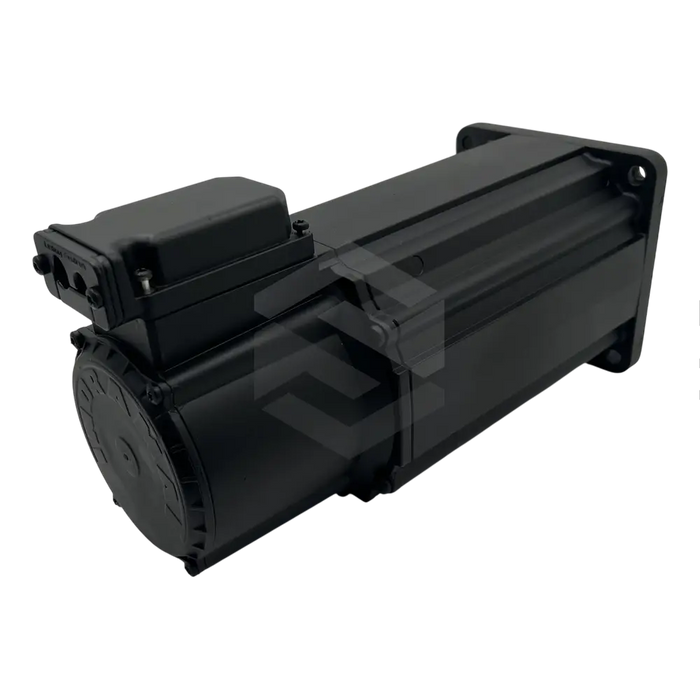

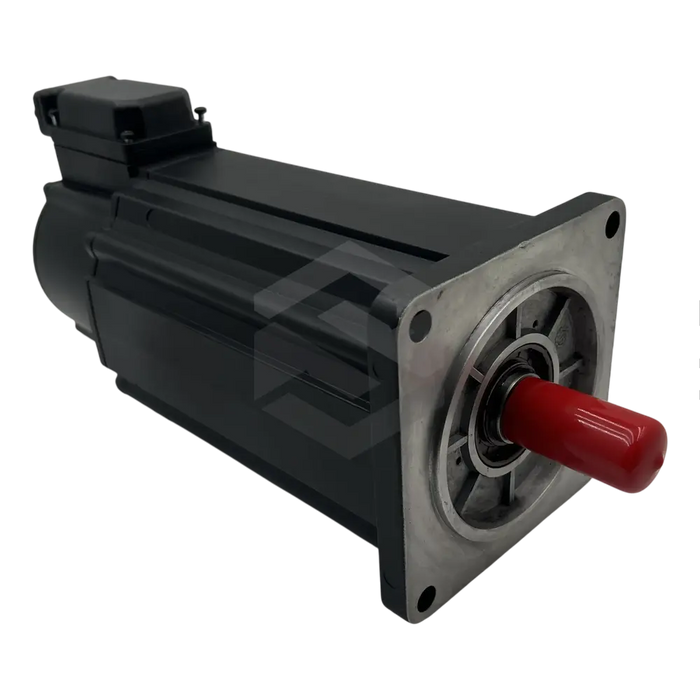

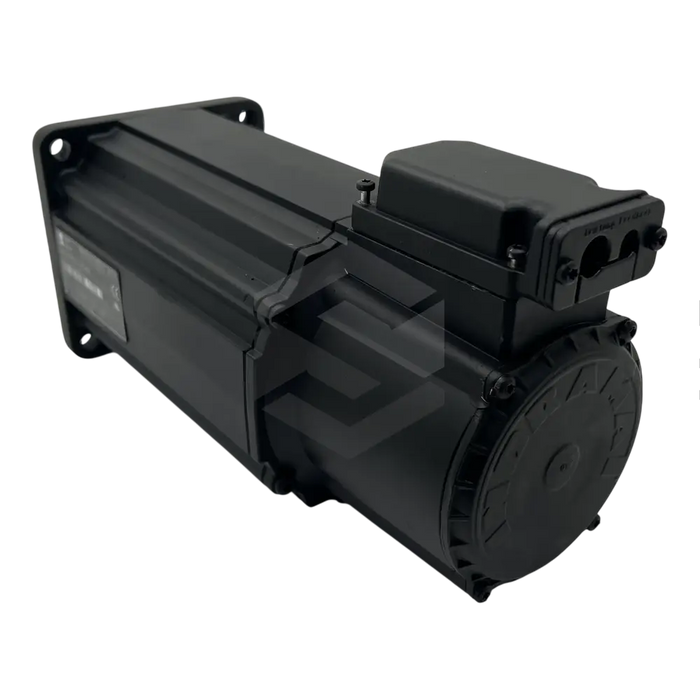

MKD090B-047-GP0-KS
The MKD090B-047-GP0-KS is a high-performance synchronous motor by Bosch Rexroth, designed for industrial automation applications. Featuring a B05 flange mounting design, this motor offers installation flexibility with IM B5, IM V1, and IM V3 mounting positions. Equipped with motor temperature monitoring, easy cabling, and a quick start-up due to data memory in its motor encoder unit, this motor delivers high dynamics and overload protection. With an AC voltage range of 332-371 V, rated power of 2.7-6.4 kW, and a rated speed of 3500 rpm, it produces continuous torque of 6.2-14.4 Nm and a continuous current of 4.8-11.2 A. The MKD090B-047-GP0-KS model employs a cooling system that uses natural air or an optional radial blower unit for surface cooling and incorporates a digital resolver feedback for speed/position control. The rotor features a key with shaft sealing rings, and a junction box on top of the motor ensures easy power connection. With an IP 65 protection standard, it is resistant to solid particles and water jets, and can be stored and transported between temperatures of -20 to +80 degrees Celsius. The motor's total weight is approximately 14 kg, and it comes with a one-year warranty from Servo Supplier.
30 Day Warranty
