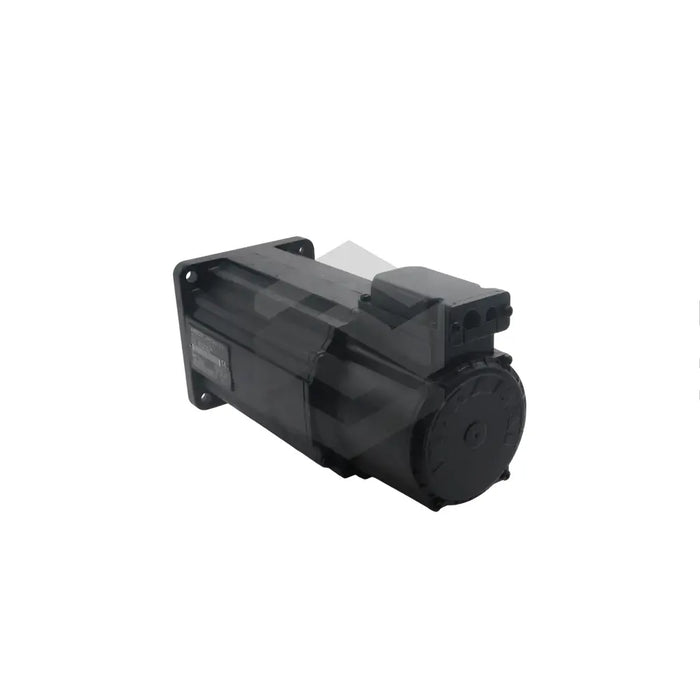

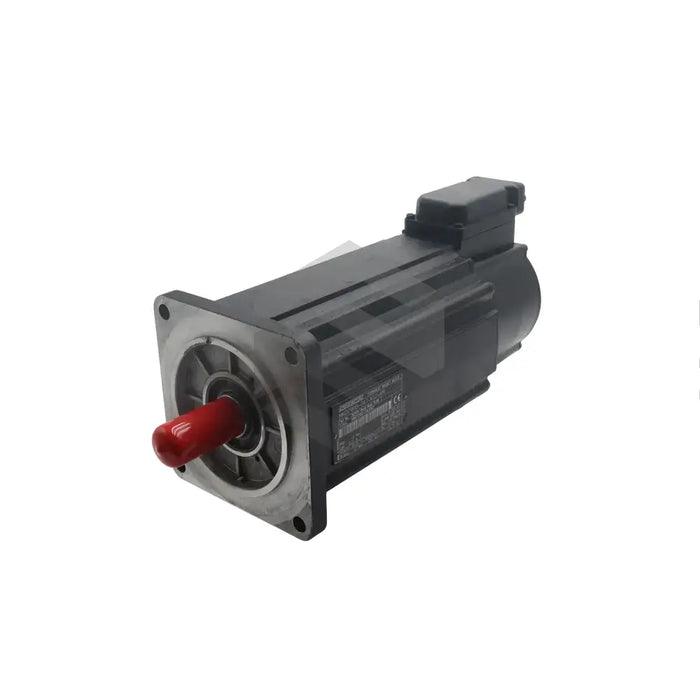

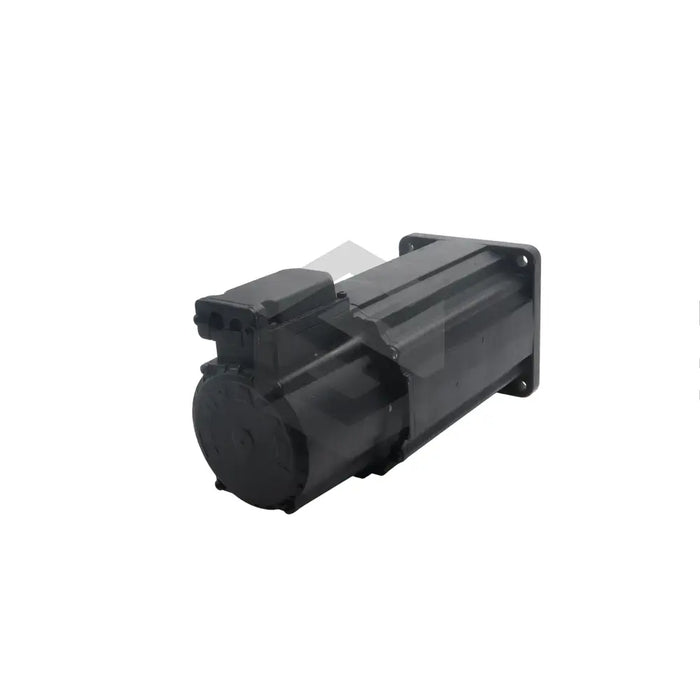

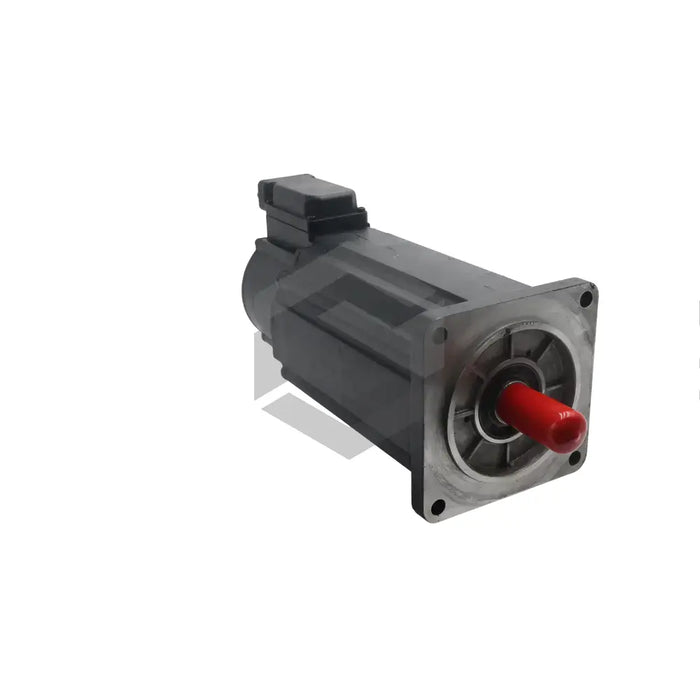

MKD090B-047-KG1-KN

Original price $2,698.00 - Original price $2,698.00
Original price
$2,698.00
$2,698.00 - $2,698.00
Current price $2,698.00
In Stock, Ships Today
Request a quote
The Bosch Rexroth Indramat MKD090B-047-KG1-KN is a meticulously engineered synchronous motor. With a motor size of 090 and a motor length of group B, it is designed to reduce automation costs across various industries. It features a windings code of 047 and uses a motor encoder with resolver feedback and an integrated multiturn absolute encoder. The plain driven shaft comes with a sealing ring. This model has an 11Nm holding brake and a standard housing design. The power output direction is via a terminal box to side B. Its highly efficient design delivers reliable, maintenance-free operation, even in harsh environments. Its closed motor design combined with motor temperature monitoring offers overload protection. Improved heat dissipation and electronic commutation contribute to its high overload capacity and a wide speed range. It is easy to install and can be positioned as desired.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat Group
  • Product Line: MKD Synchronous Motors
  • Model: MKD090B-047-KG1-KN
  • Motor Size: 090
  • Motor Length Group: B
  • Windings Code: 047
  • Motor Encoder: Resolver feedback with integrated multiturn absolute encoder
  • Driven Shaft: Plain with shaft sealing ring
  • Holding Break: 11Nm
  • Housing Design: Standard
  • Power Connection Output Direction: Terminal box to side B
  • Operating Condition: Adverse environment due to sealed motor design
  • Temperature Monitioring: Yes, for overload protection
  • Heat Dissipation: From stator windings to the outside wall of motor housing
  • Communtation: Electronic for peak torque utilization across wide speed range
  • Installation: Easy, with quick startup and flexible positioning.
