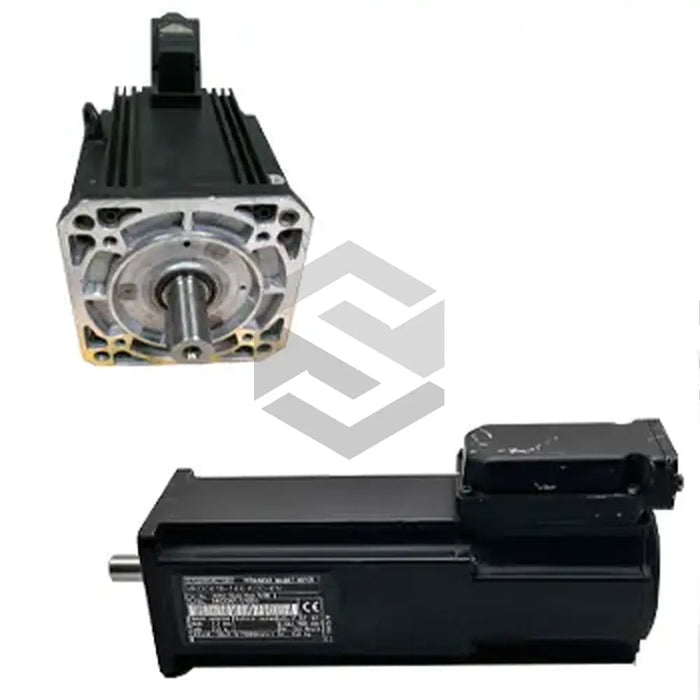

MKD090B-085-KP1-AN
The Rexroth Indramat MKD090B-085-KP1-AN model represents a significant advancement in synchronous motors. With a power connector situated atop the motor delivering power to side-A, this dependable equipment features a winding code of 085 along with a B05 flange design, offering versatile installation options like IM B5, IM V1, and IM V3. Its durable housing is given a black prime coat for protection against environmental elements and diluted acids, with an alternative unpainted version available for specific applications, such as food industries. It includes a 24 VDC holding brake generating a holding torque of 22 Nm at a 0.71 A rated current, and efficient clamping and release times of 13 and 30 microseconds respectively. The MKD090B-085-KP1-AN employs grease-lubricated bearings guaranteed to last up to 30,000 operating hours under high radial loads and a resolver feedback with integrated multi-turn absolute encoder enable effective position detection. The balanced output shaft includes radial shaft sealing rings, making this model a suitable choice for several automation systems and machine tools. An optional blower offers cooling under high load conditions. The motor is housed within an IP 65 rated protection chassis, operative within a 0-40 degree Celsius range. Each unit is globally shipped with a one-year warranty from Servo Supplier.
