MKD112A-024-GG1-BN
Original price
$3,146.85
-
Original price
$3,146.85
Original price
$3,146.85
$3,146.85
-
$3,146.85
Current price
$3,146.85

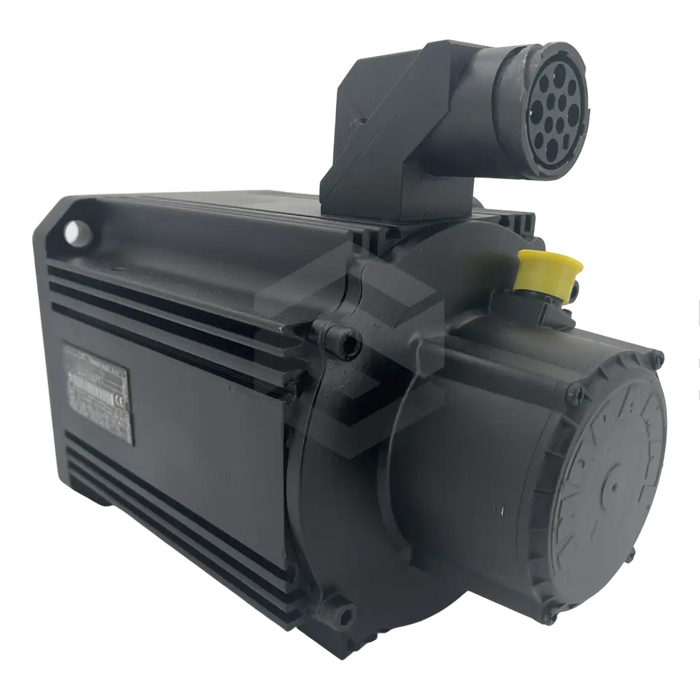

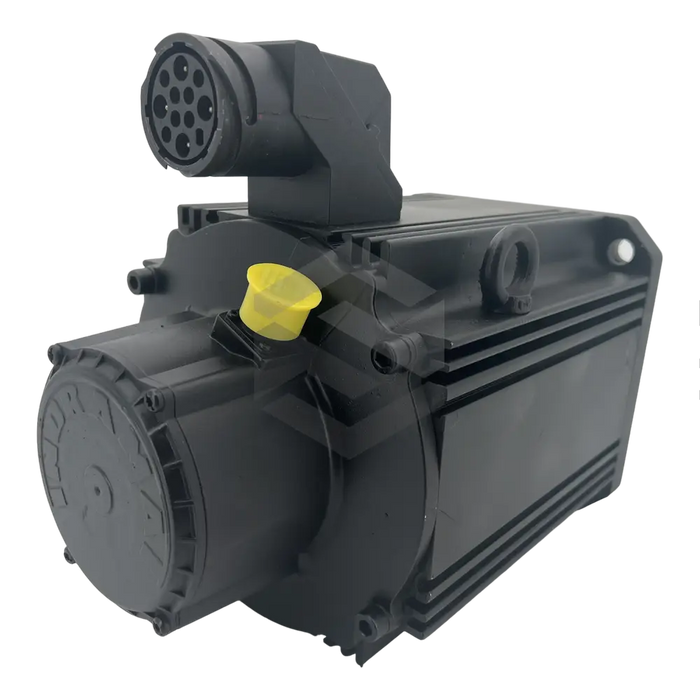

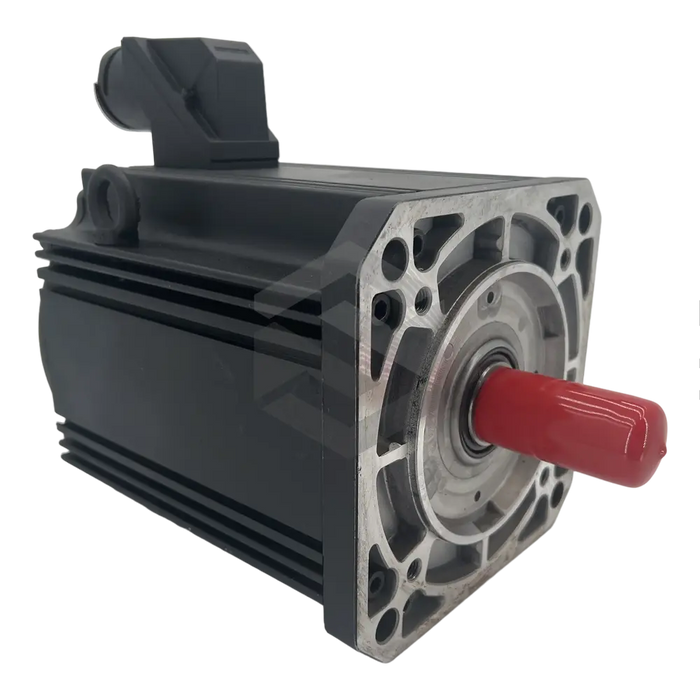

The part number for this product is MKD112A-024-GG1-BN, developed by Rexroth Indramat at Bosch Rexroth. Designed to be used as an automation system, this synchronous motor is both a servo and main drive motor. With a broad power spectrum, it operates at a nominal voltage range of 314-355 V, producing a rated torque of 10.1-19.4 Nm. Simultaneously, it sustains a current capacity between 6.2-12 A, pushing it to a rated speed of 2500 rpm to generate power between 3.2-6.4 kW. This motor's operations heavily rely upon its configuration and set parameters. In cases of extreme load conditions, the motor employs an optional axial blower unit for surface cooling, supplementing its natural convection mechanism. With a resolver feedback and plain output shaft punctuated with shaft sealing rings, it weighs approximately 23 kg. To control servo axis during deceleration, the motor integrates a 22 Nm holding brake. Bearing an IP 65 protection rating, it can optimally function within a temperature range of 0-40 degrees Celsius, and can achieve a maximum speed of 4500 rpm, if necessary.
