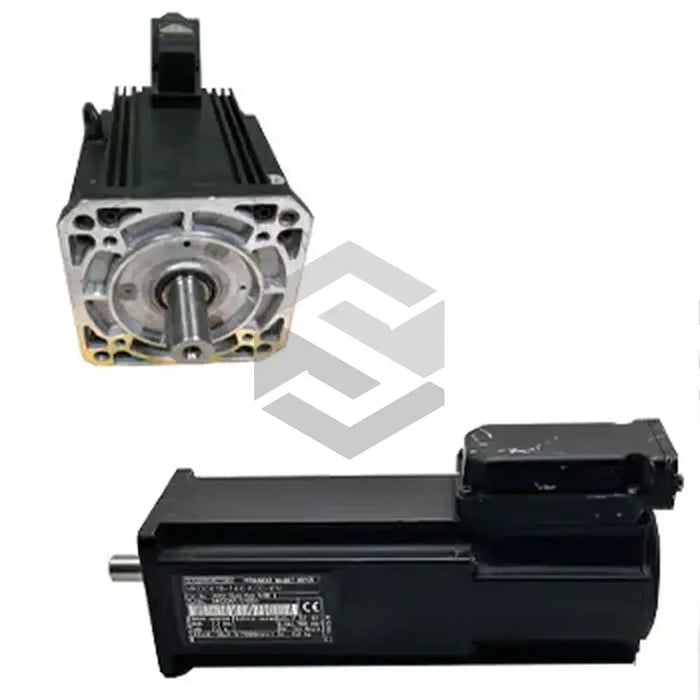

MKD112A-024-GP1-AN
The MKD112A-024-GP1-AN is a superior Bosch Rexroth product, renowned for its application in automation. This high-performance synchronous motor is designed with a B05 flange mount that supports multiple mounting positions specifically IMB5, IMV1, and IMV3. The black prime-coated motor housing showcases exceptional resistance against weather, chalking, and diluted acids. It operates at a nominal voltage of 314/332 V with 60-K/100-K overtemperature, delivering a nominal torque of 10.1/13.8 Nm at a nominal current of 6.2/9.1 A. The motor also features surface cooling and operates at a nominal voltage of 355 V, delivering 19.4 Nm torque at 12 A nominal current. Operating at 20 degrees Celsius, the motor offers 1.28 Nm/A torque and generates a 1.45 Ohm winding resistance. The MKD112A-024-GP1-AN supports ambient air-cooling and can be optionally fitted with an axial blower unit. This model features a 22 Nm holding brake and digital resolver feedback for refined motor communication. With a peak performance temperature range of 0-40 degrees Celsius and an IP65 protection class, this motor is fitted with a keyway rotor delivering 3.2 - 6.4 kW at the output shaft. Available for global shipping with a one-year warranty from Servo Supplier.
