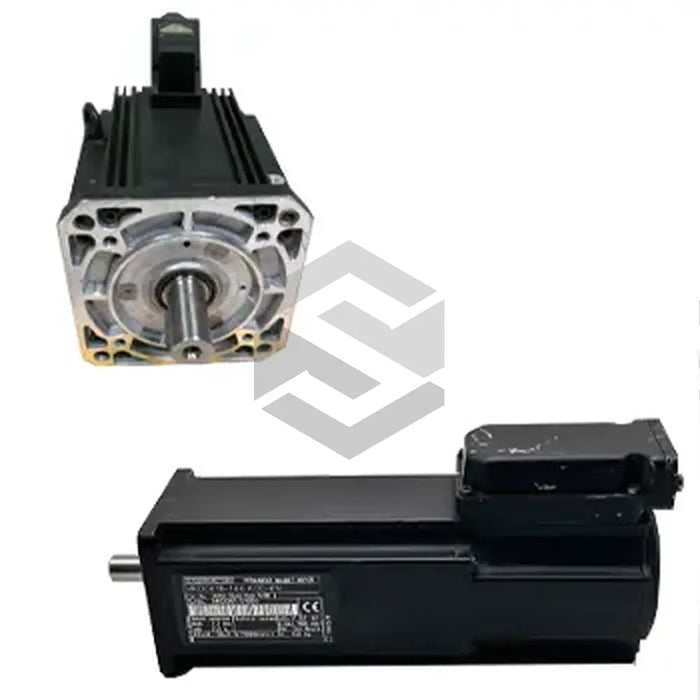

MKD112A-024-KG1-AN
The Bosch Rexroth Servo Motor MKD112A-024-KG1-AN, part of the renowned MKD series, runs at variable speeds and offers diverse torque ratings. With a torque constant of 1.28 Nm/A at 20°C, the motor features a voltage constant of 116.4 V/1000 RPM and a winding resistance of 1.45 Ohms. This motor’s inductance measures at 14 millihenry, with a speed capacity from 2500 RPM to a maximum of 4000 RPM. Torque and power ratings vary from 10.1 Nm to 13.8 Nm and 3.2 kilowatts to 4.8 kilowatts respectively, under 60K and 100K overtemperature conditions. Showcasing a 22 Nm rated holding brake, the MKD112A-024-KG1-AN also offers performance specifications like a 1.1 kilograms weight, 25 millisecond clamping delay, and a 24 Volts voltage rating. This motor is designed for ideal operation under ambient conditions of up to 3300 feet setup height and between 0 and 40°C temperatures, with possible output derating up to 20% at a maximum of 55°C. Located on side A, the power connector accompanies a plain main shaft with a sealing ring. Enhanced with a resolver feedback mechanism and integrated multiturn absolute encoder, the motor possesses a durable IP 65 rated housing and Class F insulation per DIN VDE 0530. Globally shipped, it comes with a one-year warranty via Servo Supplier.
