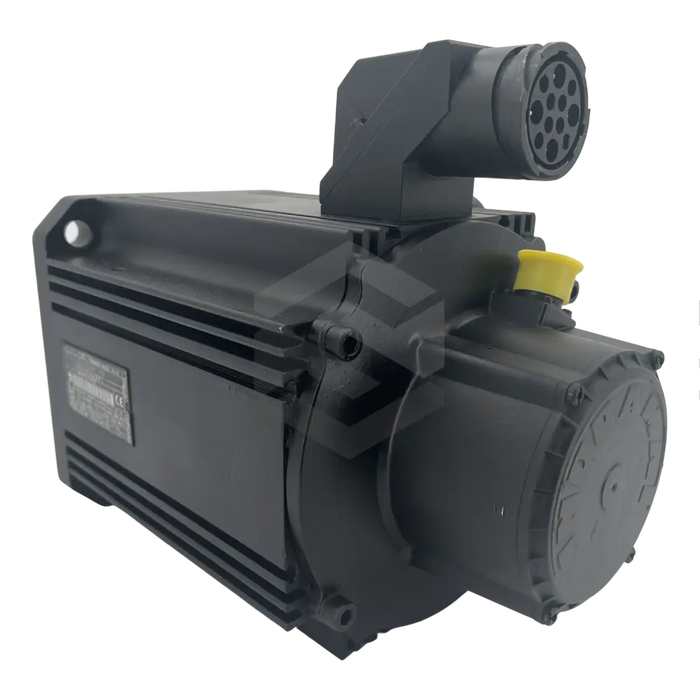

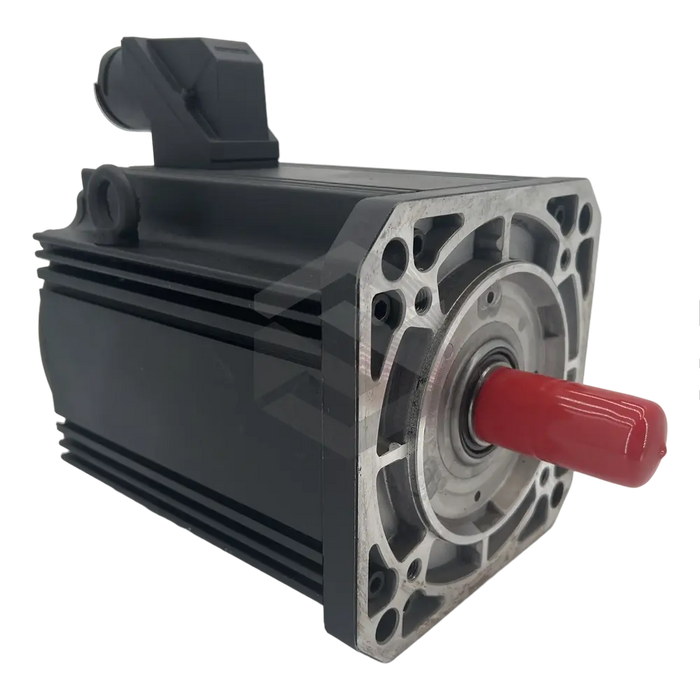

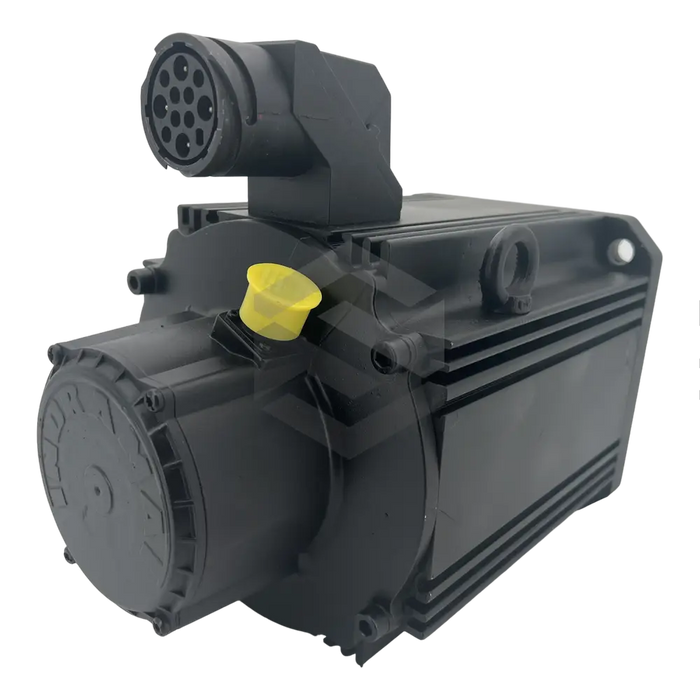

MKD112A-024-KG1-BN

Original price $3,535.00 - Original price $3,535.00
Original price
$3,535.00
$3,535.00 - $3,535.00
Current price $3,535.00
In Stock, Shipping Varies
Request a quote
The Bosch Rexroth MKD112A-024-KG1-BN Synchronous Motor, applicable to Rexroth drives, finds its utility in diverse industrial sectors - from printing, paper, and food manufacturing to machine tool production. This highly reliable and dynamic motor is distinguished by its wide controllable speed range, overload protection, and high peak torque. It offers flexibility in installation, offering different orientations, and ease in cabling thanks to varied design cable sets available. Important features include a side B connector for power and encoder, an integrated holding brake, resolver feedback, and a plain shaft with a shaft sealing ring. Its holding brake offers 22Nm torque. MKD112A-024-KG1-BN motor's multi-turn absolute encoder ensures position information tracking even after 4096 revolutions. This motor, featuring a 192mm flange size and 130mm centering diameter, is defined by a 024 winding code with 1.45 Ohms resistance and 14.0 millihenry inductance. It holds four pole pairs and has a 110 x 10-4 kg m2 rotor inertia. The motor guarantees a maximum speed of 4000 RPM, a nominal speed of 2500 RPM, and a theoretical peak torque of 54 Nm. It weighs 23 kg, has an ideal storage temperature range of -20 to 80 degrees Celsius and a maximum installation altitude of 1000 meters. It's accompanied by a global one-year warranty from Servo Supplier.
30 Day Warranty
