MKD112A-024-KP0-AN

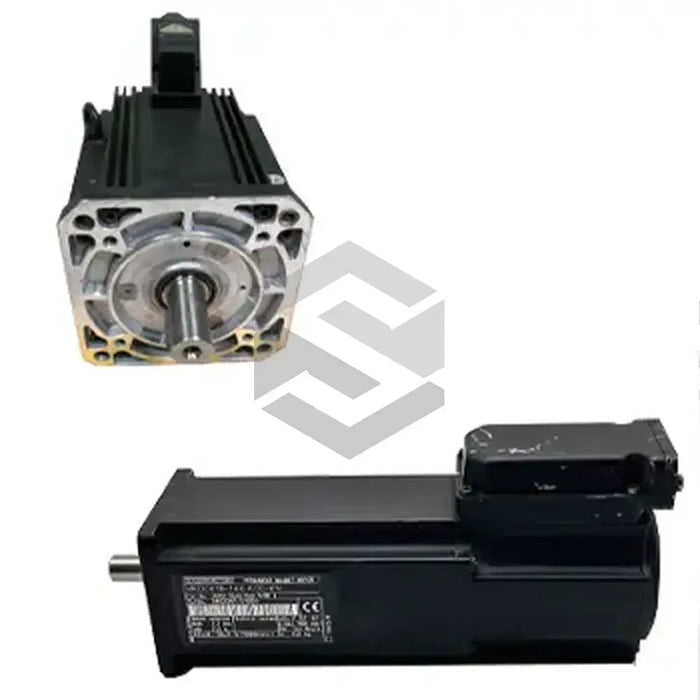

The product in focus is the Bosch MKD112A-024-KP0-AN, a synchronous servo motor equipped with modern electronic commutation. This motor utilizes specially-engineered magnets that contribute to its notably low inertial mass. When installing and operating the MKD112A-024-KP0-AN, it is paramount to adhere strictly to Bosch's guidelines and only use specified accessories. This motor is designed to interface with diligently configured drives and is created to function optimally under environmental conditions defined in the official Bosch documentation. The MKD112A-024-KP0-AN offers a characteristic motor speed of 2000 RPM with a maximum speed of 5000 RPM. With a DC link voltage of 540 volts, at its characteristic speed, it can output a continuous torque that is half of the torque at standstill. Its rated speed is 2500 RPM, but other useful speeds are available as depicted in the speed-torque curve. The MKD112A-024-KP0-AN comes without a holding brake, has a motor power connector situated on side A, and provides resolver feedback. It uses a shaft conforming to DIN 6885-1 standards with a shaft sealing ring. Globally available, the motor includes a comprehensive one-year warranty courtesy of Servo Supplier.
