MKD112A-058-GP1-AN

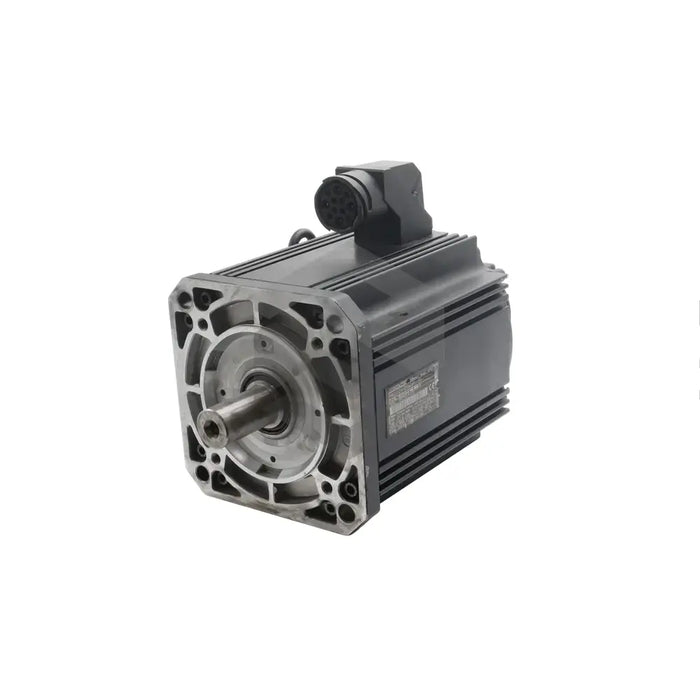

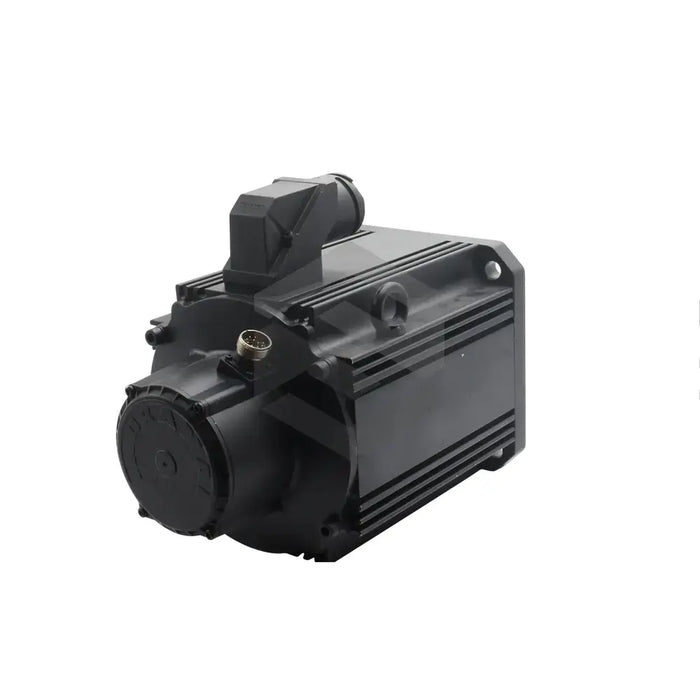

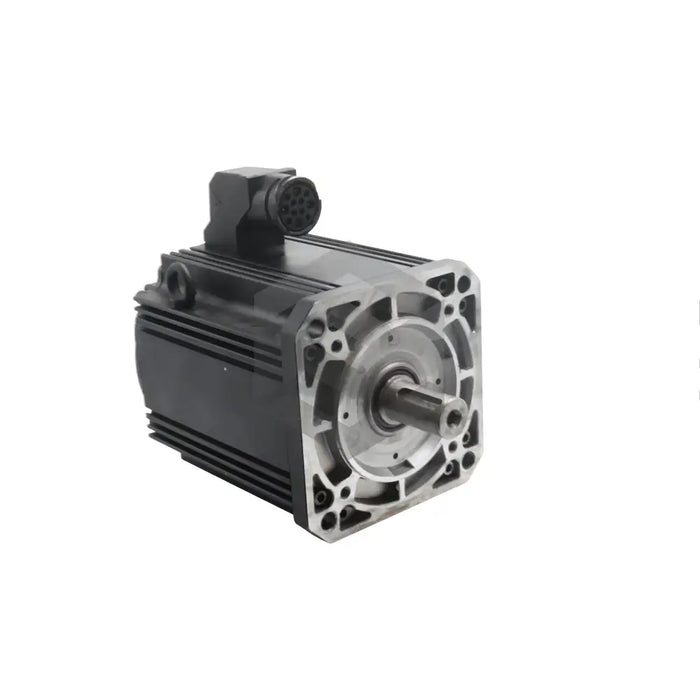

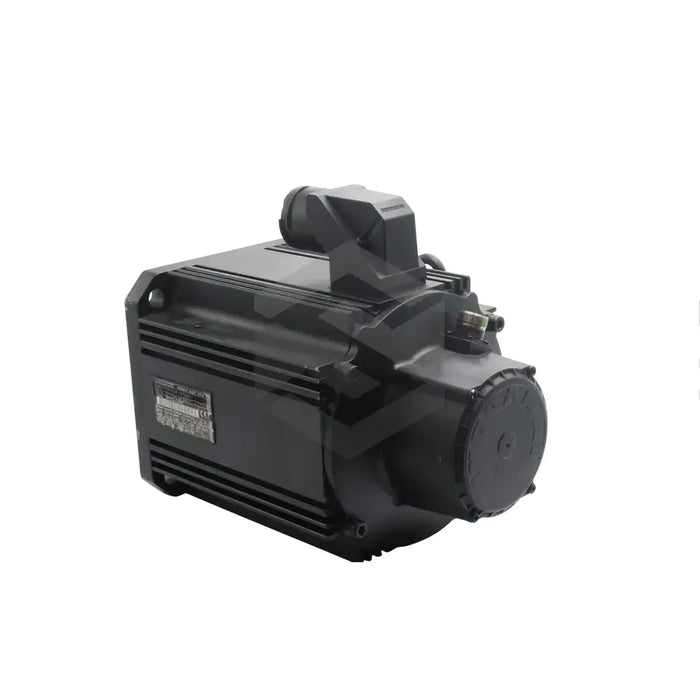

The part number MKD112A-058-GP1-AN refers to a Rexroth Indramat MKD Servo Motor, renowned for its reliable dynamics, overload protection, and efficiency when paired with Rexroth drive controllers. Its common applications stretch across various industries from food, machine tools to printing and packaging. This permanent-magnet synchronous servomotor features electronic commutation and a low-inertia design. Its key functionality lies in being a main drive or servo drive motor, supported by a pre-parameterized drive controller for specific applications. The specifications, including a motor size 112" implying a flange size of 192mm and a motor frame length "A" personifying 15 Nm continuous torque make it unique. Its windings code is 058 with an inductance rated at 7.8 mH. The presence of a resolver feedback type encoder system for speed and positional control a plain driving shaft and sealing ring assembly are notable features. This equipment lacks a holding brake and has the cable output direction at side A. The MKD112A-058-GP1-AN operates at characteristic speed and rated speed of 4000 rpm and 3500 rpm respectively with a total of 77 A peak current and the frequency is rated at 233 Hz. It comes with a global shipment option and a one-year warranty from Servo Supplier making it a safe and reliable choice within its operational boundaries."
