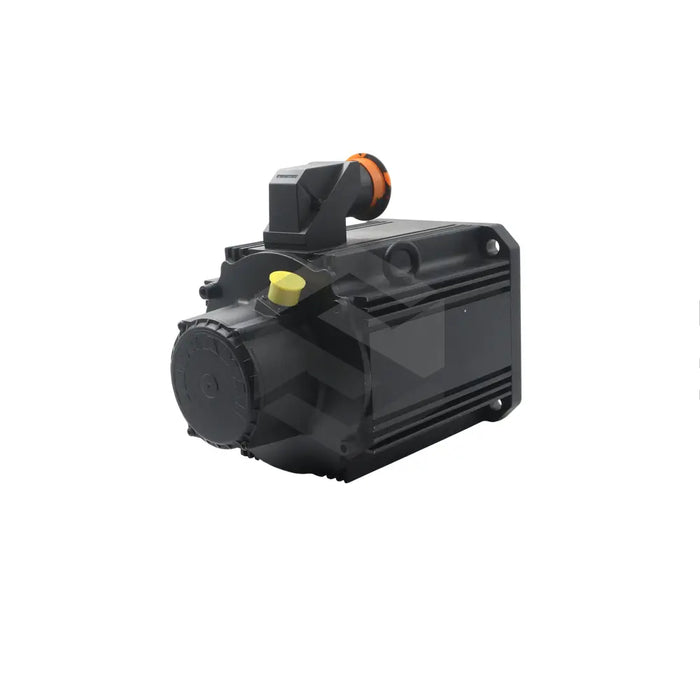

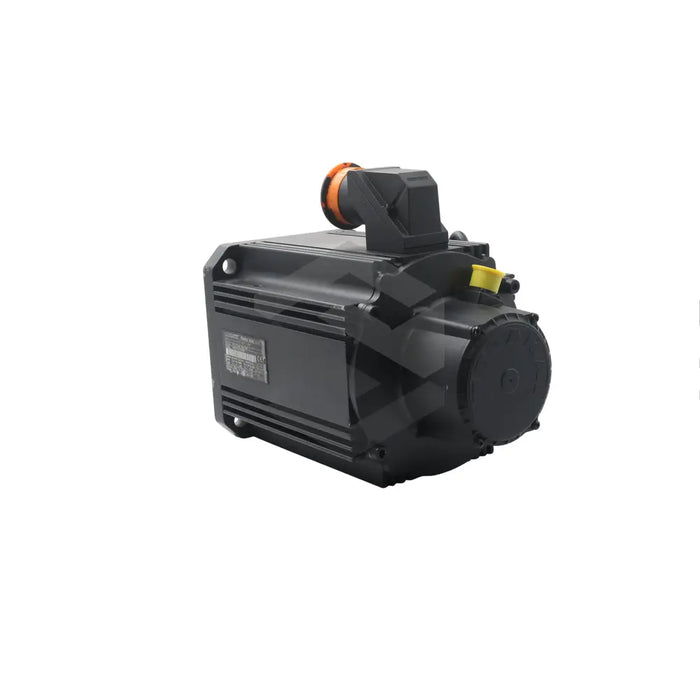

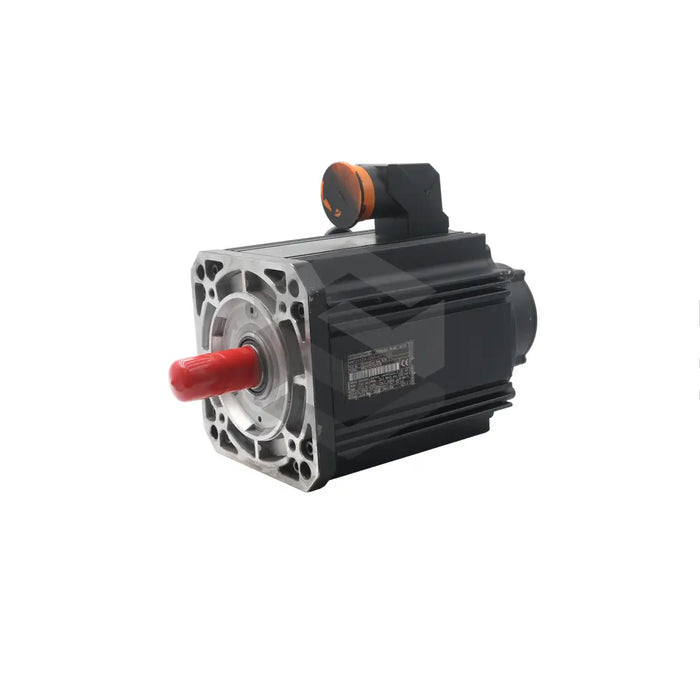

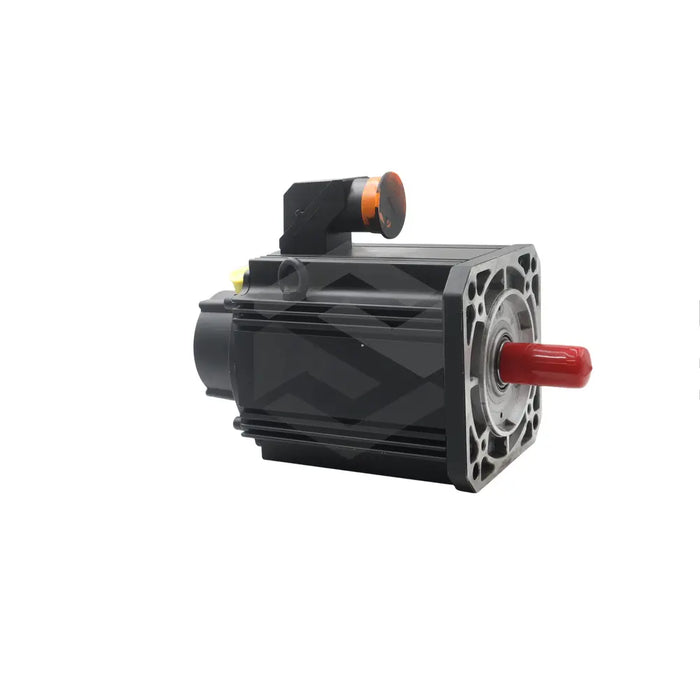

MKD112A-058-KG1-AN

Original price $14,608.00 - Original price $14,608.00
Original price
$14,608.00
$14,608.00 - $14,608.00
Current price $14,608.00
Available, Shipping Varies
Request a quote
Part number MKD112A-058-KG1-AN is an AC motor with a superior performance profile produced by Bosch Rexroth. The motor is size 112, has a length of 15 Nm (coded 'A') and a weight of 23 kg. Its current peak capacity is 77 Amperes and holds electrical connections via a plug-in connector. A voltage constant of 89 V/1000min-1 and a torque constant of 0.98 Nm/A are measurable at a standard ambient temperature of 20 degrees Celsius. Its rotor moment inertia is rated at 0.0110 kgm2, and it possesses a winding inductance of 7.8 mH. Positioned on side A of the motor is a power connection, and it utilizes a resolver feedback mechanism to run the built-in multiturn-absolute encoder. Its 20 Nm holding brake, which operates on a nominal current of 0.71 Amperes and a nominal voltage of DC 24 Volts ±10%, is complemented by a plain output shaft. The standard-design motor, coated in basic black (RAL 9005), has a maximum installation height of 1000 m ASL and an operating speed of 3500 rpm. It can produce up to 54 Nm of torque in theory. Rated IP65 for protection, it can function optimally between 0 and 45 degrees Celsius. Transport and storage temperatures should range from -20 to +80 degrees Celsius. Under DIN VDE 0530-1, its insulation class is F. Global shipping comes along with a 1-year warranty from Servo Supplier.
30 Day Warranty
