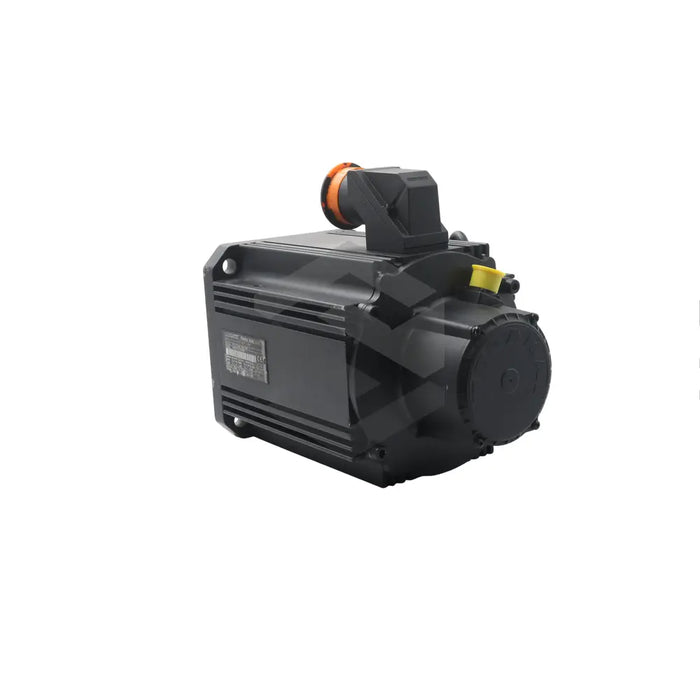

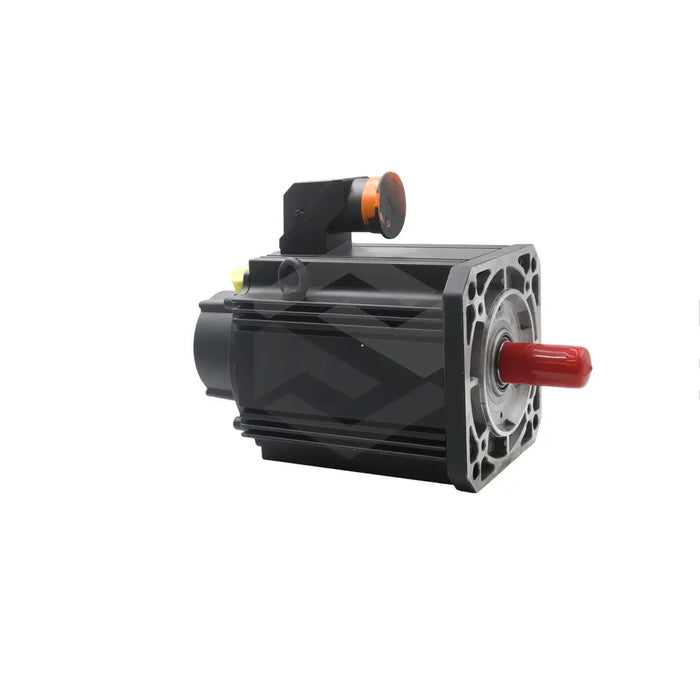

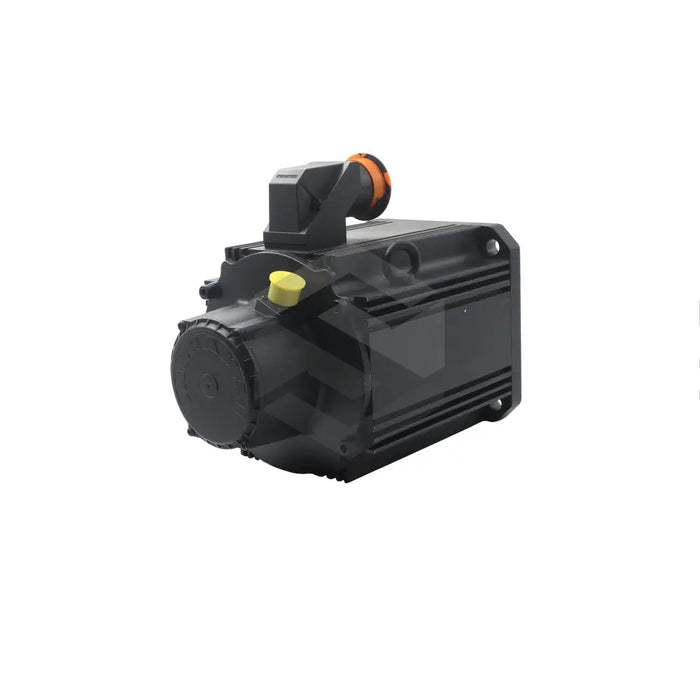

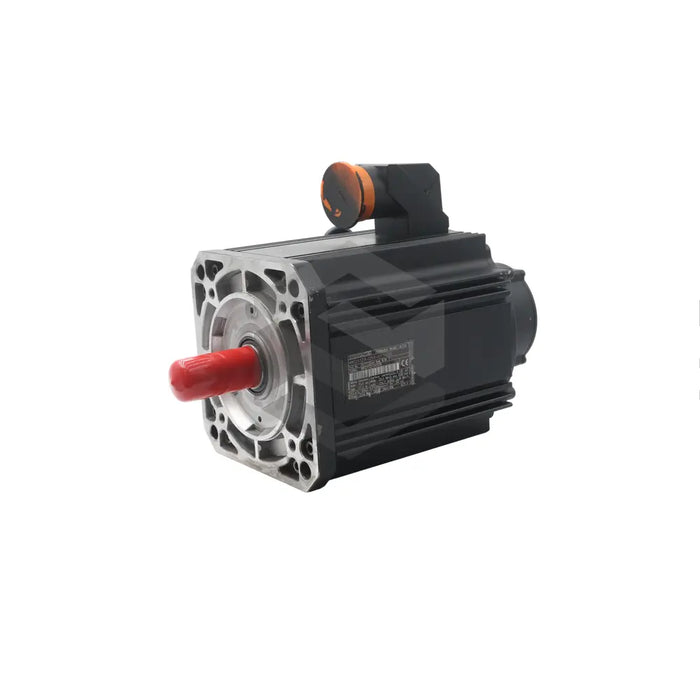

MKD112A-058-KG1-BN
The product in question, part number MKD112A-058-KG1-BN, is a Bosch Rexroth sequential AC motor from the MKD series. This versatile and reliable product excels substantially over a wide speed range due to its high peak torque capacity. It stands out for its durability, as well as its simplified and user-friendly installation process. The motor's extensive frame size of 112, combined with a 192mm flange size and frame length of A, adds to its robust design.
MKD112A-058-KG1-BN is equipped with a built-in holding brake, featuring a 20 Nm torque and a 0.71 Ampere current rating. The brake operates at a nominal voltage of 24 Volts DC (+/- 10%) and weighs 1.1kgs. With its fast response time and optional external control, the holding brake guarantees maximum convenience.
This motor also incorporates a PTC temperature sensor located in the windings. It is designed to function optimally at an altitude range of 0-1000 meters above MSL and can efficiently operate within an air temperature range of 0 – 45 oC. The MKD112A-058-KG1-BN, which complies with International Protection code 10, is shockproof, dustproof, and resistant to jet-water, ensuring longevity. Presented in a prime black coating, the motor also possesses resistance to discolouration, diluted lyes, weather conditions, diluted acid, and chalking. Our company promises worldwide shipment with a one-year warranty period.
