MKD112B-024-GP0-AN

Original price $5,724.00 - Original price $5,724.00
Original price
$5,724.00
$5,724.00 - $5,724.00
Current price $5,724.00
In Stock, Ships Today
Request a quote

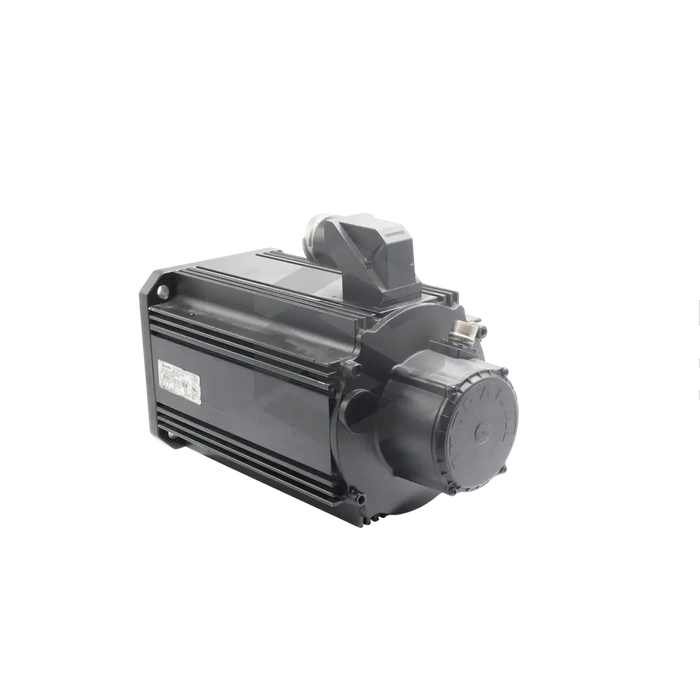

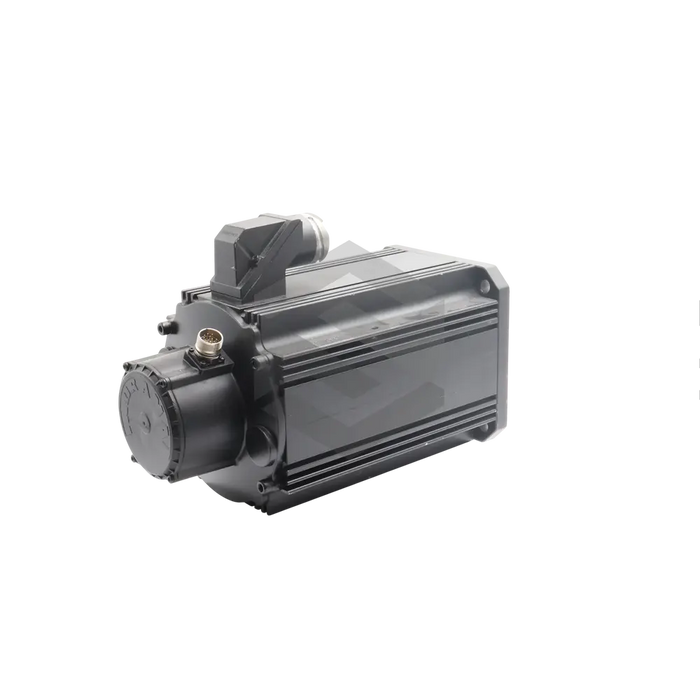

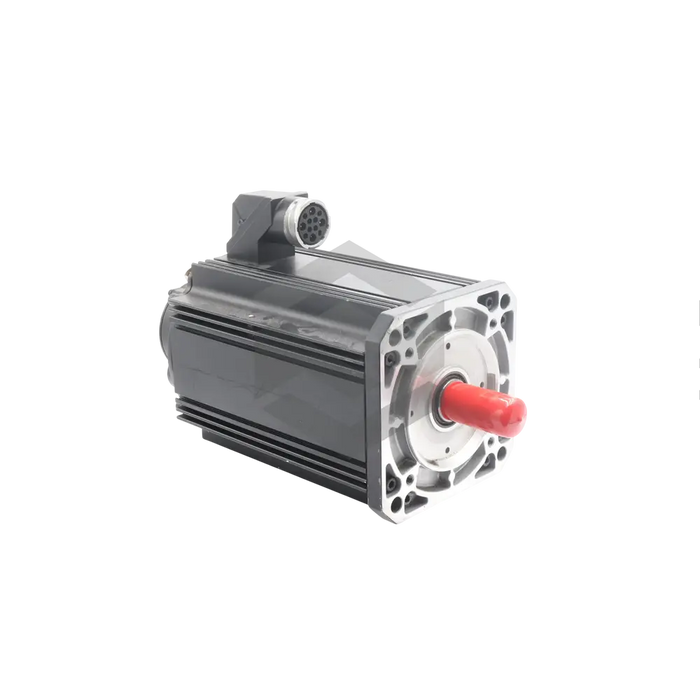

The Bosch Rexroth MKD112B-024-GP0-AN is a high-performance synchronous motor designed for reliability, high dynamics, and maintenance-free operation within the MKD series. Constructed with special materials and low inertia masses, it offers electronic communication for optimal functioning. It boasts a 112 frame size, a 192mm flange size, and a centering diameter of 130mm. It offers a continuous torque of 28.0Nm, specified by the B frame length, and uses a 024 winding code. The motor incorporates a resolver-feedback for precise motor location aware of speed and position. Equipped with an output shaft containing a keyway as per DIN 6885, the motor is balanced with a full feather key. MKD112B-024-GP0-AN does not include holding brakes but offers an A-side directed output connector. The motor operates within a 0-40 degrees temperature range and doesn't exceed an installation height of 1000 meters above sea level. It weighs about 23.0 kg and carries a 1P 65 protection category.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth
  • Product Series: MKD
  • Product Model: MKD112B-024-GP0-AN
  • Communication: Electronic
  • Material: Special Magnet
  • Frame Size: 112
  • Flange Size: 192mm
  • Centering Diameter: 130mm
  • Continuous Torque: 28.0Nm
  • Winding Code: 024
  • Feedback: Resolver feedback
  • Output Shaft: With Keyway and end-sided centering hole
  • Keyway: According to DIN 6885
  • Balancing: Complete Feather Key
  • Brakes: None
  • Output Connector Direction: Side A
  • Ambient Temperature Range: 0-40 degrees
  • Installation Height: Up to 1000 meters above sea level
  • Pole Pairs: 4
  • Rated Current: 59,0 A
  • Torque Constant at 20 C: 1,28 Nm/A
  • Weight: 23.0kg
  • Protection Category: 1P 65
