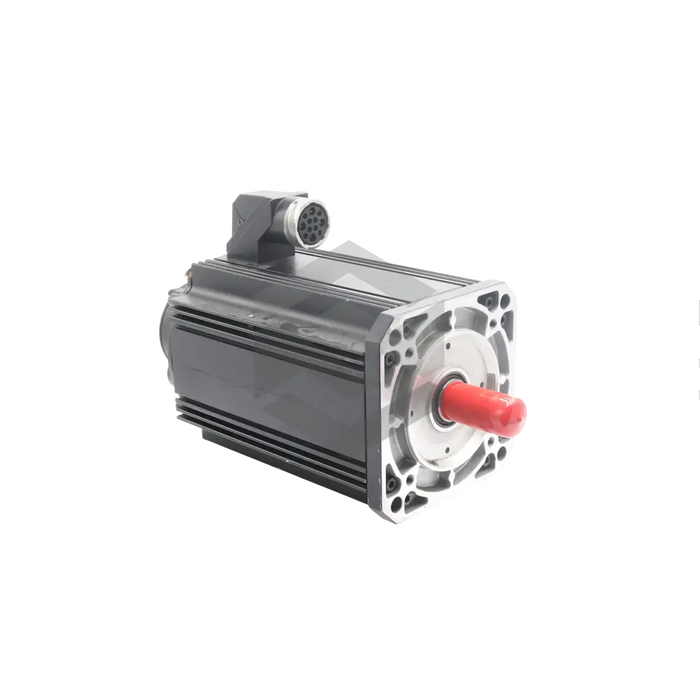

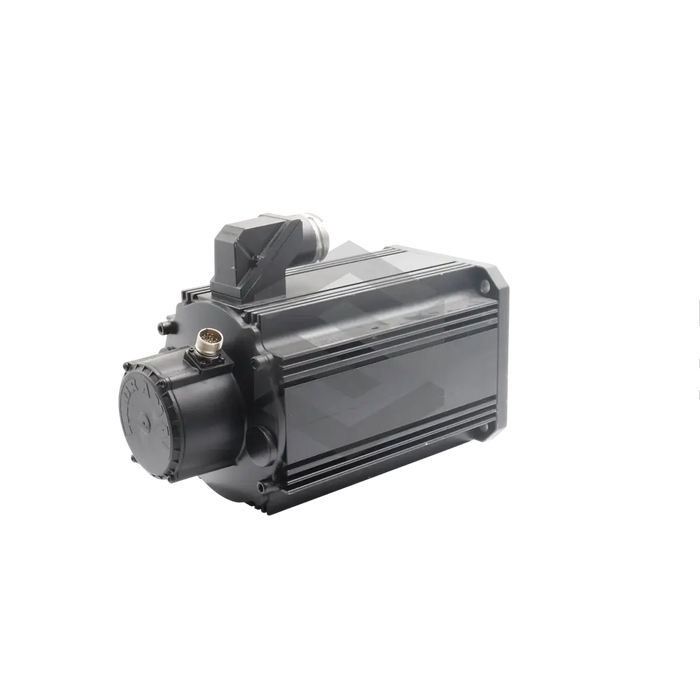

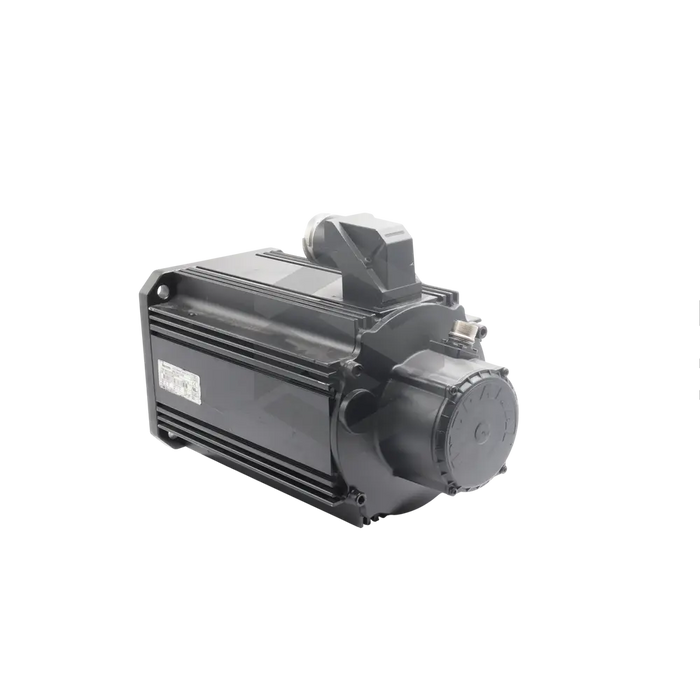

MKD112B-024-GP1-AN

Original price $18,130.07 - Original price $18,130.07
Original price
$18,130.07
$18,130.07 - $18,130.07
Current price $18,130.07
In Stock, Ships Today
Request a quote
The MKD112B-024-GP1-AN, manufactured by Indramat Bosch Rexroth, is a cutting-edge synchronous motor from the MKD series designed for applications such as machine tools, processing, and packaging. This cost-effective automation solution features special magnet materials that enable a low inertia mass design, and it has exceptional electrical communication abilities for uninterrupted data flow. The integrated encoder system of the motor controls its position and speed while also informing the drive controller. The MKD112B-024-GP1-AN specifications include a 112 frame size, 28.0Nm continuous torque at standstill, resolver motor feedback, and an output shaft with keyway and sealing ring for maximum efficiency without leakage. The motor also has a holding brake which activates at a voltage of 24VDC (+/_ 10%) and is ideal for clamping the servo axis when de-energized. With a maximum speed of 4,000rpm, a weight of approximately 23kgs, and a permissible operating altitude of up to 1000m and temperature range of 0 to 40 degrees Celsius, the MKD112B-024-GP1-AN ensures reliability and longevity with a peak current of 59.0A and IP 65 degree of protection.
30 Day Warranty
