MKD112B-048-GG1-BN

Original price $4,343.58 - Original price $4,343.58
Original price
$4,343.58
$4,343.58 - $4,343.58
Current price $4,343.58
In Stock, Ships Today
Request a quote

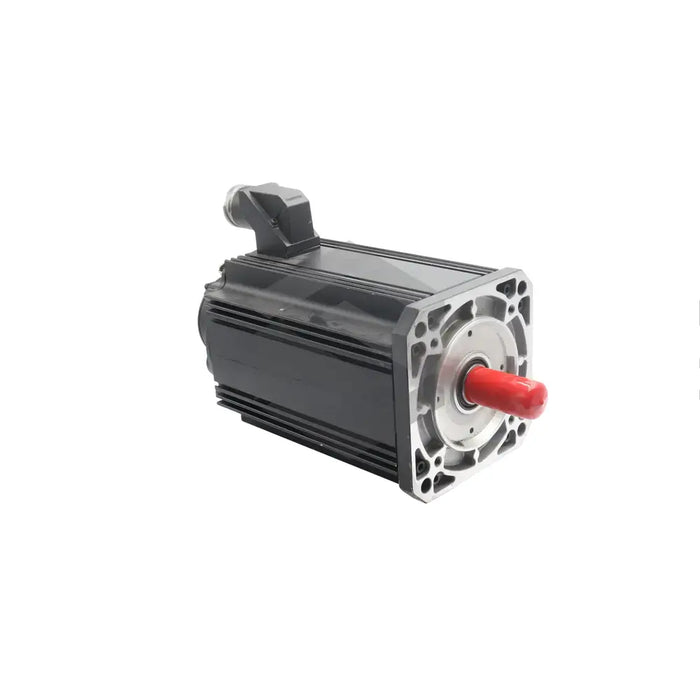

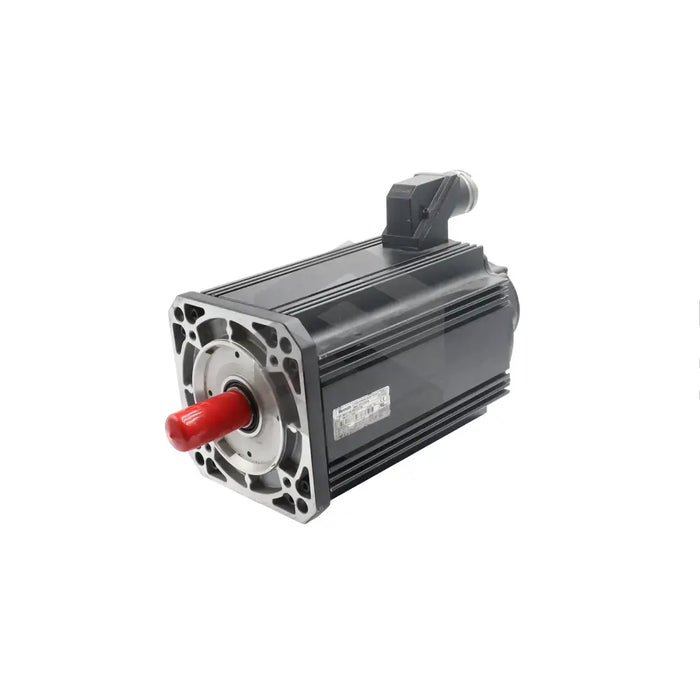

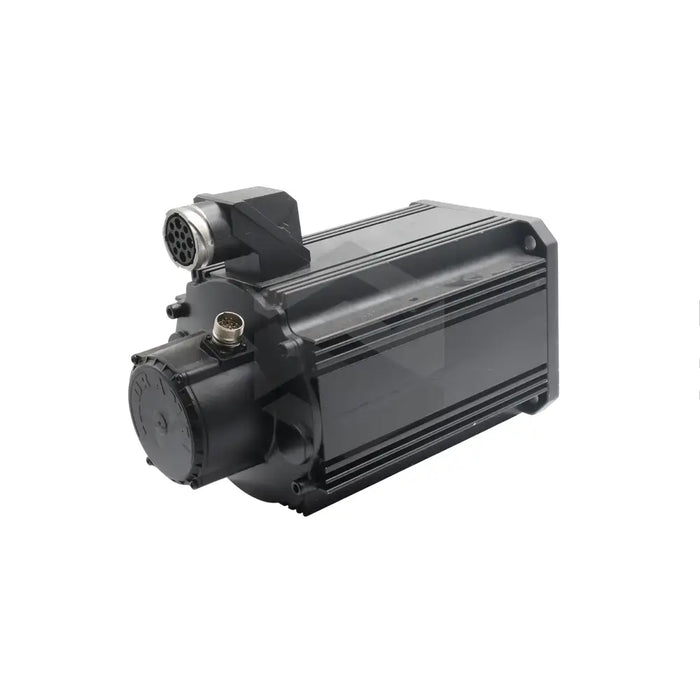

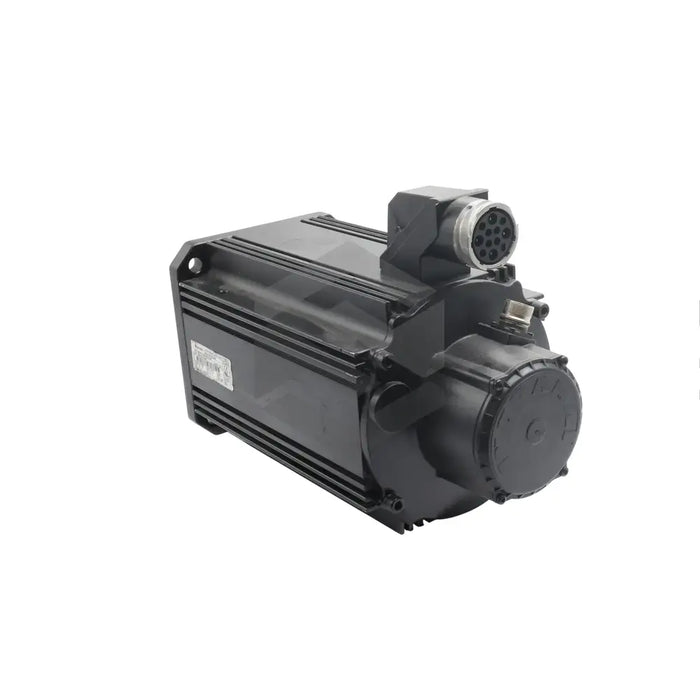

The MKD112B-048-GG1-BN servo synchronous motor, produced by Bosch Rexroth Indramat, is a size 112 motor from the MKD series with a B type length and a winding code of 48. It features a plain shaft with housing-sealed ends and a 22 Nm holding brake. The motor utilizes a resolver feedback system with an integrated multi-turn absolute encoder, an external power connector located on side B, and a natural surface cooling-type housing. With speeds up to 3500 rpm, a natural torque of 28.0 Nm and an IP65-level protection, it ensures both performance and safety. Weighing only 34 Kgs, this high-power, lightweight motor helps to achieve efficient automation systems.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Type: MKD112B-048-GG1-BN Servo Synchronous Motor
  • Design: MKD Series, Size 112 Motor, Length (B Type 28.0 Nm), Winding Code 48
  • Motor Details: Plain Shaft with Sealing Rings, Holding Brake 22 Nm, Resolver Feedback System with RSF and Multi-Turn Integrated Absolute Encoder
  • Housing Type: Natural Surface Cooling with External Power Connector Unit on Side B.
  • Over-Temperature Range: 60K/100K
  • Electric Parameters: Motor Speed 3500 rpm, Continuous Natural Torque 28.0 Nm
  • Speed Parameters: Rated Speed 2800 rpm, Maximum Speed 4500 rpm
  • Protection Category: IP65
  • Weight: 34 Kgs
  • Functionality: Wide, High Power to Inertia Mass Ratio, Peak Torque Utilization across Wide Range of Speed.
