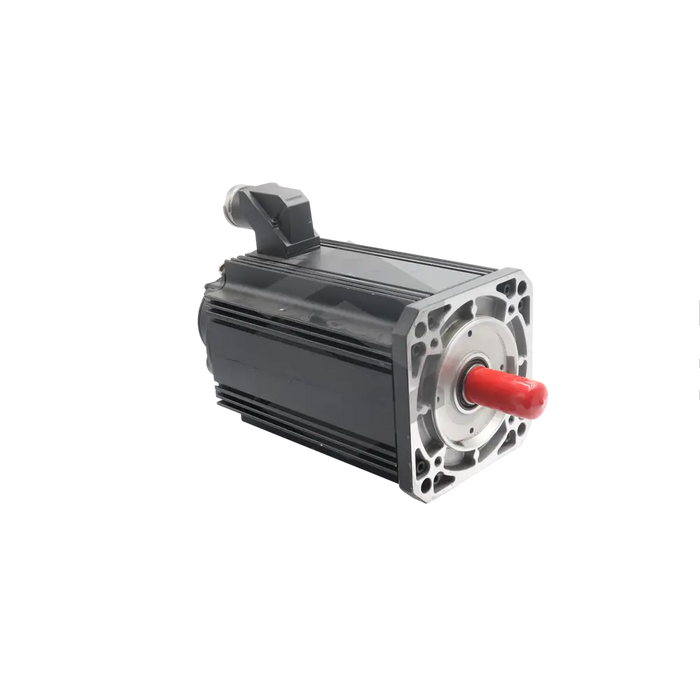

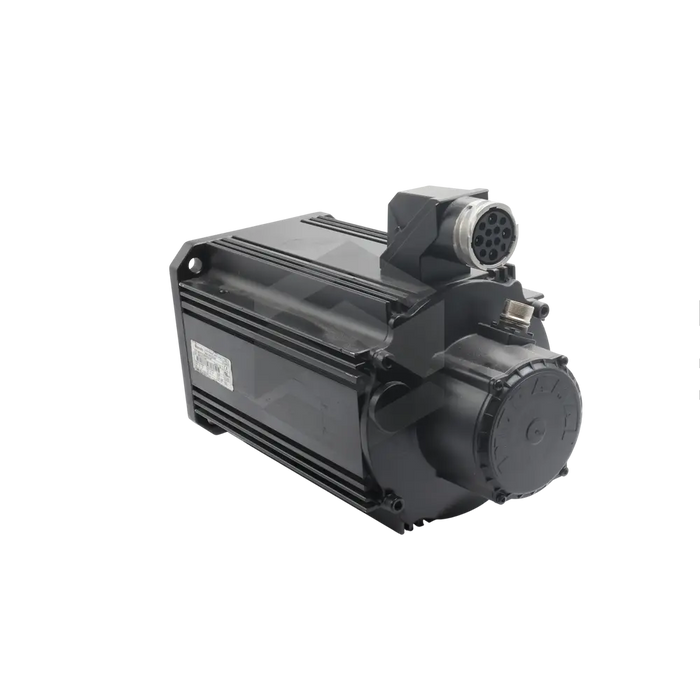

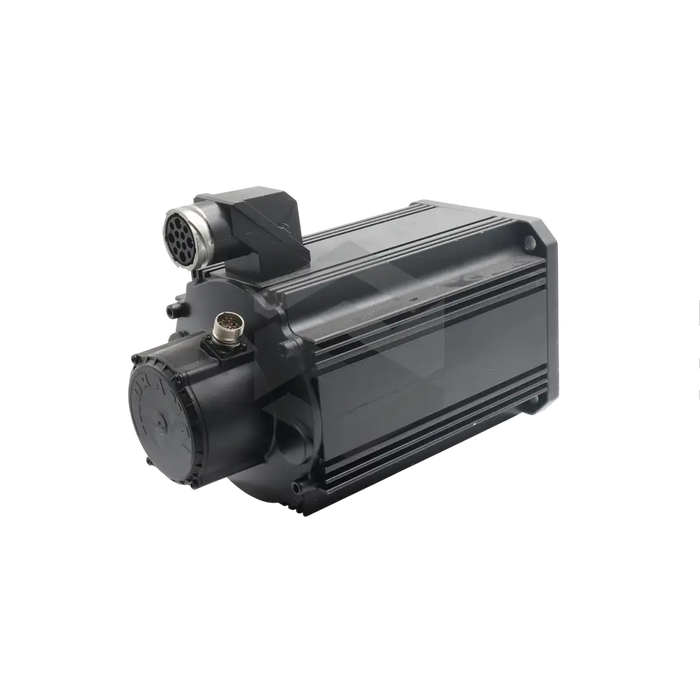

MKD112B-048-KG2-BN
The MKD112B-048-KG2-BN is a reliable and highly efficient synchronous motor manufactured by Rexroth Indramat. This versatile motor serves as a sustainable solution for main spindle or servo applications, promising maintenance-free operation within prescribed conditions. Operating within a temperature threshold of 0 to +40 degrees Celsius and a maximum altitude of 1000 meters, it ensures optimised performance. It utilizes an electrical connection via the drive controller and operates at a supply voltage of 227–251 V, with a rated frequency of 187 Hz. Featured with a winding code of 048 and a winding inductance of 3.1 mH, it delivers a constant torque of 0.88 Nm/A at 20 degrees Celsius with a winding resistance of 0.22 Ohm, and consist of four pole pairs. For cooling, it employs natural air, yielding a continuous torque of 28/33 Nm while consuming 35.6/43.5 A of continuous current with 60K/100K overtemperature. For heightened loads, it uses an axial/radial blower. Its plain shaft design includes a radial shaft sealing ring. The motor incorporates digital servo feedback and also features a holding brake. Safeguarded by an IP65 protection rating, the motor is globally distributed with a one-year warranty from Servo Supplier.
