MKD112B-058-GG0-AN

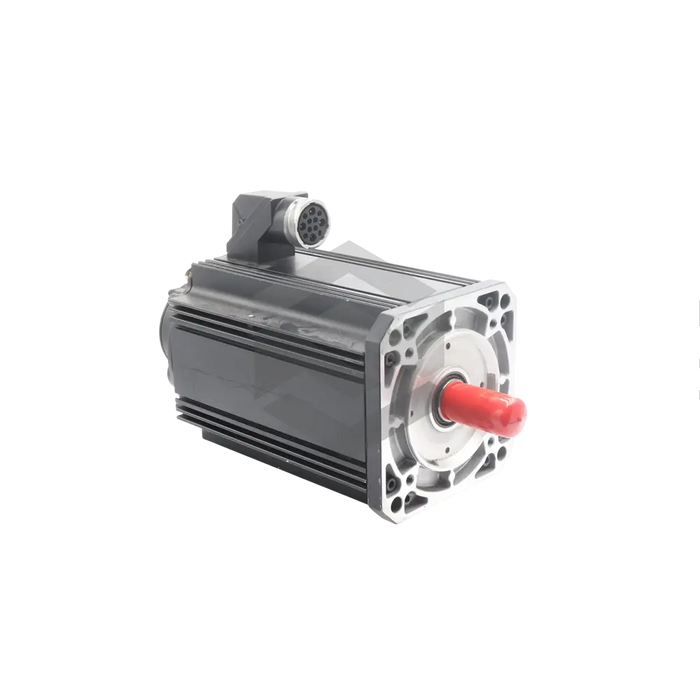

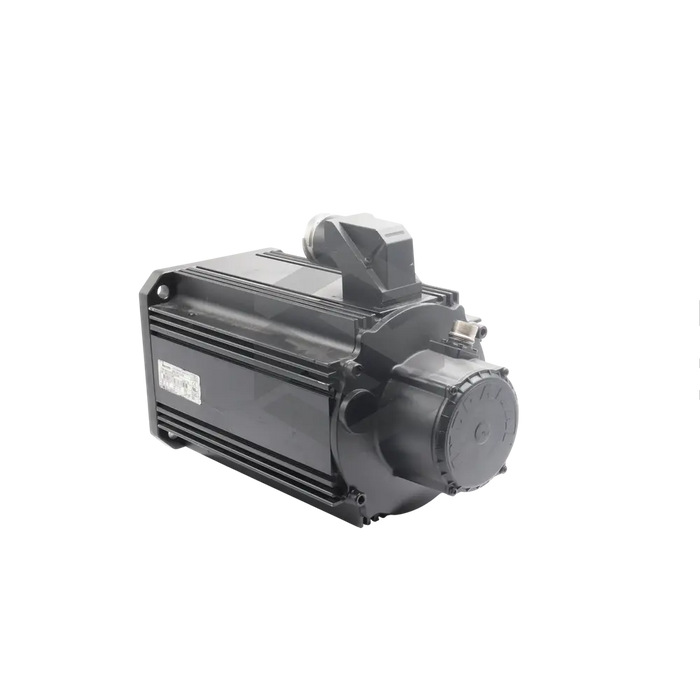

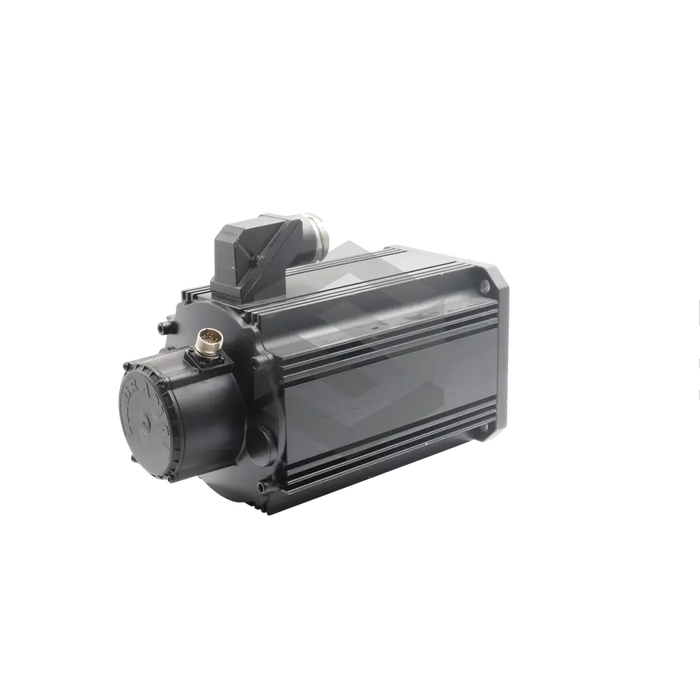

Introducing the MKD112B-058-GG0-AN AC synchronous motor by Rexroth, featuring a motor frame size of 112, a 192mm flange size, and frame length B, denoting a continuous torque of 28 Nm at standstill. With windings code 058, this motor is designed without a holding brake and utilizes a resolver motor feedback system for speed and position control. The plain output driving shaft and power connector on side A ensures easy installation. To maintain efficiency, the motor should be mounted in a dust-free and moist-free environment. Boasting a nominal speed of 4000 RPM, a peak current rating of 183A, a maximum torque of 102 Nm, and rotor inertia rated at 0.0192 kgm2, it ensures optimal performance. The motor can withstand temperatures between -20 to 80 oC during storage, has F-category insulation and ingress protection against dust and jet water. The electrical connections are plug-in, the thermal time constant is 90 minutes, and the winding resistance is 0.17 Ohm at 20 oC. Operating temperature range is 0 to 45 degrees C. The MKD112B-058-GG0-AN is available for global shipping with a one-year warranty from Servo Supplier.
