MKD112B-073-GP0-AN
Original price
$8,295.00
-
Original price
$8,295.00
Original price
$8,295.00
$8,295.00
-
$8,295.00
Current price
$8,295.00

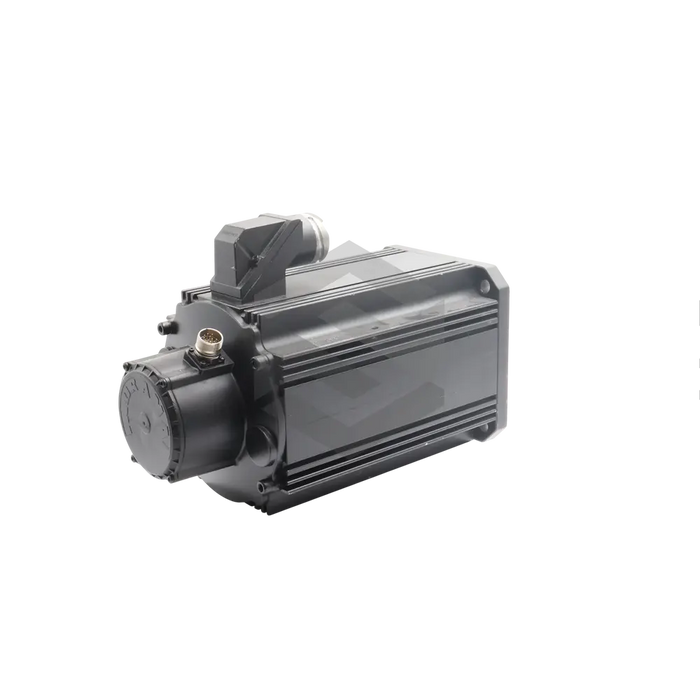

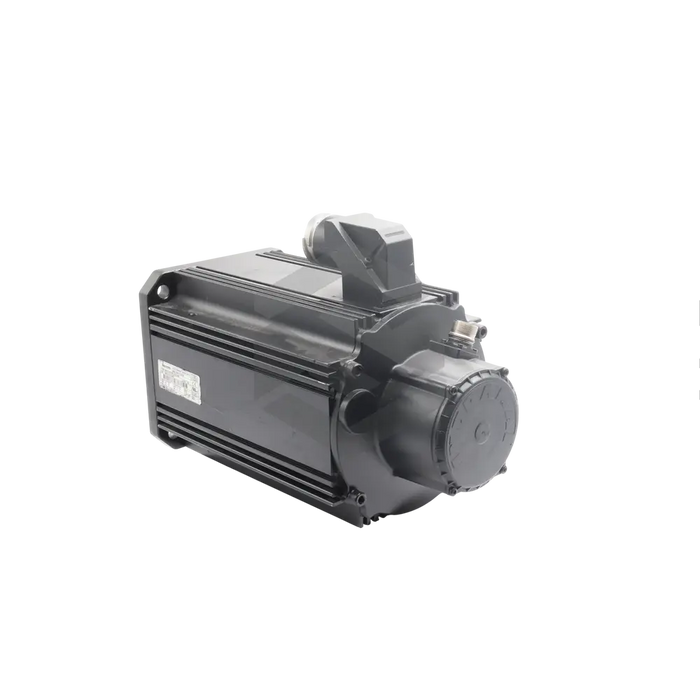

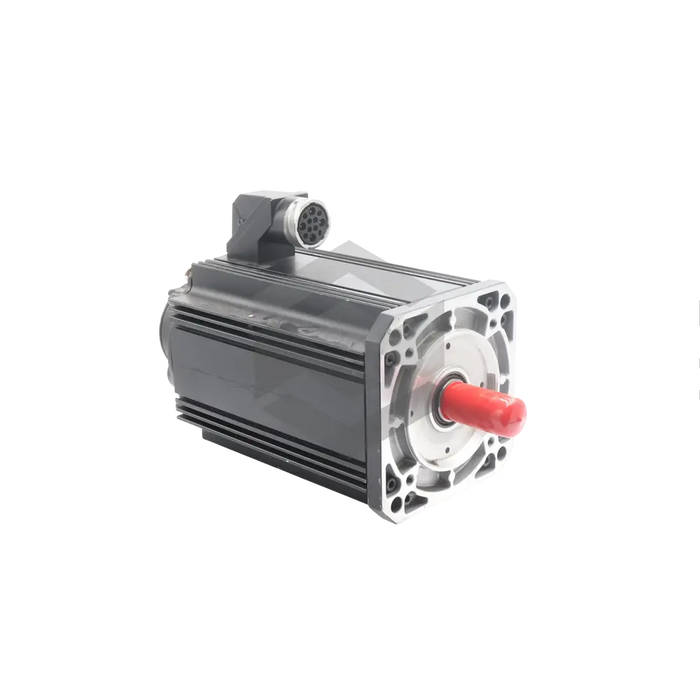

The Bosch Rexroth MKD112B-073-GP0-AN is a high-performance synchronous servo motor designed for use with Indramat controllers featuring a 300V rated DC bus. Fitted with an onboard resolver for feedback, this motor features a DIN 6885-1 compliant key and sealing ring on its shaft. The holding brake is available separately, if required. The motor has a 192mm flange size, a 130mm centering diameter, and a 28Nm torque rating at standstill. The MKD112B-073-GP0-AN provides detailed speed-torque curves, considering conditions such as overtemperature (60K and 100K), ambient temperature, and insulation structure. This motor has a prime black coat housing, insulation class F (DIN VDE 0530 Part 1), and an IP 65 protection category. Storage and operating temperature should be between -20 to 80°C and 0 to 40°C, respectively. The MKD112B-073-GP0-AN can be shipped worldwide and comes with a one-year warranty from Servo Supplier.
30 Day Warranty
