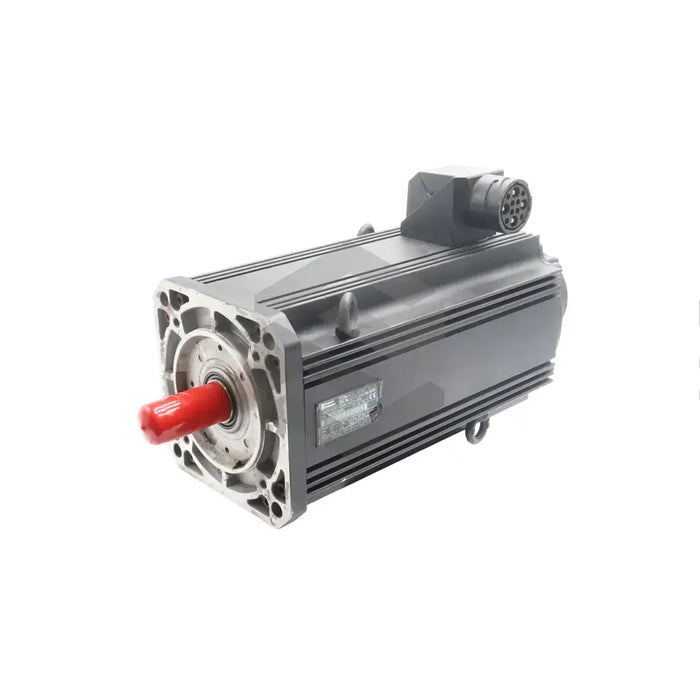

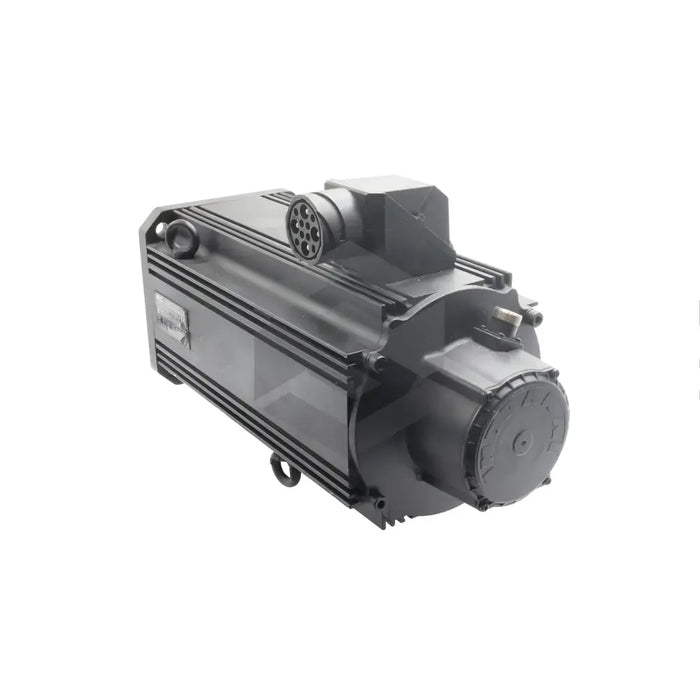

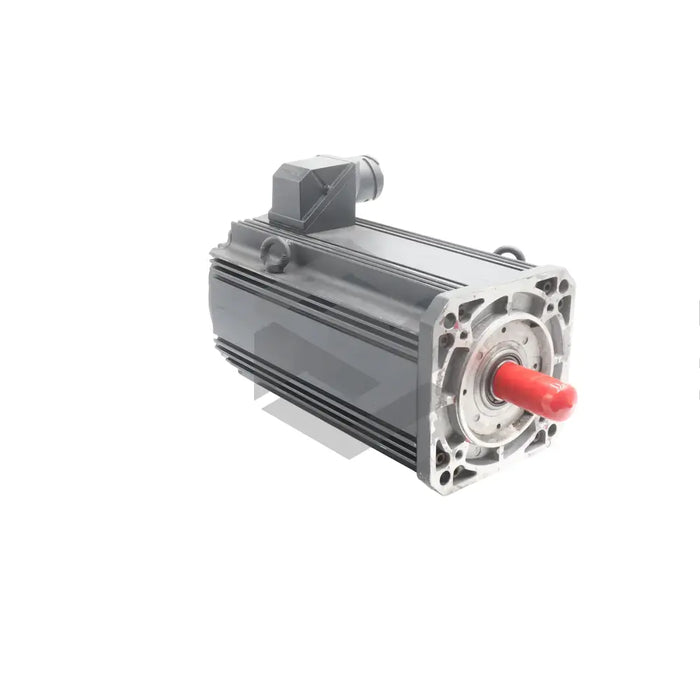

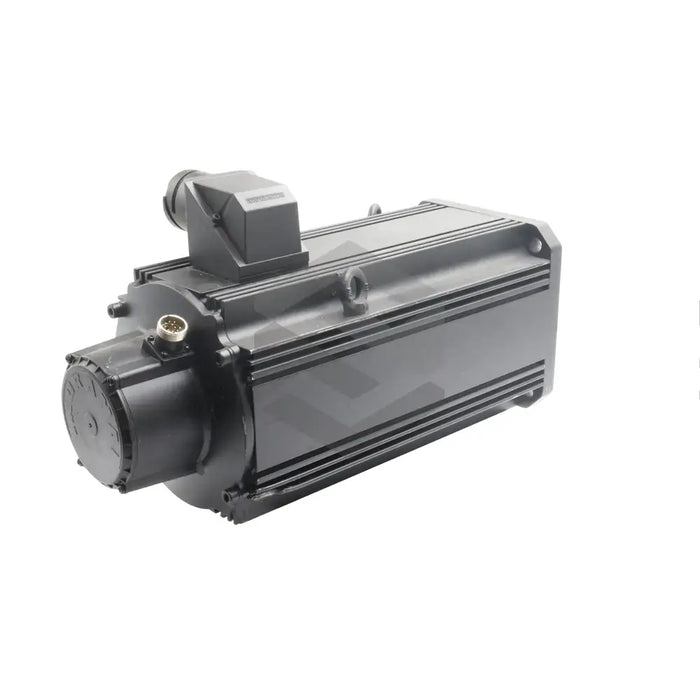

MKD112C-024-GG3-LN
The MKD112C-024-GG3-LN synchronous motor from Bosch Rexroth is designed for high operational reliability and is suitable for various industrial applications. With its electrical communication and continuous start-stop operation capabilities, this motor allows for high repeat frequencies. It features multiple mounting positions (IM B5, IM V1, and IM V3) and a radial shaft sealing ring made of FPM (Viton) to prevent oil leakage. The plain output shaft comes with a standard bearing that has approximately 30,000 operating hours of service life. The motor operates at a supply voltage of 372-404 V and generates a rated torque of 16.6-44.1 Nm at a continuous current of 8.2-21.8 A. Equipped with a fixed-mounted temperature sensor, the MKD112C-024-GG3-LN provides overload protection and offers a maximum torque of 148 Nm at the peak current of 120 A. The holding brake generates a holding torque of 70 Nm, and a digital resolver feedback is used for relative position detection. This motor operates within an ambient temperature range of 0 to +40 degrees Celsius and has an IP 65 protection standard for humid conditions. The total net weight of the motor and blower unit is approximately 46.2 kg, and a one-year warranty is provided upon global shipment by Servo Supplier.
