MKD112C-024-GP0-LN

Original price $20,945.79 - Original price $20,945.79
Original price
$20,945.79
$20,945.79 - $20,945.79
Current price $20,945.79
In Stock, Ships Today
Request a quote

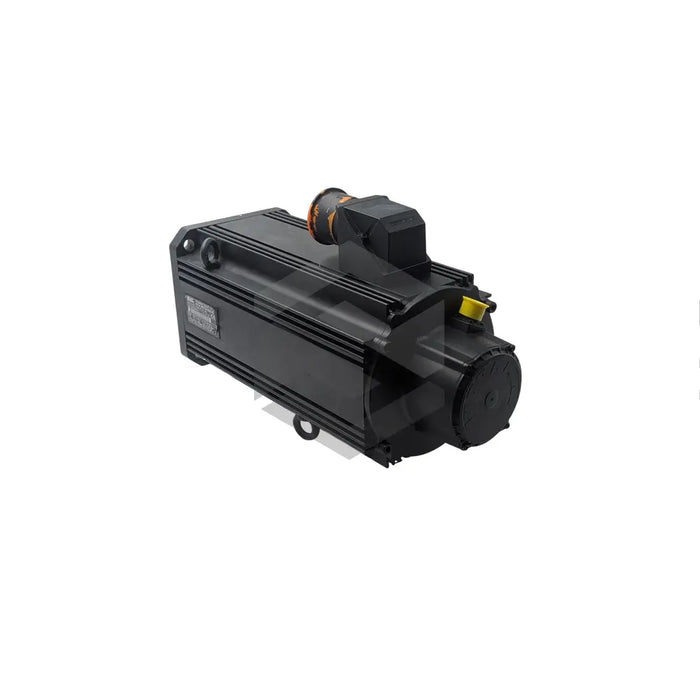

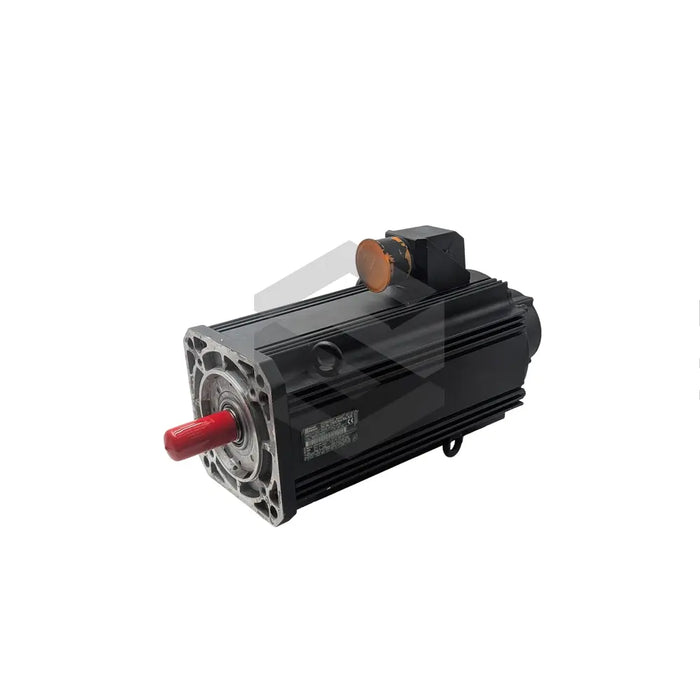

The MKD112C-024-GP0-LN is a high-quality synchronous motor designed for use in a wide range of industrial applications and delivers exceptional performance with high dynamics and precision. With a rated voltage of 372/404 V and operating frequency of 167 Hz, this motor has a frame size of 112, flange size of 192 mm, and centering diameter of 130 mm. Offering a constant torque of 1.6 Nm/A at 20 degrees Celsius and a motor winding resistance of 0.44 Ohm, this model does not feature a holding brake and has an output shaft balanced with the entire key. The shaft is capable of providing 5.2 - 14.1 kW continuous power at 2500 rpm. The MKD112C-024-GP0-LN motor employs ambient air cooling under normal conditions but offers an optional blower unit for extreme loads. With IP 65 protection, it can operate at temperatures up to 40 degrees Celsius without derating. Additionally, this motor features digital resolver feedback and class F insulation. Servo Supplier ships this product globally and provides a one-year warranty.
