MKD112C-024-KP0-LN

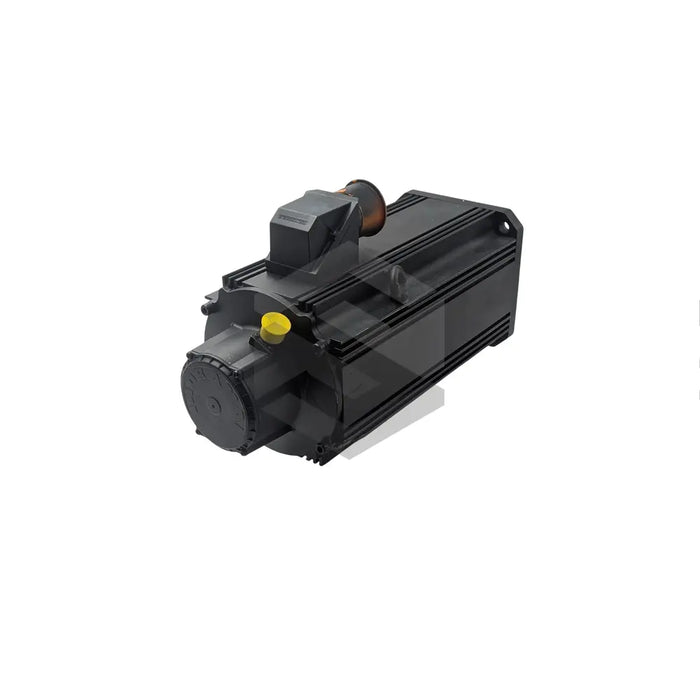

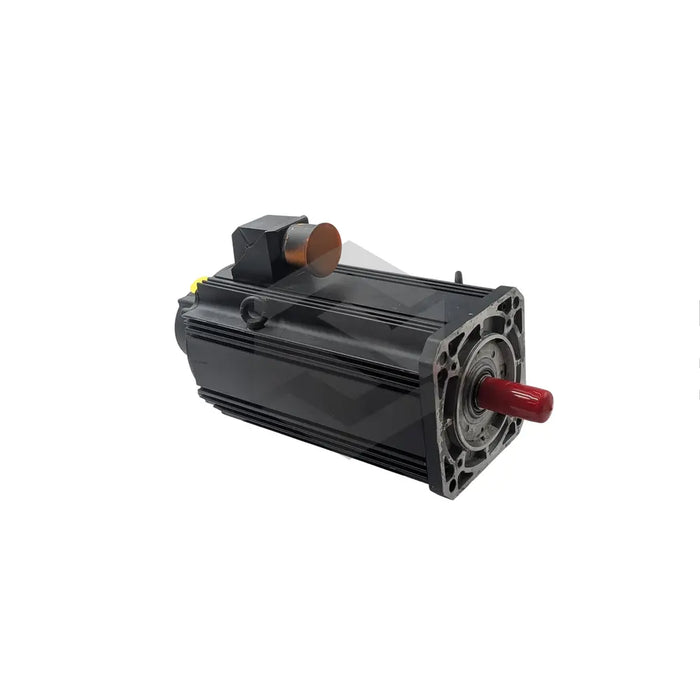

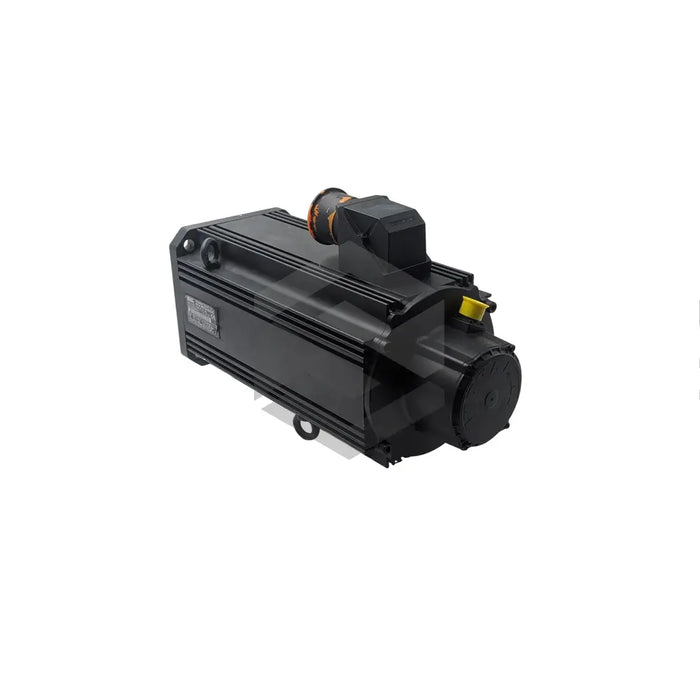

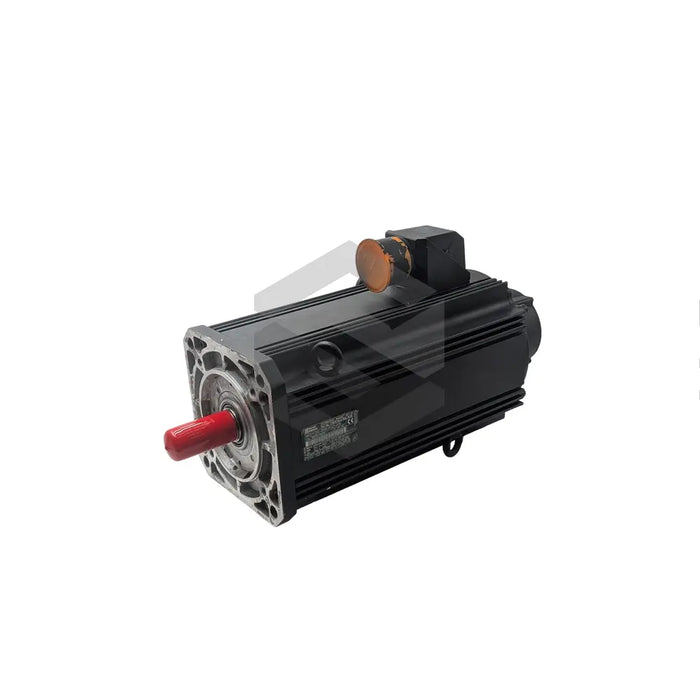

The MKD112C-024-KP0-LN Bosch Rexroth synchronous motor is designed to be combined with either GTS or GTP series planetary bearings, known for their low-weight, minimal-play, and high torsional strength features. The motor is equipped with an encoder connection and a power connector that includes a holding brake and temperature sensor connection, although connection plugs and cables are not included. Possessing four pole pairs, the power connector's output direction is towards the device's left side. Its functional design supports any installation position, conforming to a height of 1,000m above sea level, and requires shock-decoupled loads only. The motor casing is finished with a RAL 9005 black prime coat. The device operates under specific conditions, with its radial shaft sealing ring based on DIN 3760 specifications, and it employs chemically resistant, oil-resistant materials. This Bosch Rexroth motor, offering a one-year warranty, is engineered to handle both axial and radial forces on the shaft and bearings with a rated frequency of 167Hz. The service life for bearings is 30,000 operating hours as per ISO 281 specifications. The motor is also capable of worldwide shipping.
