MKD112C-024-KP3-BN

Original price $16,150.00 - Original price $16,150.00
Original price
$16,150.00
$16,150.00 - $16,150.00
Current price $16,150.00
In Stock, Ships Today
Request a quote

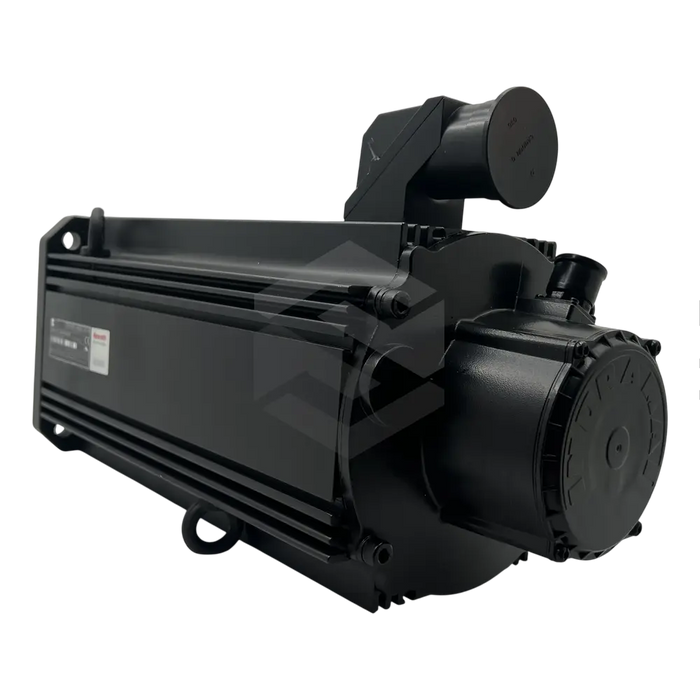

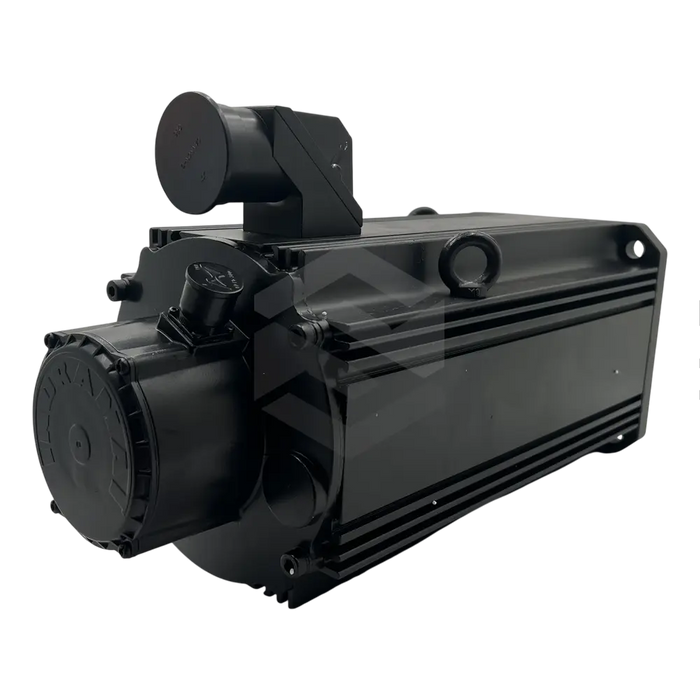

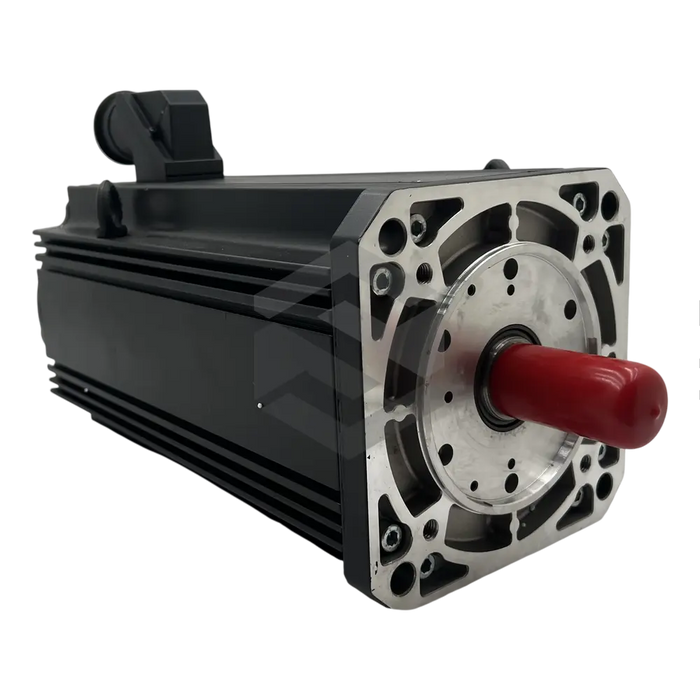

The MKD112C-024-KP3-BN motor is a highly efficient servo motor developed by Bosch Rexroth, well-known for their exceptional engineering products. Featuring a speed range of 2,000 RPM to 4,000 RPM, this motor delivers a torque of 43.5Nm at 100K motor overtemperature. It has a winding code of 024 and a flange size of 192mm. The MKD112C series motors have a centering diameter of 130mm and a motor frame length of 38Nm. Equipped with a built-in resolver feedback and an integrated multi-turn absolute encoder, it accurately detects position within 4096 mechanical rotations for precise speed adjustment. The motor utilizes a shaft with a keyway and an output connector on the B" side which can be changed during the setup process. The motor also features a reliable holding brake designed to clamp the servo axis when the motor is not energized operating on an electrical release principle."
30 Day Warranty
