MKD112C-058-GG3-BN
Original price
$2,876.35
-
Original price
$2,876.35
Original price
$2,876.35
$2,876.35
-
$2,876.35
Current price
$2,876.35

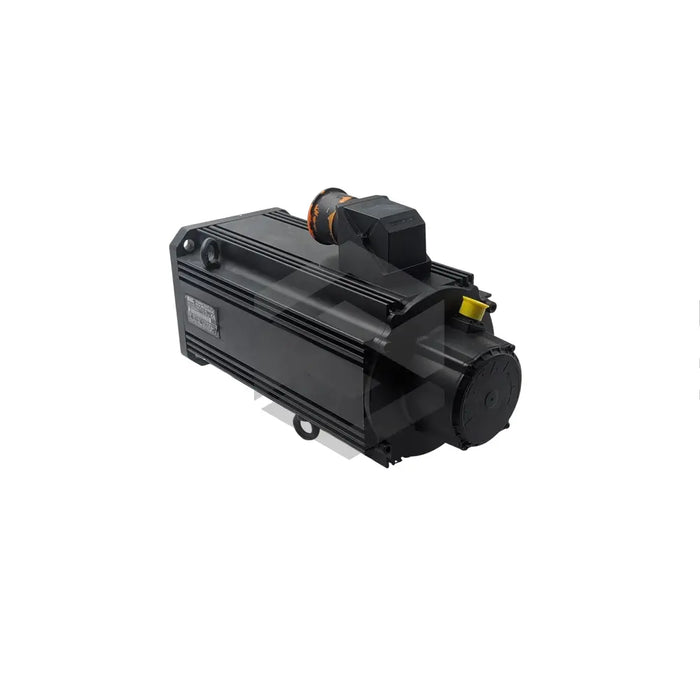

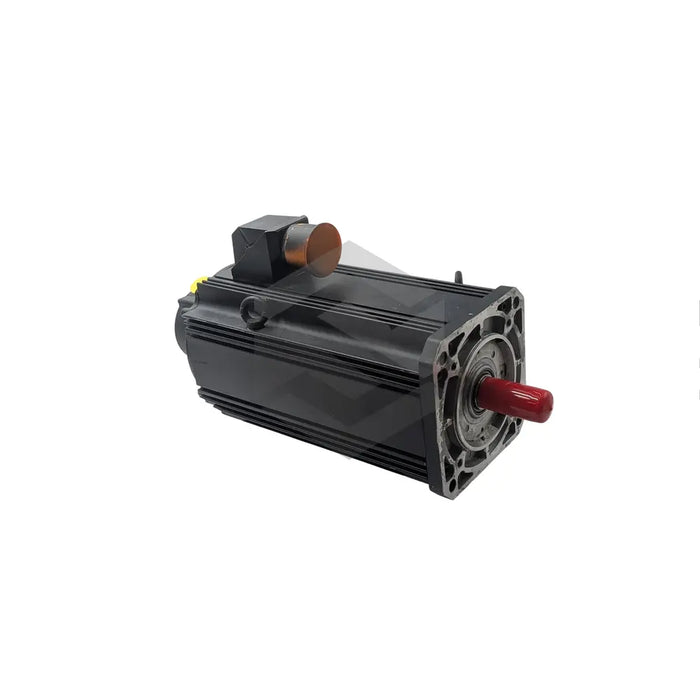

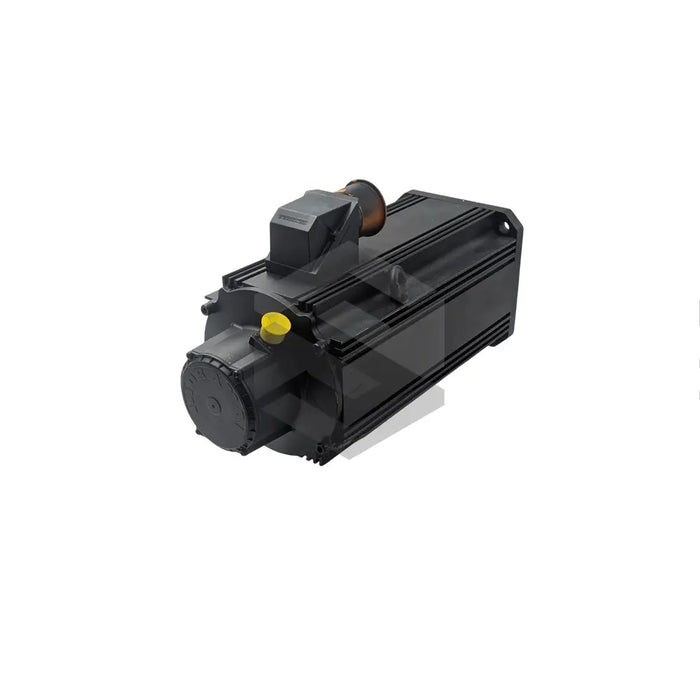

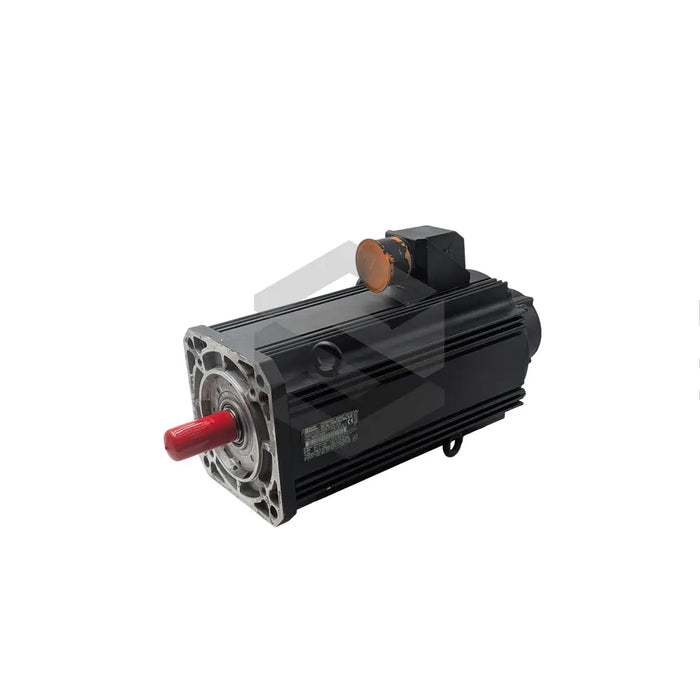

The Bosch Rexroth MKD112C-058-GG3-BN synchronous motor features a 192mm flange size, 130mm centering diameter, and a continuous torque at standstill of 38 Nm. This motor comes with integrated resolver feedback, a 70 Nm rated holding brake, and a power connector located on side B. With a plain shaft and four pole pairs, the MKD112C-058-GG3-BN has a characteristic speed of 4000 RPM, with a rated speed depending on the housing temperature (2000 RPM at 60K overtemperature and 3500 RPM at 100K overtemperature). Its theoretical maximum torque is 148 Nm, and its rated torque ranges from 15.3 Nm to 16.9 Nm, depending on overtemperature. The motor weighs approximately 45 kg and should be operated in an ambient temperature range of 0-40°C. Additionally, trained personnel should be responsible for installation, and the unit can be shipped globally with a one-year warranty from Servo Supplier.
