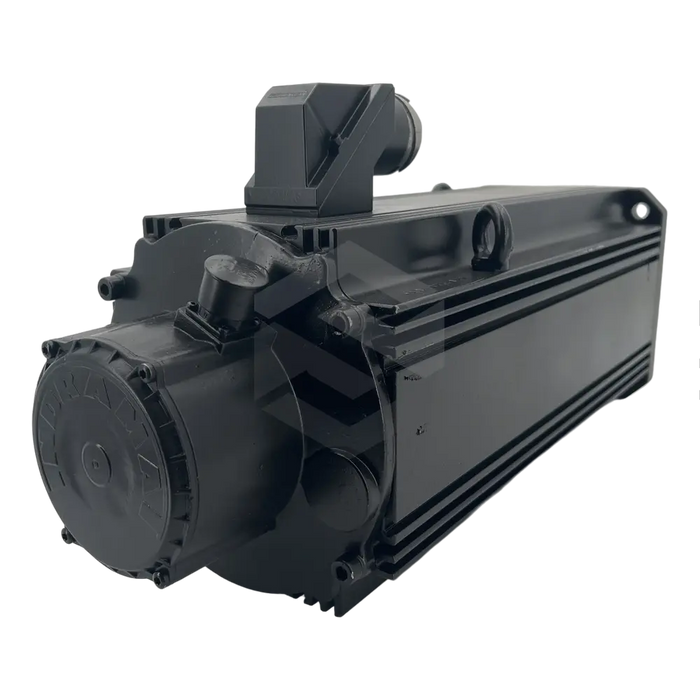

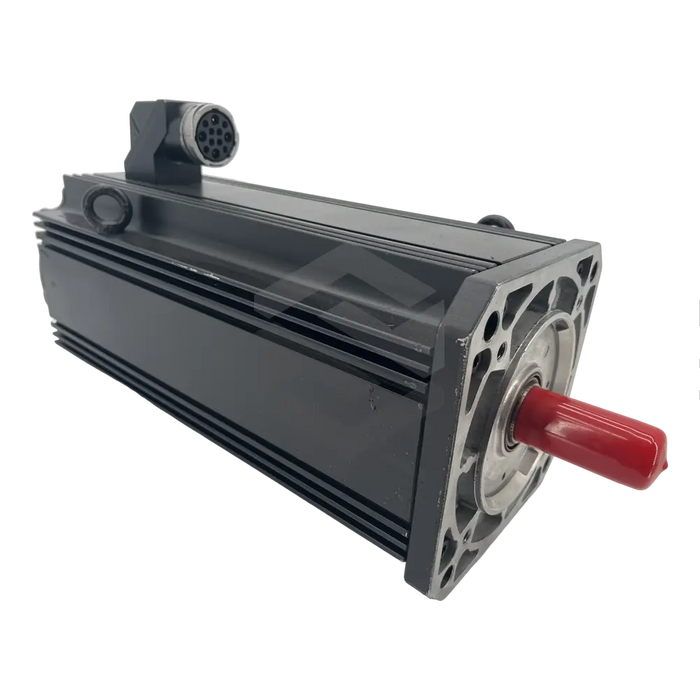

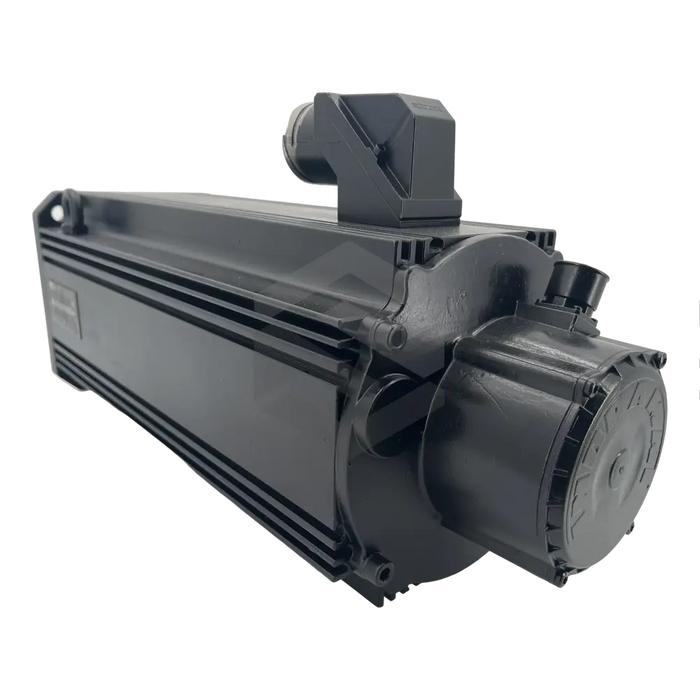

MKD112D-024-GG0-AN
The MKD112D-024-GG0-AN is a high-performance AC synchronous motor designed by Bosch Rexroth, featuring a weight of 45 kg and a characteristic speed of 3,000 revs/min. Equipped with four pole pairs, this motor has a winding inductance rating of 5.65 mH and a rated speed of 2,000 revs/min. It boasts a highest attainable current of 142.2 Amps. Depending on the cooling method and operation level, continuous torque ranges from 48 Nm at 60K to 57 Nm at 100K, with a maximum torque of 187 Nm. The servo motor operates within an environmental temperature range of 0-40 oC and has a protection category of IP 65, safeguarding against dust, shock, and water. With a thermal time constant of 90 mins for both 60K and 100K operations, the MKD112D-024-GG0-AN is suitable for installation at a maximum height of 1000 meters above sea level and adheres to insulation class F as per DIN VDE 0530 - part 1. Every unit ships with a one-year global warranty from Servo Supplier.
30 Day Warranty
