MKD112D-027-KG3-AN
Original price
$5,500.00
-
Original price
$5,500.00
Original price
$5,500.00
$5,500.00
-
$5,500.00
Current price
$5,500.00

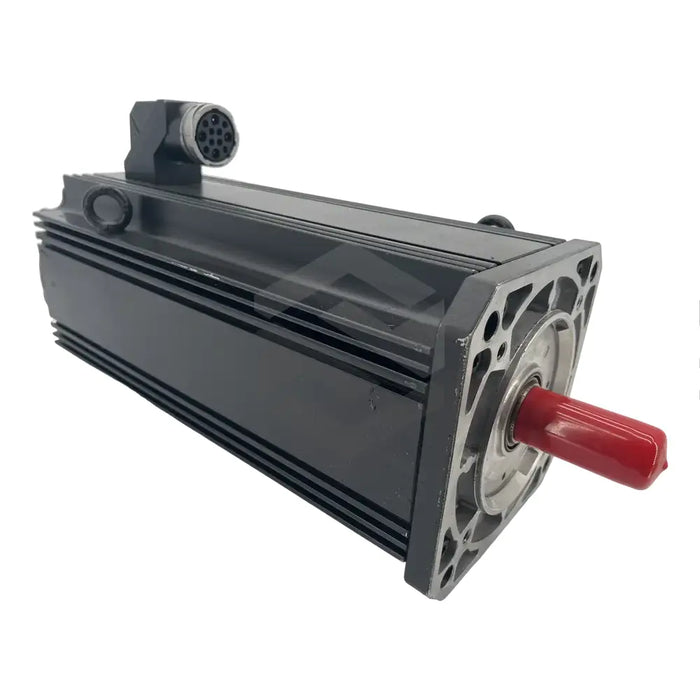

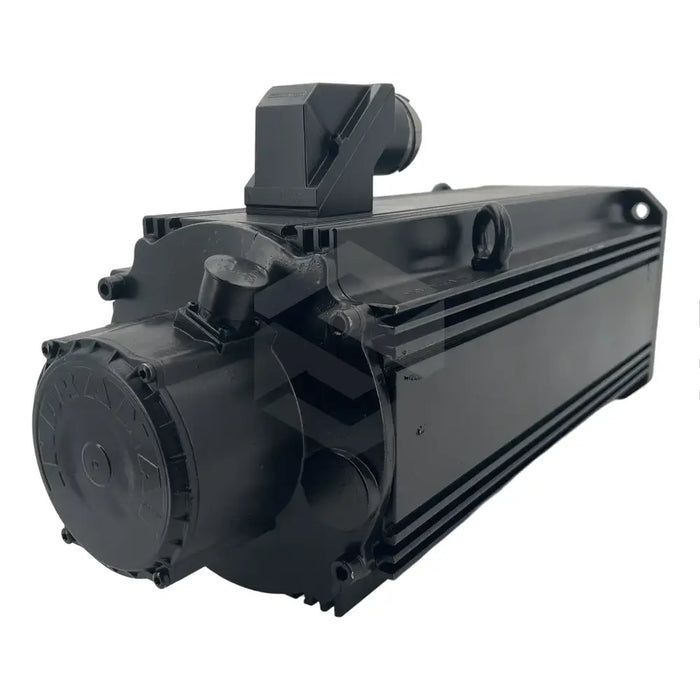

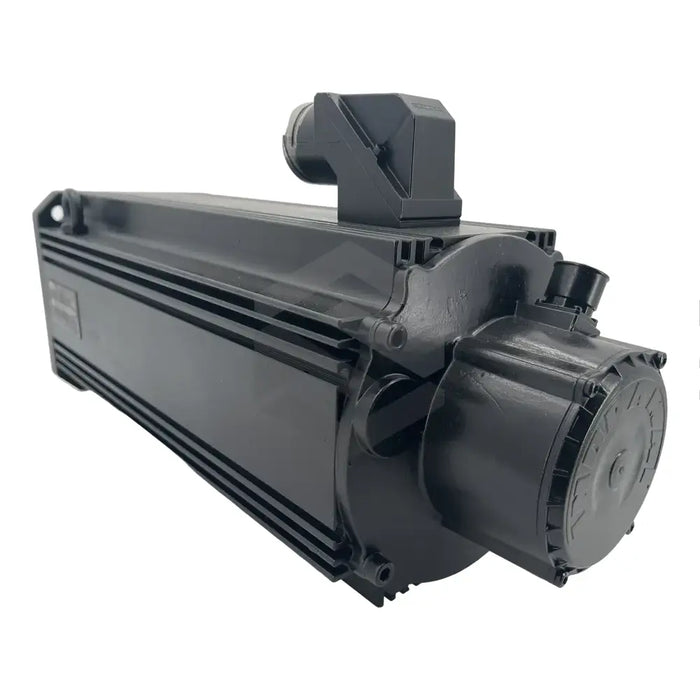

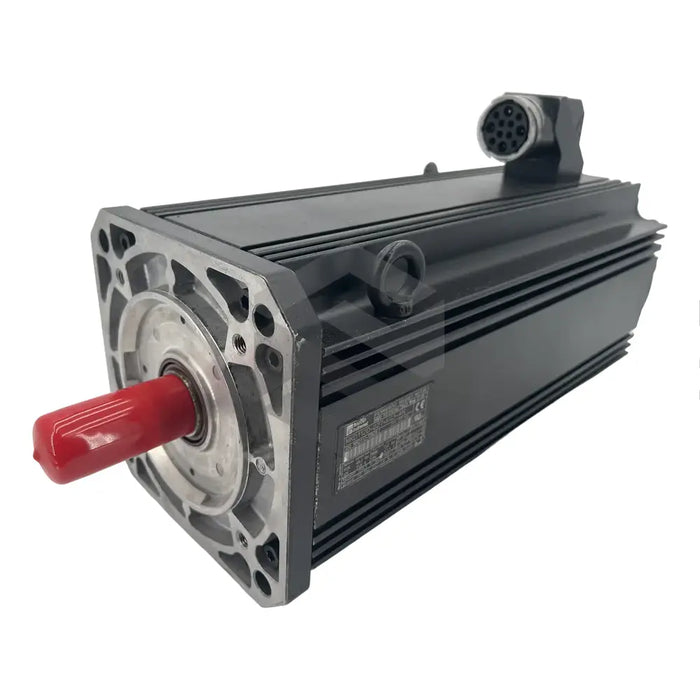

The MKD112D-027-KG3-AN is a high-performance AC motor designed by Bosch Rexroth, providing optimal performance under specific ambient conditions including operating and storage temperatures of 0-40 degrees and -20-80 degrees Celsius, respectively, and an installation elevation of up to 1000 meters above sea level. Weighing 56.0kg, this motor features a maximum speed of 3000rpm, a theoretical maximum torque of 187Nm, a continuous torque and current at standstill of 72.0Nm and 47.4A, a peak current of 142.2A, and winding inductance of 5.65mH. It boasts a rated power of 15.2kW, speed of 2000min-1, torque of 59.2Nm, and current of 27.6A. The MKD112D-027-KG3-AN offers compatibility with GTS or GTP planetary gearings, as well as Worm gears 058, enabling high operational reliability and performance. The motor can be mounted in three orientations (IM B5, IM V1, and IM V3) and features prime coated housing that offers resistance to acids, diluted lyes, chalking, coloring, and weather. For optimal transportation and storage, provide shock-absorbing supports and store in a dry, dust-free environment. Purchase includes a one-year warranty from Servo Supplier.
